MB9BF412RPMC-G-JNE2 Datasheet(PDF) 106 Page - Cypress Semiconductor

Part # MB9BF412RPMC-G-JNE2
Description  32-bit Arm짰 Cortex짰-M3 FM3 Microcontroller
PDF  112 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  CYPRESS [Cypress Semiconductor]
Direct Link  http://www.cypress.com
Logo CYPRESS - Cypress Semiconductor

MB9BF412RPMC-G-JNE2 Datasheet(HTML) 106 Page - Cypress Semiconductor

Back Button MB9BF412RPMC-G-JNE2 Datasheet HTML 102Page - Cypress Semiconductor MB9BF412RPMC-G-JNE2 Datasheet HTML 103Page - Cypress Semiconductor MB9BF412RPMC-G-JNE2 Datasheet HTML 104Page - Cypress Semiconductor MB9BF412RPMC-G-JNE2 Datasheet HTML 105Page - Cypress Semiconductor MB9BF412RPMC-G-JNE2 Datasheet HTML 106Page - Cypress Semiconductor MB9BF412RPMC-G-JNE2 Datasheet HTML 107Page - Cypress Semiconductor MB9BF412RPMC-G-JNE2 Datasheet HTML 108Page - Cypress Semiconductor MB9BF412RPMC-G-JNE2 Datasheet HTML 109Page - Cypress Semiconductor MB9BF412RPMC-G-JNE2 Datasheet HTML 110Page - Cypress Semiconductor Next Button
Zoom Inzoom in Zoom Outzoom out
 106 / 112 page
background image
Document Number: 002-05615 Rev. *D
Page
106 of 112
MB9B410R Series
Package Type
Package Code
LQFP 120
LQM120
MIN. NOM. MAX.
0
7
.
1
A
A1
0.05
0.15
b
0.17
0.22
0.27
c
0.115
0.195
D
18.00 BSC
D1
16.00 BSC
e
0.50 BSC
E
E1
L
0.45
0.60
0.75
18.00 BSC
16.00 BSC
DIMENSIONS
SYMBOL
0
8
SIDE VIEW
BOTTOM VIEW
TOP VIEW
1
120
D1
D
e
E
E1
0.20 C A-B D
0.10 C A-B D
0.08
C A-B
D
b
0.08 C
SEATI NG
PLA NE
A
A'
A
A1
0.25
10
L
b
SEC TION A -A'
c
9
4
5 7
3
4
5
7
3
8
7
5
2
2
6
30
31
60
61
90
91
1
30
31
60
0
9
1
6
91

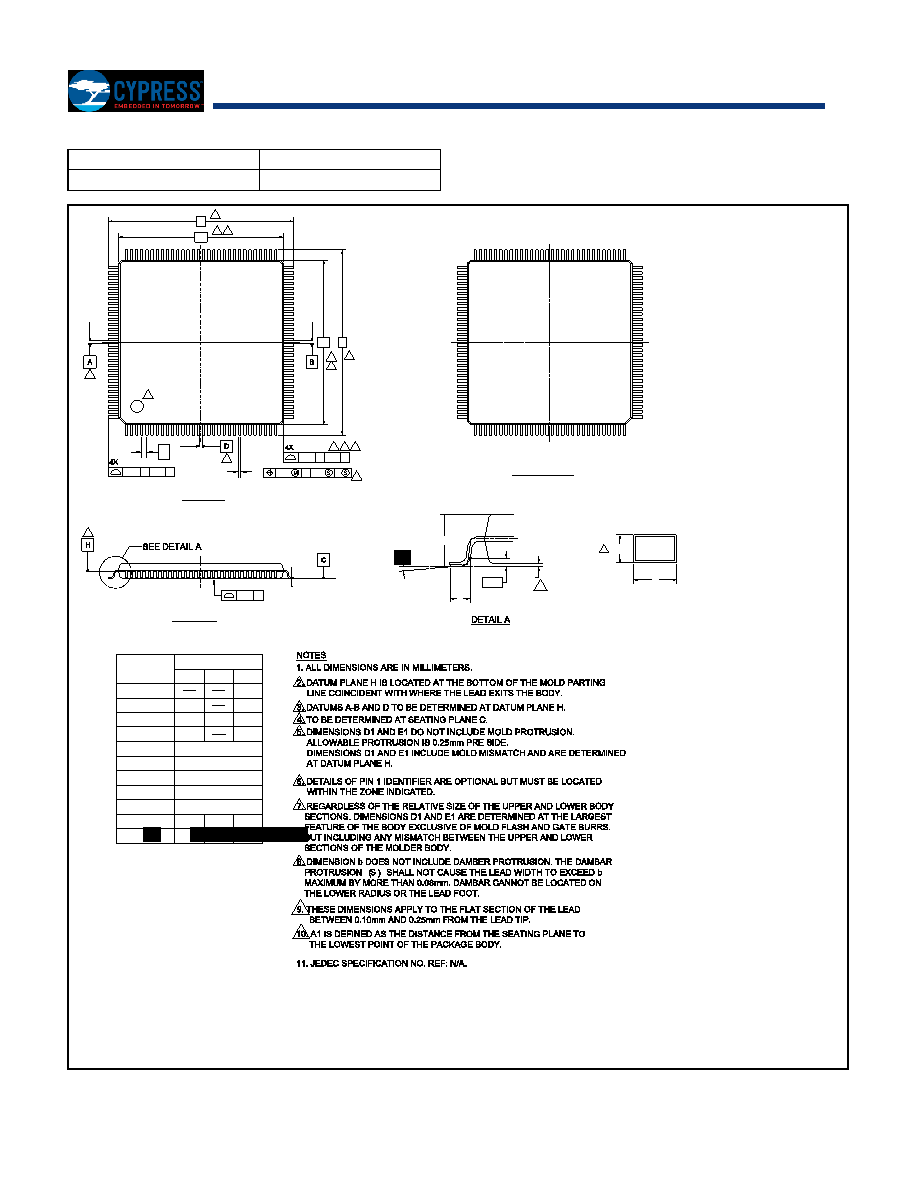

PACKAGE OUTLINE, 120 LEAD LQFP
18.0X18.0X1.7 MM LQM120 REV**
002-16172 **
