STM32L412xx

Electrical characteristics

164

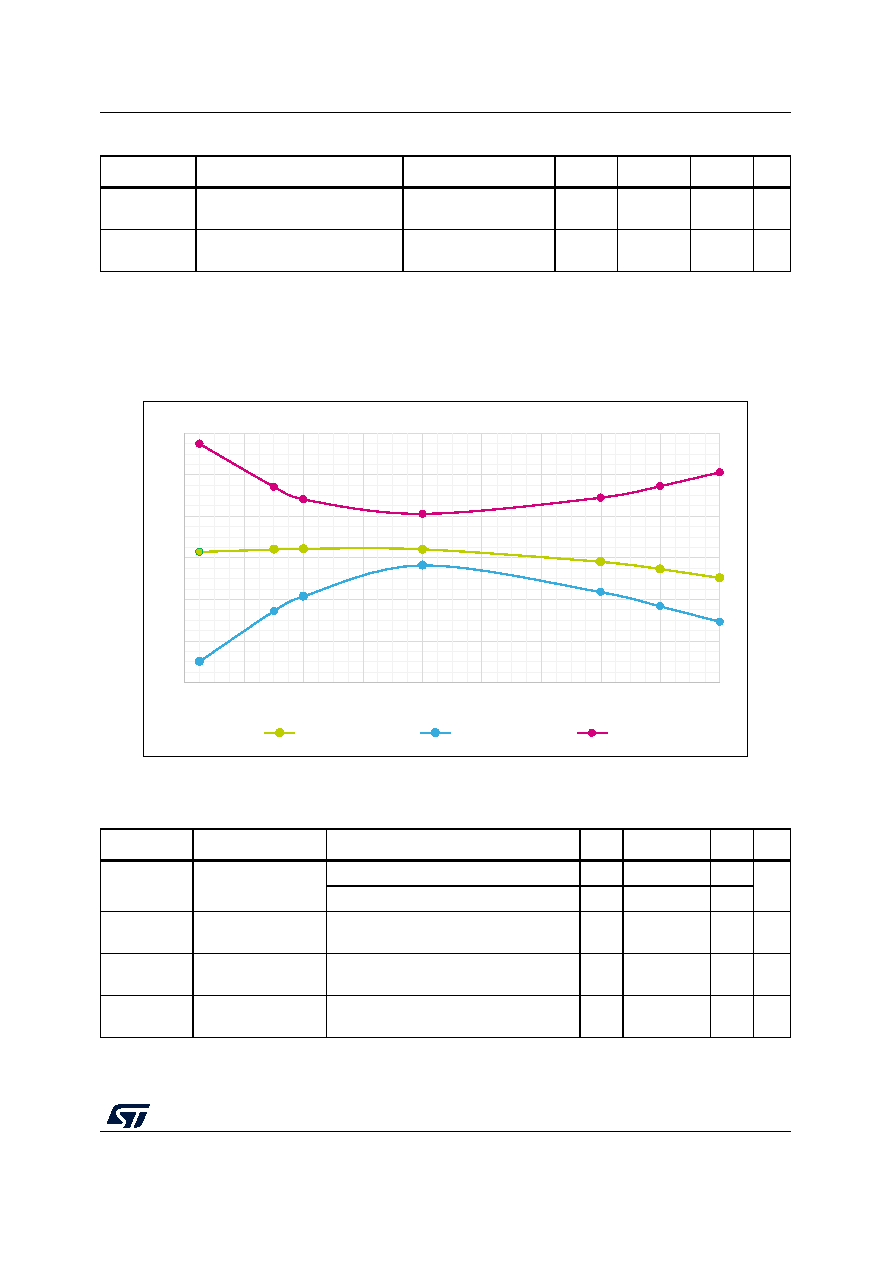

Figure 27. HSI48 frequency versus temperature

Low-speed internal (LSI) RC oscillator

NT jitter

Next transition jitter

Accumulated jitter on 28 cycles(4)

+/-0.15(2)

-ns

PT jitter

Paired transition jitter

Accumulated jitter on 56 cycles(4)

+/-0.25(2)

-ns

1. VDD = 3 V, TA = –40 to 125°C unless otherwise specified.

2. Guaranteed by design.

3. Guaranteed by characterization results.

4. Jitter measurement are performed without clock source activated in parallel.

Table 59. HSI48 oscillator characteristics(1) (continued)

Symbol

Parameter

Conditions

Min

Typ

Max

Unit

MSv40989V1

-6

-4

-2

-50

-30

-10

110

130

Avg

min

max

°C

Table 60. LSI oscillator characteristics(1)

Symbol

Parameter

Conditions

Min

Typ

Max Unit

fLSI

LSI Frequency

VDD = 3.0 V, TA = 30 °C

31.04

32.96

kHz

VDD = 1.62 to 3.6 V, TA = -40 to 125 °C

29.5

tSU(LSI)(2)

LSI oscillator start-

up time

130

μs

tSTAB(LSI)(2)

LSI oscillator

stabilization time

5% of final frequency

125

180

μs

IDD(LSI)(2)

LSI oscillator power

consumption

110

180

1. Guaranteed by characterization results.

2. Guaranteed by design.
