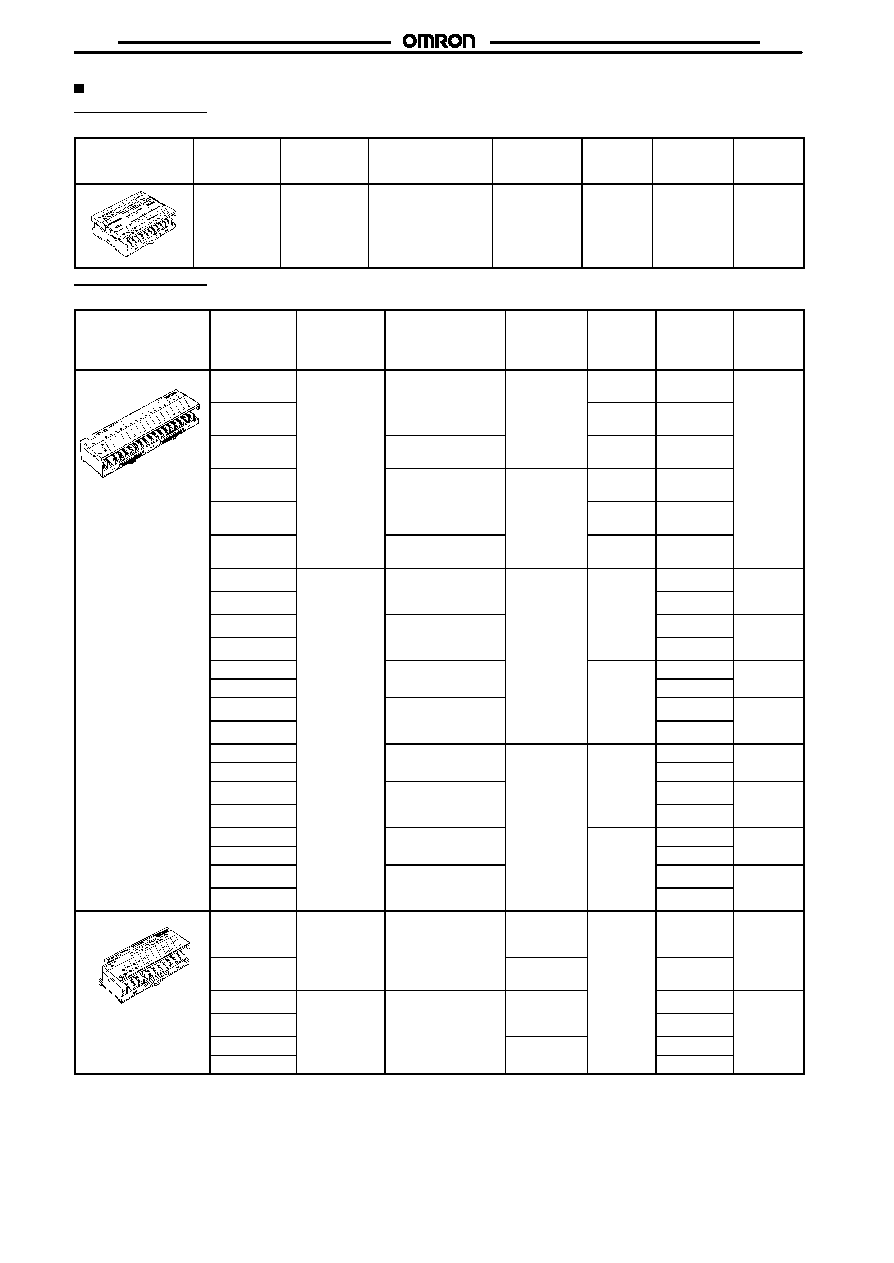

116 / 121 page  B7A B7A 114 Product List 32-point Terminals Screw Terminal Models Appearance Model I/O classification I/O configuration I/O delay time (typical) Internal I/O common Error processing (see note 1) Approved standards B7AS-T3BS Input NPN compatible Normal speed 19.2 ms High speed 3 ms (switch selectable) +/– common --- U, CU, CE 16-point Terminals Screw Terminal Models Appearance Model I/O classification I/O configuration I/O delay time (typical) Internal I/O common Error processing (see note 1) Approved standards B7A-T6A1 (see note 2) Input NPN compatible Normal speed 19 2 – common --- U, C, CE B7A-T6B1 (see note 2) 19.2 ms +/– common --- B7A-T6C1 PNP compatible +/– common --- B7A-T6A6 (see note 2) NPN compatible High speed 3 ms – common --- B7A-T6B6 (see note 2) +/– common --- B7A-T6C6 PNP compatible +/– common --- B7A-R6B11 Output NPN open collector 100 mA/point Normal speed + common HOLD U, C, CE B7A-R6B31 100 mA/point speed 19.2 ms LOAD OFF B7A-R6C11 NPN open collector 500 mA/point (see HOLD CE B7A-R6C31 500 mA/point (see note 3) LOAD OFF B7A-R6F11 PNP open collector 100 A/ i t – common HOLD U, C, CE B7A-R6F31 o e co ec o 100 mA/point LOAD OFF U, C, C B7A-R6G11 PNP open collector 500 mA/point (see HOLD CE B7A-R6G31 500 mA/point (see note 4) LOAD OFF B7A-R6B16 NPN open collector 100 A/ i t High speed 3 + common HOLD U, C, CE B7A-R6B36 o e co ec o 100 mA/point g s eed 3 ms LOAD OFF U, C, C B7A-R6C16 NPN open collector 500 mA/point (see HOLD CE B7A-R6C36 500 mA/point (see note 3) LOAD OFF B7A-R6F16 PNP open collector 100 A/ i t – common HOLD U, C, CE B7A-R6F36 o e co ec o 100 mA/point LOAD OFF U, C, C B7A-R6G16 PNP open collector 500 mA/point (see HOLD CE B7A-R6G36 500 mA/point (see note 4) LOAD OFF B7AS-T6B1 Input NPN compatible Normal speed 19.2 ms +/– common --- U, CU, CE B7AS-T6B6 High speed 3 ms --- B7AS-R6B11 Output NPN open collector 100 mA/point Normal speed HOLD U, CU, CE B7AS-R6B31 100 mA/point speed 19.2 ms LOAD OFF B7AS-R6B16 High speed 3 HOLD B7AS-R6B36 g s eed 3 ms LOAD OFF Note: 1. HOLD: The previous output condition will be on hold when an error results. LOAD OFF: All outputs will be OFF when an error results. |
|
