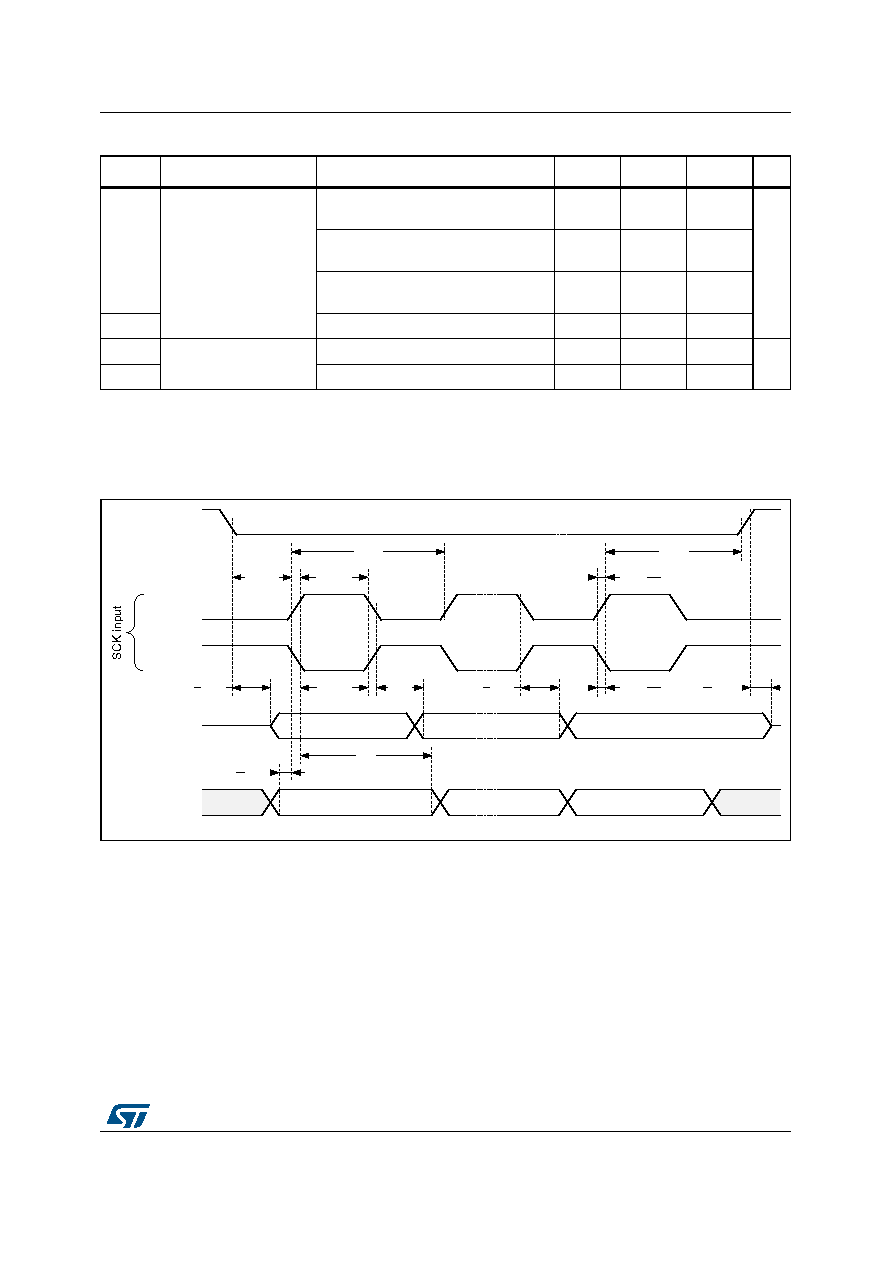

159 / 192 page  DS12469 Rev 4 159/192 STM32L412xx Electrical characteristics 163 Figure 31. SPI timing diagram - slave mode and CPHA = 0 tv(SO) Data output valid time Slave mode 2.7 < VDD < 3.6 V Voltage Range 1 - 12.5 13.5 ns Slave mode 1.71 < VDD < 3.6 V Voltage Range 1 -12.5 24 Slave mode 1.71 < VDD < 3.6 V Voltage Range 2 -12.5 33 tv(MO) Master mode - 4.5 6 th(SO) Data output hold time Slave mode 7 - - ns th(MO) Master mode 0 - - 1. Guaranteed by characterization results. 2. Maximum frequency in Slave transmitter mode is determined by the sum of tv(SO) and tsu(MI) which has to fit into SCK low or high phase preceding the SCK sampling edge. This value can be achieved when the SPI communicates with a master having tsu(MI) = 0 while Duty(SCK) = 50 %. Table 90. SPI characteristics(1) (continued) Symbol Parameter Conditions Min Typ Max Unit |
|
