ATmega165/V
2573G–AVR–07/09

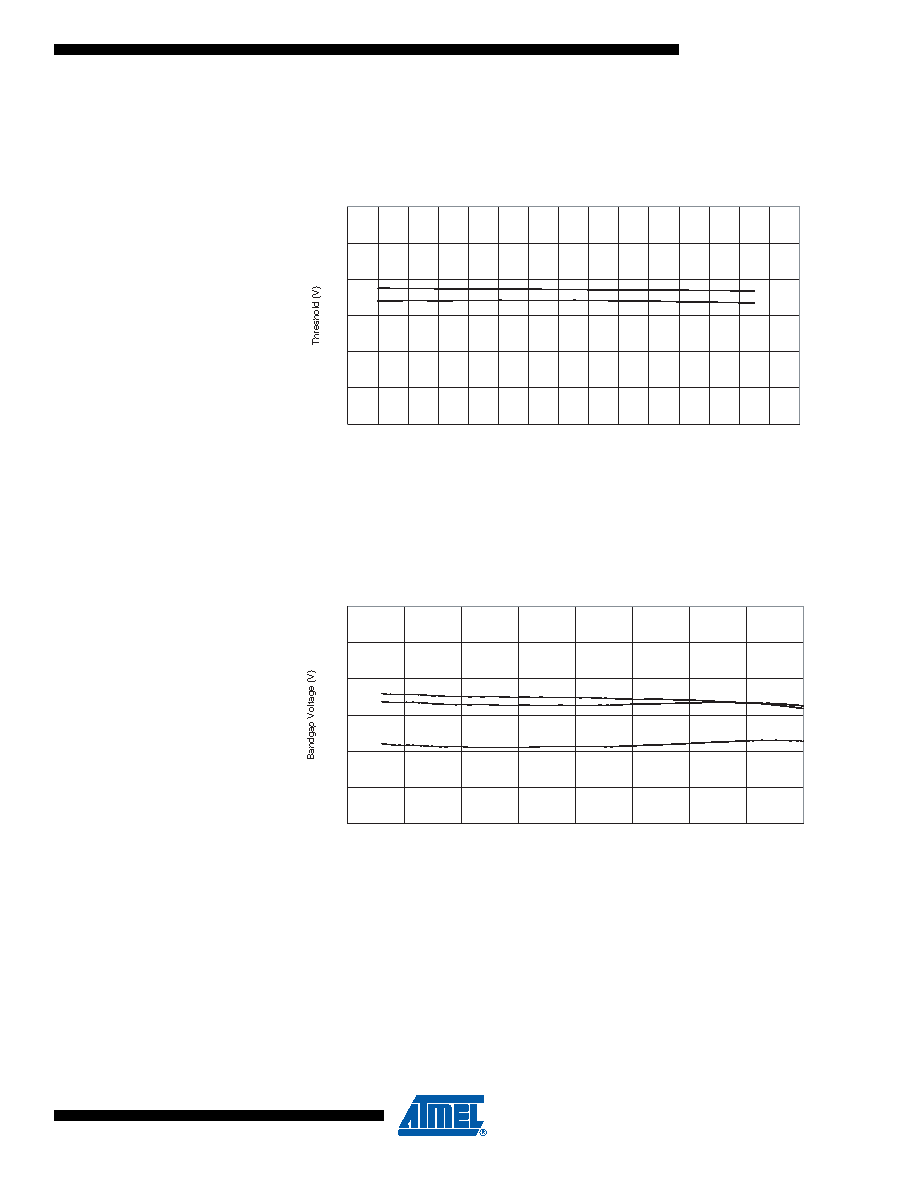

Figure 179. BOD Thresholds vs. Temperature (BOD Level is 1.8V)
Figure 180. Bandgap Voltage vs. V
CC
BOD THRESHOLDS vs. TEMPERATURE
BODLEVEL IS 1.8V
1.5
1.6
1.7
1.8
1.9
2
2.1
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100
Temperature (˚C)
Rising VCC
Falling VCC
BANDGAP VOLTAGE vs. VCC
1.08
1.09
1.1
1.11
1.12
1.13
1.14
1.5
2
2.5
3
3.5
4
4.5
5
5.5
Vcc (V)
85
°C
25
°C
-40
°C
