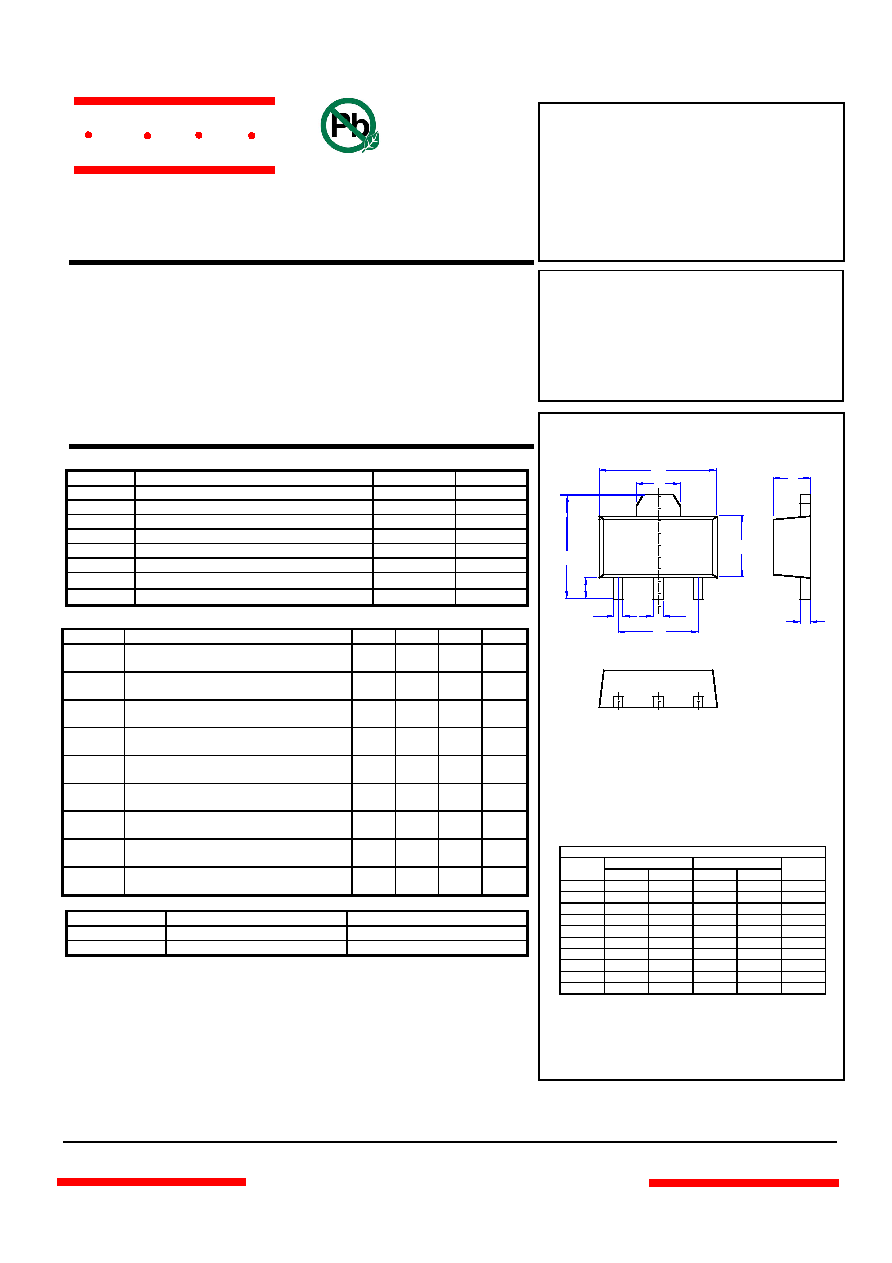

1 / 3 page

2SB1073-Q

Silicon

PNP epitaxial planer

Transistors

Features

•

Low collector to emitter saturation voltage VCE(sat)

•

Large peak collector current ICP

•

Mini power type package

Maximum Ratings @ 25OC Unless Otherwise Specified

Symbol

Rating

Unit

VCEO

Collector-Emitter Voltage

-20

V

VCBO

Collector-Base Voltage

-30

V

VEBO

Emitter-Base Voltage

-7

V

ICP

Peak Collector Current

-7

A

IC

Collector Current

-4

A

PC

Collector Dissipation

1

W

TJ

Operating Junction Temperature

150

TSTG

Storage Temperature

-55 to +150

Electrical Characteristics @ 25OC Unless Otherwise Specified

Symbol

Parameter

Min

Typ

Max

Units

V(BR)CEO

Collector-Emitter Breakdown Voltage

(IC=-1mAdc, IB=0)

-20

---

Vdc

V(BR)CBO

Collector-Base Breakdown Voltage

(IC=-10uAdc, IE=0)

-30

---

Vdc

V(BR)EBO

Collector-Emitter Breakdown Voltage

(IE=-10uAdc, IC=0)

-7

---

Vdc

ICBO

Collector Cutoff Current

(VCB=-30Vdc, IE=0Vdc)

---

-100

nAdc

IEBO

Emitter Cutoff Current

(VEB=-7Vdc, IC=0Vdc)

---

-100

nAdc

hFE

DC Current Gain (note 1)

(IC=-2Adc, VCE=-2Vdc) (note 2)

120

---

315

---

VCE(sat)

Collector-Emitter Saturation Voltage

(IC=-3Adc, IB=-0.1Adc) (note 2)

---

-0.6

-1

Vdc

fT

Current Gain-Bandwidth Product

(VCB=-6Vdc, IE=-50mAdc, f=200MHz)

---

120

---

MHz

Cob

Output Capacitance

(VCB=-20Vdc, f=1.0MHz, IE=0)

---

40

---

pF

Note: 1. hFE Rank Classification

Rank

Q

R

hFE

120~205

180~315

Marking Symbol

IQ

IR

2. Pulse measurement

Revision: B

2013/01/01

25

SOT-89

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

MCC

1.BASE

2.COLLECTOR

3.EMITTER

TM

Micro Commercial Components

www.mccsemi.com

1 of 3

B

A

E

D

G

H

F

K

J

C

1

2

3

2SB1073-R

•

Lead Free Finish/RoHS Compliant ("P" Suffix designates

RoHS Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1

Halogen free available upon request by adding suffix "-HF"

•
