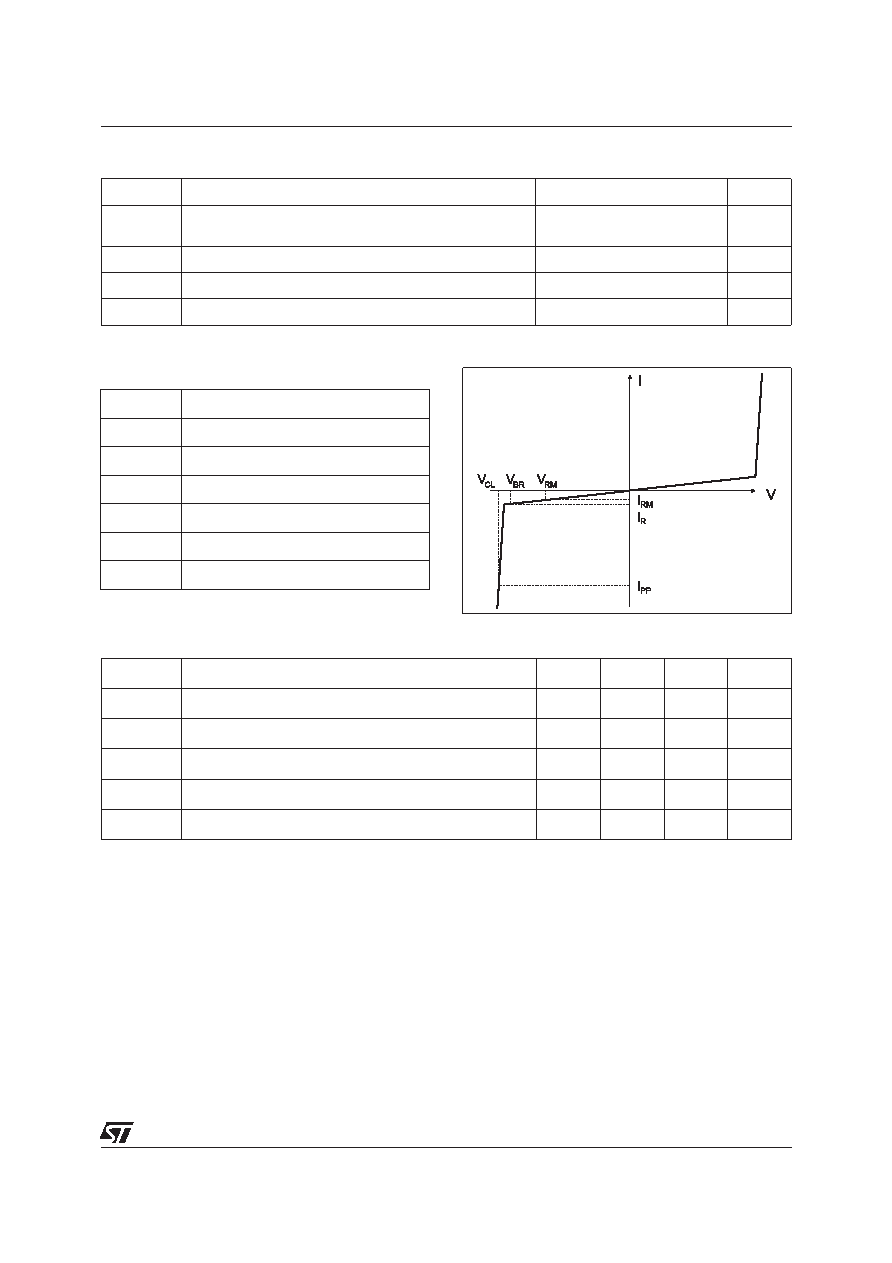

background image
EMIF02-USB01
3/6
Symbol
Parameter and test conditions
Value
Unit
VPP
ESD discharge IEC61000-4-2, air discharge
ESD discharge IEC61000-4-2, contact discharge
15
8
kV
Tj
Junction temperature
125
°C
Top
Operating temperature range
-40 to + 85
°C
Tstg
Storage temperature range
-55 to +150
°C
ABSOLUTE MAXIMUM RATINGS (Tamb =25°C)
Symbol
Test conditions
Min.
Typ.
Max.
Unit
VBR
IR =1mA
6V
IRM
VRM =3V
0.1
0.5
µA
Cline
@0V
40
45
pF
R1,R2
Tolerance ± 5%
33.0
Ω
R3
Tolerance ± 5%
1.30
k
Ω
Symbol
Parameter
VBR
Breakdown voltage
IRM
Leakage current @ VRM
VRM
Stand-off voltage
VCL
Clamping voltage
Rd
Dynamic impedance
IPP
Peak pulse current
ELECTRICAL CHARACTERISTICS (Tamb =25°C)
slope: 1/Rd
