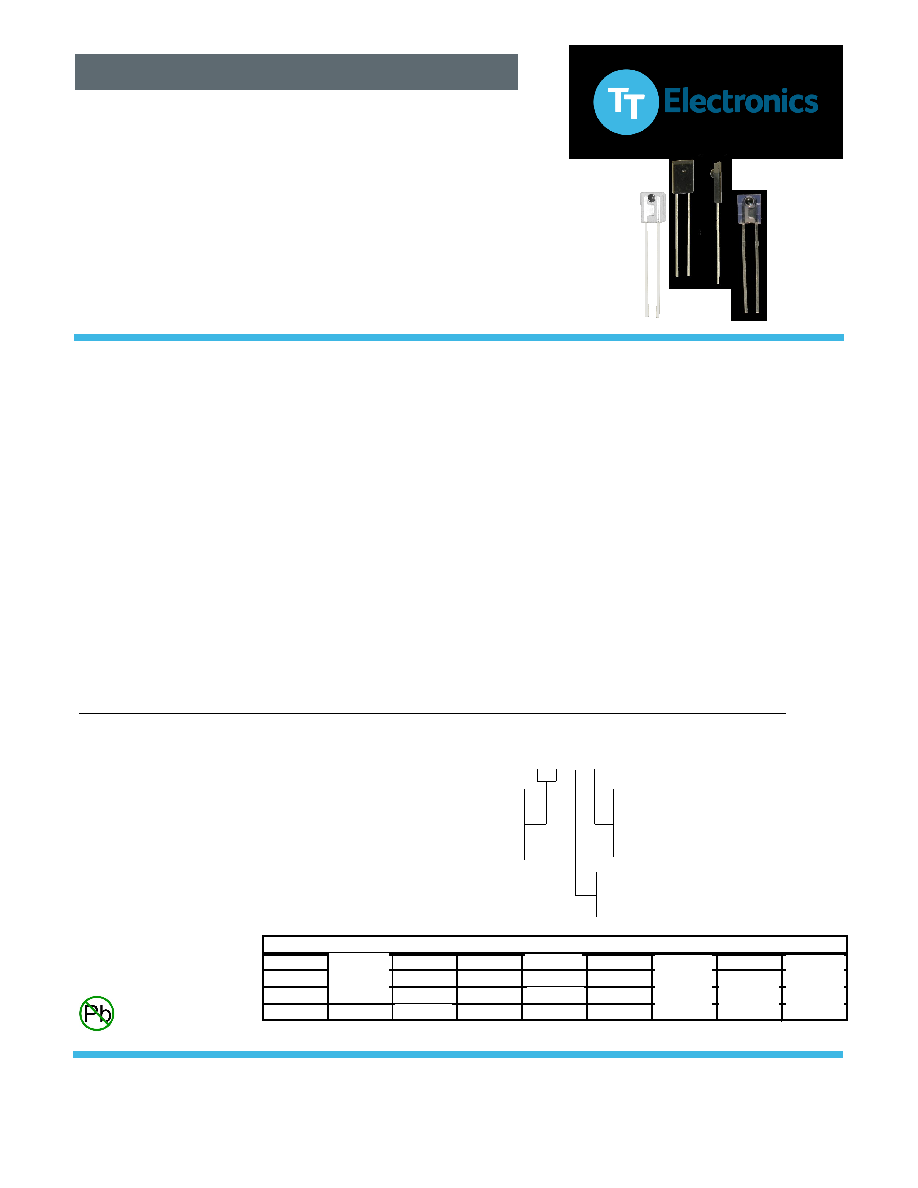

OP550, OP552, OP555, OP560, OP565,

OP750 Series

© TT electronics plc

Issue A

08/2016

Page 1

OPTEK Technology, Inc.

1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200

www.optekinc.com | www.ttelectronics.com

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

Description:

OP550, OP552, OP555, OP750, and OP770 series consists of a NPN silicon phototransistor molded in an epoxy package with

a wide receiving angle that provides relatively even reception over a large area. The OP750 and OP770 have additional

circuitry to enhance the operation of the device for stray light levels.

OP560 and OP565 series consists of a NPN silicon photodarlington transistor molded in an epoxy package with a wide

receiving angle that provides relatively even reception over a large area.

The side-looking package design allows easy PCBoard mounting of slotted optical switches or optical interrupt detectors.

The OP550, OP560, OP750 and OP770 devices have an external lens in a clear epoxy package.

The OP552 device has an integral lens in an opaque plastic package that is optically transparent to infrared light but opaque

to visible wavelengths. This feature allows the device to be used under high ambient light conditions – or anywhere

external light sources could interfere with the intended sensing application (visible light immunity).

The OP555 and OP565 devices have an internal lens in a blue-tinted package. The lensing effect of this package allows an

acceptance half-angle of 28° when measured from the optical axis to the half-power point.

These devices are 100% production tested using infrared light for close correlation with OPTEK’s GaAs and GaAIAs emitters.

All of these sensors are mechanically and spectrally matched to the OP140, OP142, OP145, OP240 and OP245 series of

infrared emitting diodes.

Please refer to Application Bulletins 208 and 210 for additional design information and reliability (degradation) data.

For custom versions please contact your OPTEK representative.

Applications:

wide receiving angle

PCBoard mounting

sensing

Features:

 Wide receiving angle

 Four sensitivity ranges

 Side-looking package

 Ideal for space-limited applications

 Ideal for PCBoard mounting

 Choice of clear, opaque or blue-tinted package

OP550

OP560

OP750

OP770

OP555

OP565

OP552

55 = Phototransistor

A = Highest sensitivity level

56 = Photodarlington

B = Sensitivity Level with Min. Max.

C = Middle Sensitivity Level

D = Lowest Sensitivity Level

0 = Extended Lens - Clear Package

2 = Extended Lens - Blue Tinted Package

5 = Integral Lens - Blue Tinted Package

OP550A

OP552A

OP555A

OP560A

OP565A

OP750A

OP755A

OP770A

OP775A

OP550B

OP552B

OP555B

OP560B

OP565B

OP750B

OP755B

OP770B

OP775B

OP550C

OP552C

OP555C

OP560C

OP565C

OP750C

OP755C

OP770C

OP775C

OP550D

OP552D

OP555D

OP750D

OP755D

OP770D

OP775D

Available Part Numbers

OP __ __ __ __

RoHS
