Version 
LTRB RASR
2017-05-15
15

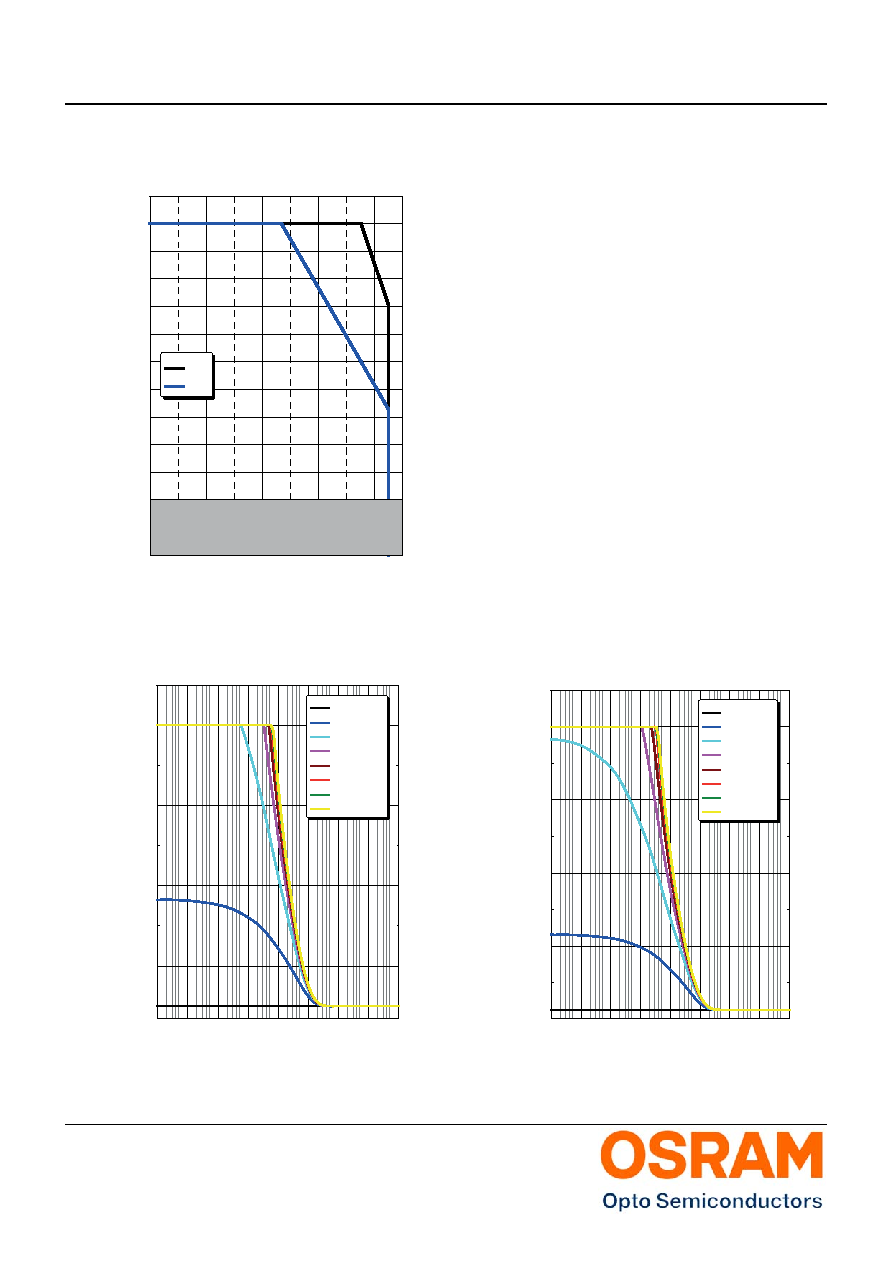

Maximal zulässiger Durchlassstrom
Max. Permissible Forward Current
I
F = f (T);
Zulässige Impulsbelastbarkeit
I
F = f (tp)
Permissible Pulse Handling Capability
Duty cycle
D = parameter, T
S= 25 °C
Zulässige Impulsbelastbarkeit
I
F = f (tp)
Permissible Pulse Handling Capability
Duty cycle
D = parameter, T
S= 85 °C
LTRBRASF
0
20406080
T [°C]
0
5
10
15
20
25
30
IF [mA]
Donotusebelow5mA
: Ts
: Ta
10-6 10-5 10-4 10-3 0.01 0.1
1
10
Pulsetime [s]
0.04
0.06
0.08
0.10
IF [A]
LTRBRASF
: D= 1.0
: D= 0.5
: D= 0.2
: D= 0.1
: D= 0.05
: D= 0.02
: D= 0.01
: D= 0.005
10-6 10-5 10-4 10-3 0.01 0.1
1
10
Pulsetime [s]
0.04
0.06
0.08
0.10
IF [A]
LTRBRASF
: D= 1.0
: D= 0.5
: D= 0.2
: D= 0.1
: D= 0.05
: D= 0.02
: D= 0.01
: D= 0.005
