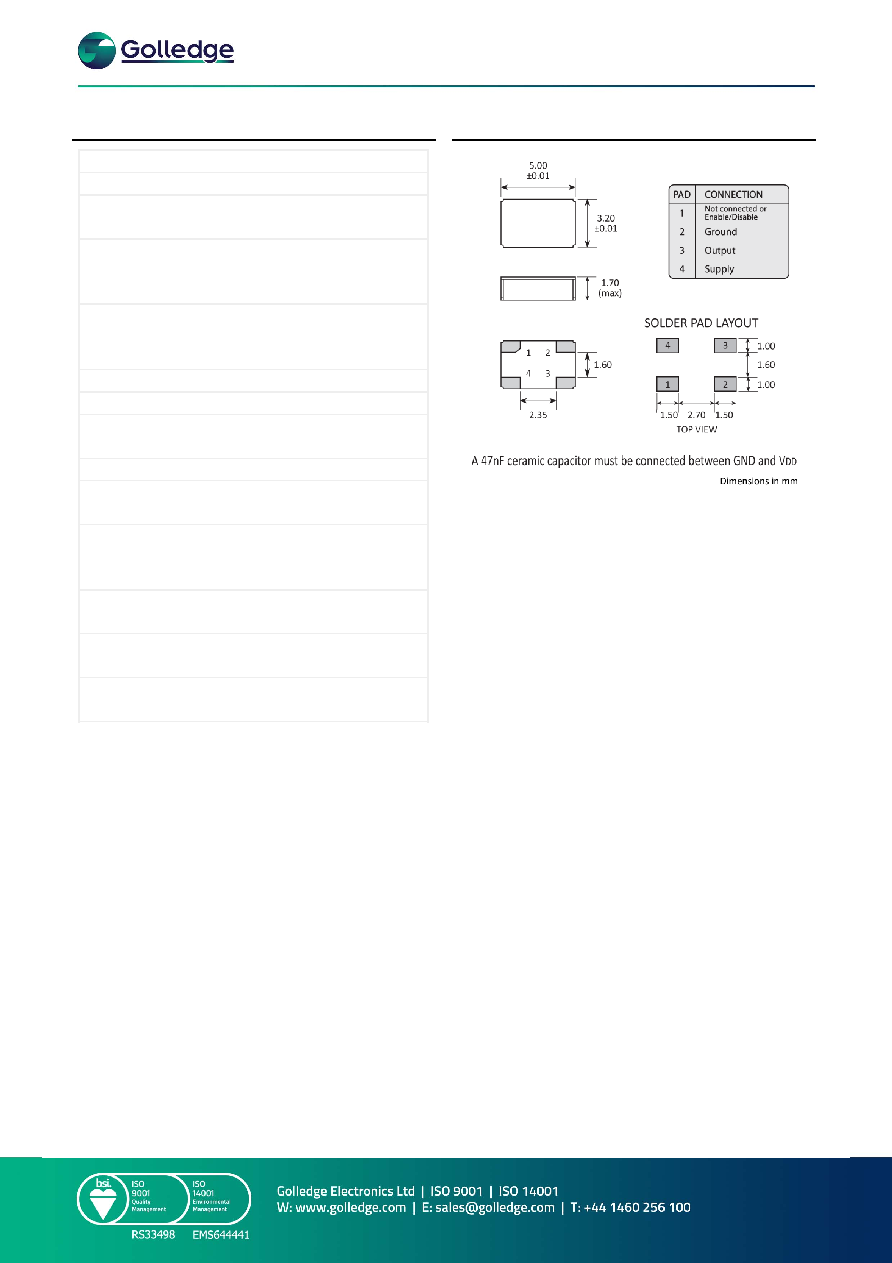

MCSO2EV 2/5
v1.0
Frequency range 10.0kHz ~ 20MHz
Dimensions
5.0 x 3.2 x 1.7mm
Supply voltage
(V )
+3.3V (±5%)
Storage
temperature
range
-65 to +125°C
Supply current
32kHz : 1mA
≤
10MHz : 4mA
>10 ~ 20MHz : 5mA
Driving ability
CMOS
Load
3pF min, 47pF max
Logic levels
‘0’ level = +0.4V max
‘1’ level = V -0.5V min
Start up time
5ms max
Waveform
symmetry
40:60 max @ 50%V
Rise / fall time
7ns max (≤20MHz, 15pF, 20~80%V )
3ns max (>20MHz, 15pF, 10~90%V )
150ns max @ 32.768kHz
Shock
resistance
10,000g, 0.3ms, ½ sine
Vibration
resistance
80g rms 10.0 ~ 2,000Hz
Soldering
condition
260°C, 10 sec max
SPECIFICATIONS
DD
DD
DD
P-P
P-P
PACKAGE DRAWING
