Network isolator - FL ISOLATOR 1000-RJ/RJ - 2313915

Technical data

Standards and Regulations

Standards/regulations

EN 61000-4-4

Comments

Criterion B

Standards/regulations

EN 61000-4-5

Signal

± 1 kV (Data line, asymmetrical)

Standards/regulations

EN 61000-6-4

EN 61000-4-6

Frequency range

0.15 MHz ... 80 MHz

Standards/regulations

EN 50121 and EN 50155 (for railway applications)

UL, USA/Canada

508 Listed

Noxious gas test

ISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

China RoHS

Environmentally friendly use period: unlimited = EFUP-e

No hazardous substances above threshold values

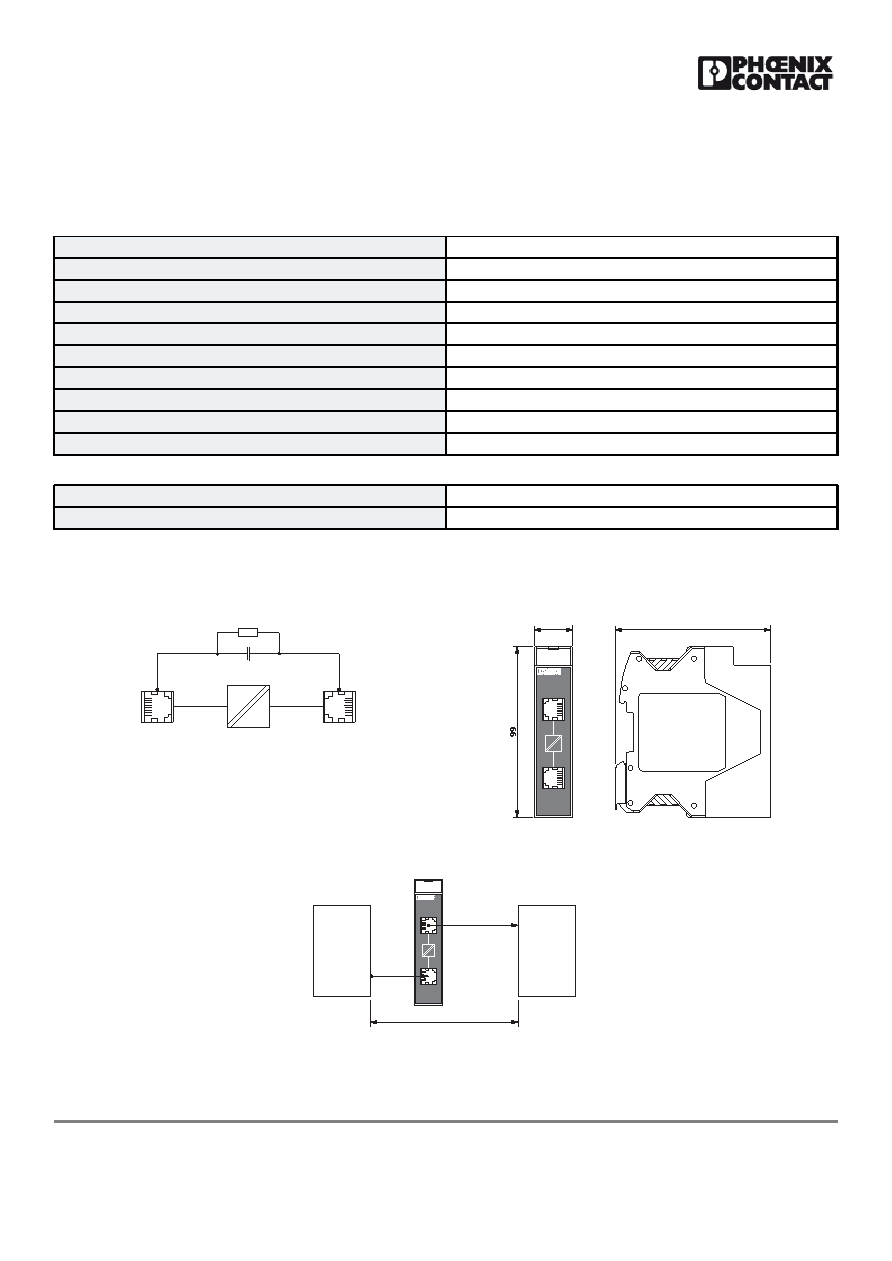

Drawings

Block diagram

1,5nF

7,2M

RJ45

Port1

Port2

Dimensional drawing

FLISOLATOR1000-RJ/RJ

Ord.-No.:2313915

ETH

92,5

22,5

Schematic diagram

FLISOLATOR1000-RJ/RJ

Ord.-No.:2313915

ETH

10/100/1000

MBit/s

10/100/1000

MBit/s

Approvals
