UR5516

LINEAR INTEGRATED CIRCUIT

UNISONIC TECHNOLOGIES CO., LTD

7 of 9

www.unisonic.com.tw

QW-R101-015.E



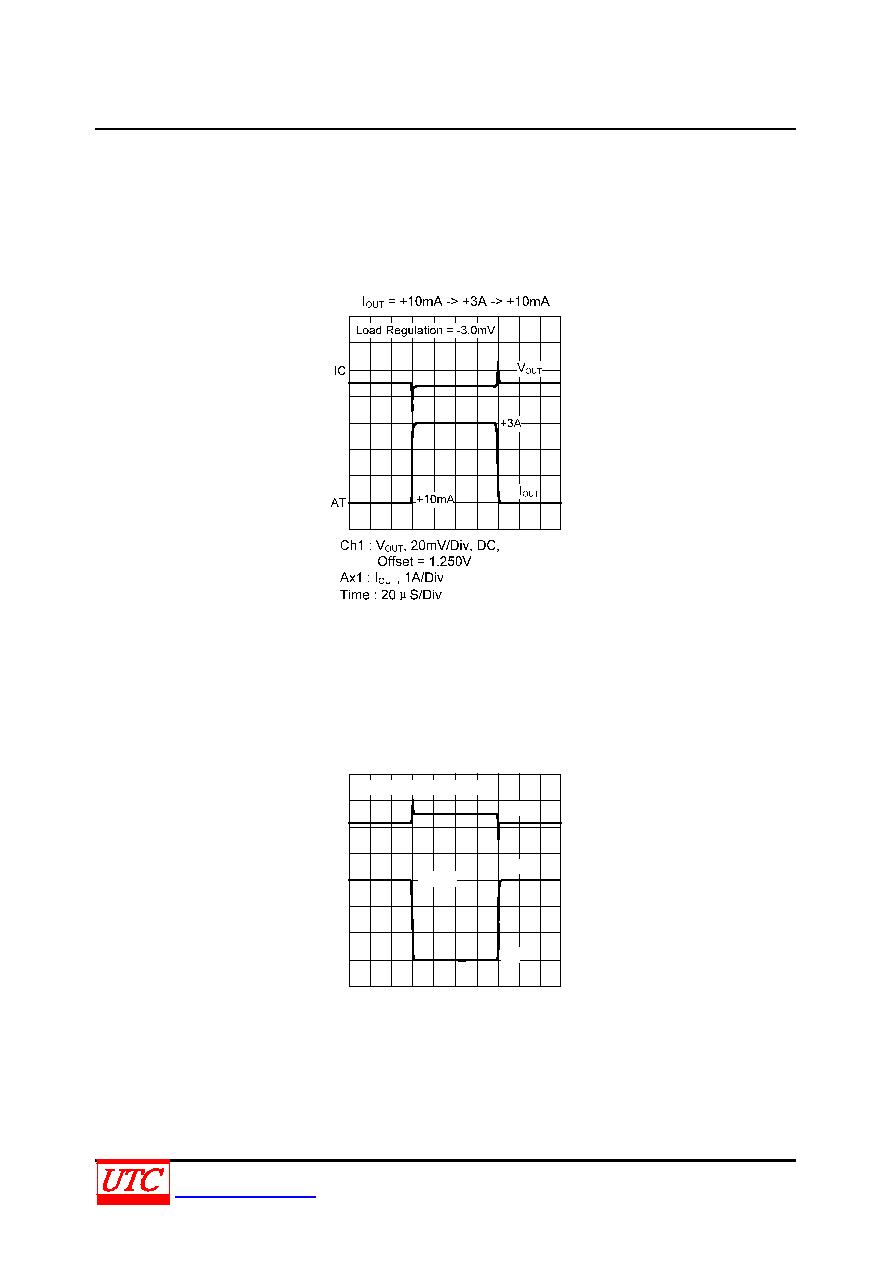

OPERAT I N G WAV EFORM S

1. Load Transient Response: IOUT = +10mA -> +3A -> +10mA

- VIN = 2.5V, VCNTL = 3.3V

- VREF is 1.250V supplied by a regulator

- COUT = 470

μF/10V, ESR = 30mΩ

- IOUT slew rate = ±3A/

μS

2. Load Transient Response: IOUT = -10mA -> -3A -> -10mA

- VIN = 2.5V, VCNTL = 3.3V

- VREF is 1.250V supplied by a regulator

- COUT = 470

μF/10V, ESR = 30mΩ

- IOUT slew rate = ±3A/

μS

IOUT = -10mA -> -3A -> -10mA

Ch1 : VOUT, 20mV/Div, DC,

Offset = 1.250V

Ax1 : IOUT, 1A/Div

Time : 20μS/Div

VOUT

-3A

+10mA

IOUT

Load Regulation = +6.5mV
