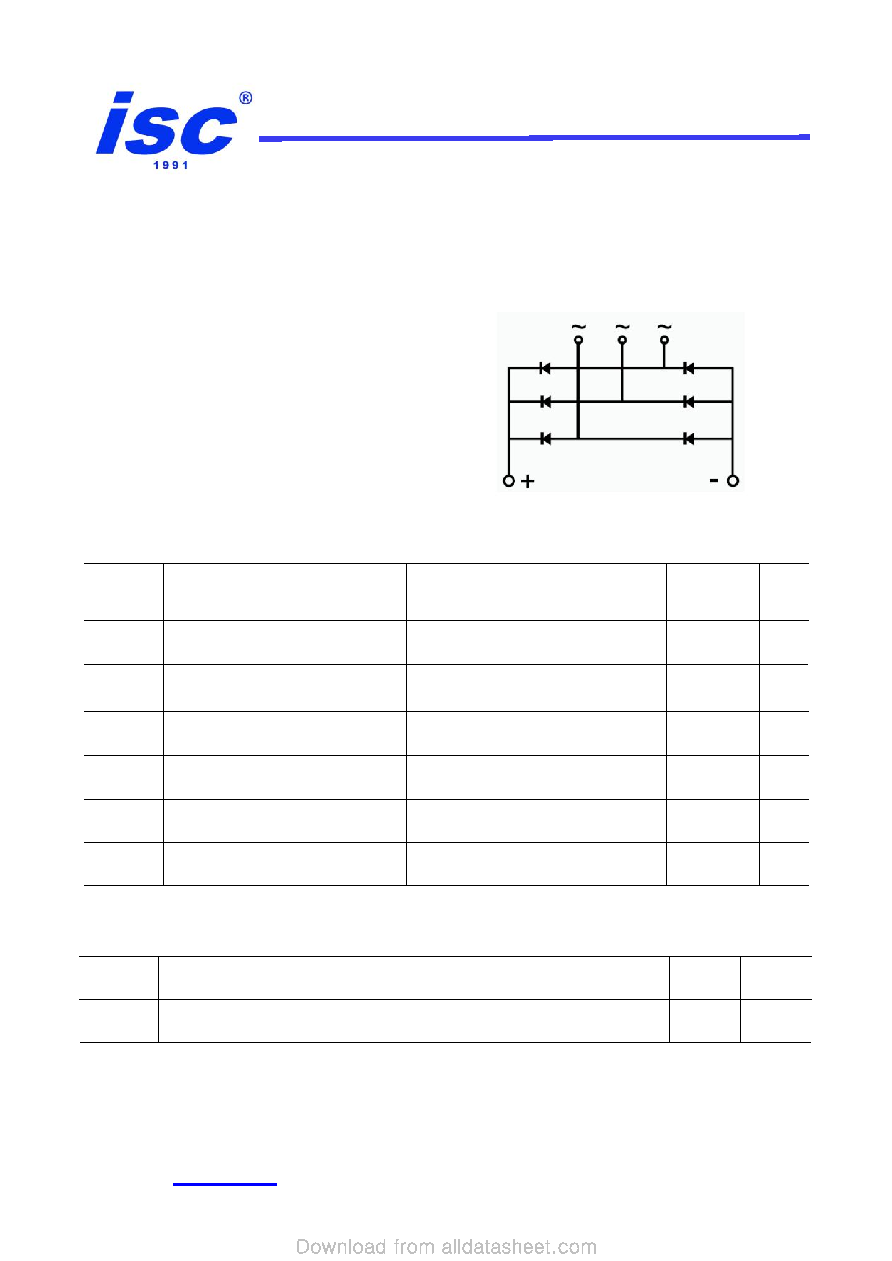

ISCZ18150
Three Phases Rectifying Bridge Module
FEATURES
·
The chips are electrically insulated from bosom plate ,2500V AC voltage
·
Package as per international standard
·
Low forward voltage drop
·
Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·
AC, DC Motor Drive/AVR/Switching for
three phase rectification
ABSOLUTE MAXIMUM RATINGS
SYMBOL
PARAMETER
CONDITIONS
VALUE
UNIT
VRRM
Repetitive Peak Reverse Voltage
Three Phase full wave ,Tp=10ms
300
V
ID
Output Current (D.C)
TC=100℃
10
A
IFSM
Surge Forward Current
Half-sine wave,
VR=0.6VRRM
750
A
Viso
Maximum Power Dissipation
50Hz,R.M.S,t=1ms,Iiso=1mA(max)
2500
V
TJ
Junction Temperature
-40~125
℃
Tstg
Storage Temperature Range
-40~125
℃
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
MAX
UNIT
Rth j-c
Thermal Resistance, Junction to Case
0.2
℃
/W
