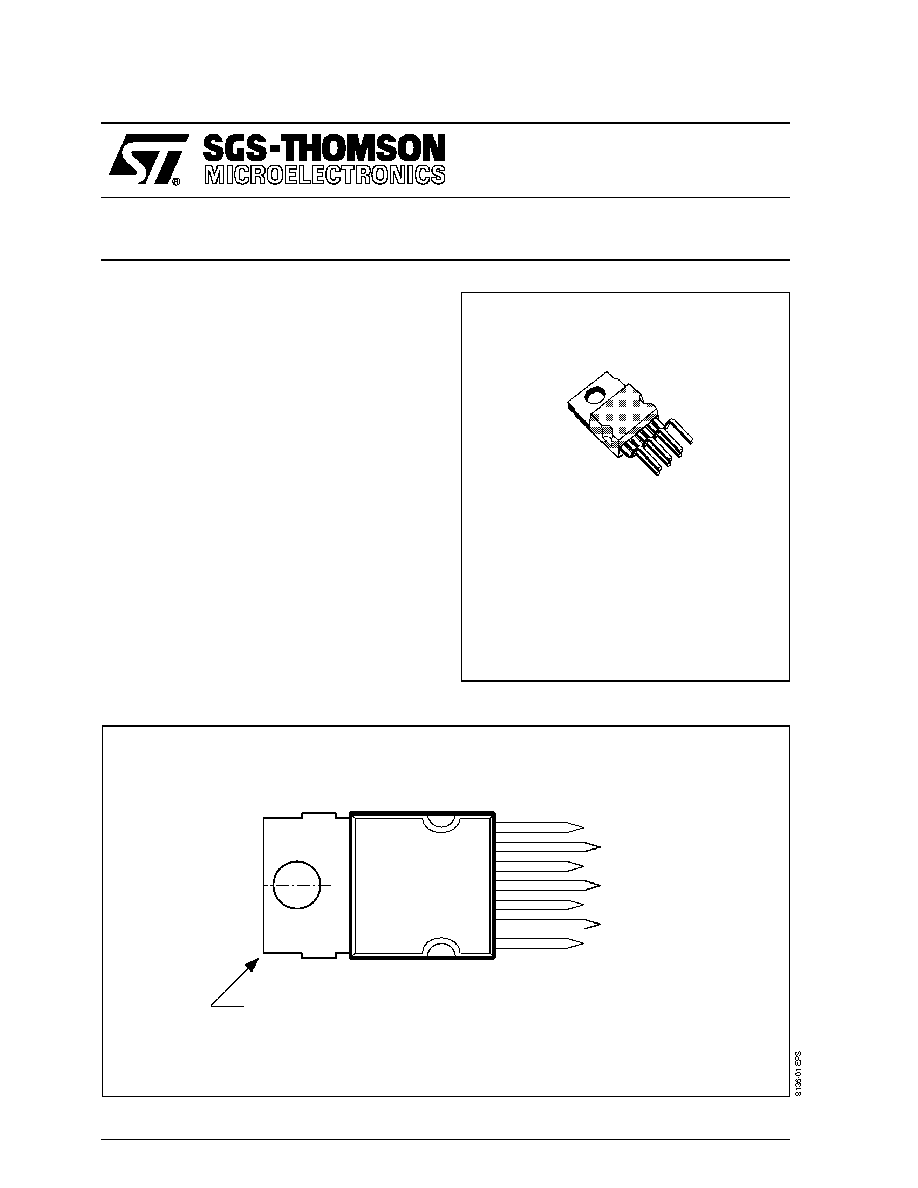

TDA8136
DUAL 12V REGULATOR WITH DISABLE
September 1993
7
6
5
4
3
2
1
Tab connected to Pin 4
OUTPUT 1
OUTPUT 2
N.C.
GROUND
DISABLE
INPUT 2
INPUT 1
PIN CONNECTIONS
HEPTAWATT
(Plastic Package)
ORDER CODE : TDA8136
.
OUTPUT CURRENTS UP TO 600mA
.
FIXED PRECISION OUTPUT 1 VOLTAGE
12V
± 2%
.
FIXED PRECISION OUTPUT 2 VOLTAGE
12V
± 2%
.
OUTPUT 2 VOLTAGE DISABLED BY A TTL
INPUT
.
SHORT CIRCUIT PROTECTION AT BOTH
OUTPUTS
.
THERMAL PROTECTION
.
LOW DROP OUT 1.5V AT 400mA
.
HIGH SUPPLY VOLTAGE REJECTION
DESCRIPTION
The TDA8136 is a monolithic dual positive voltage
regulator designed to provide fixed precision output
voltages, both 12V at currents up to 600mA.
Output 2 can be disabled by a TTL input. Both
output currents are limited by an internal short
circuit protection.
