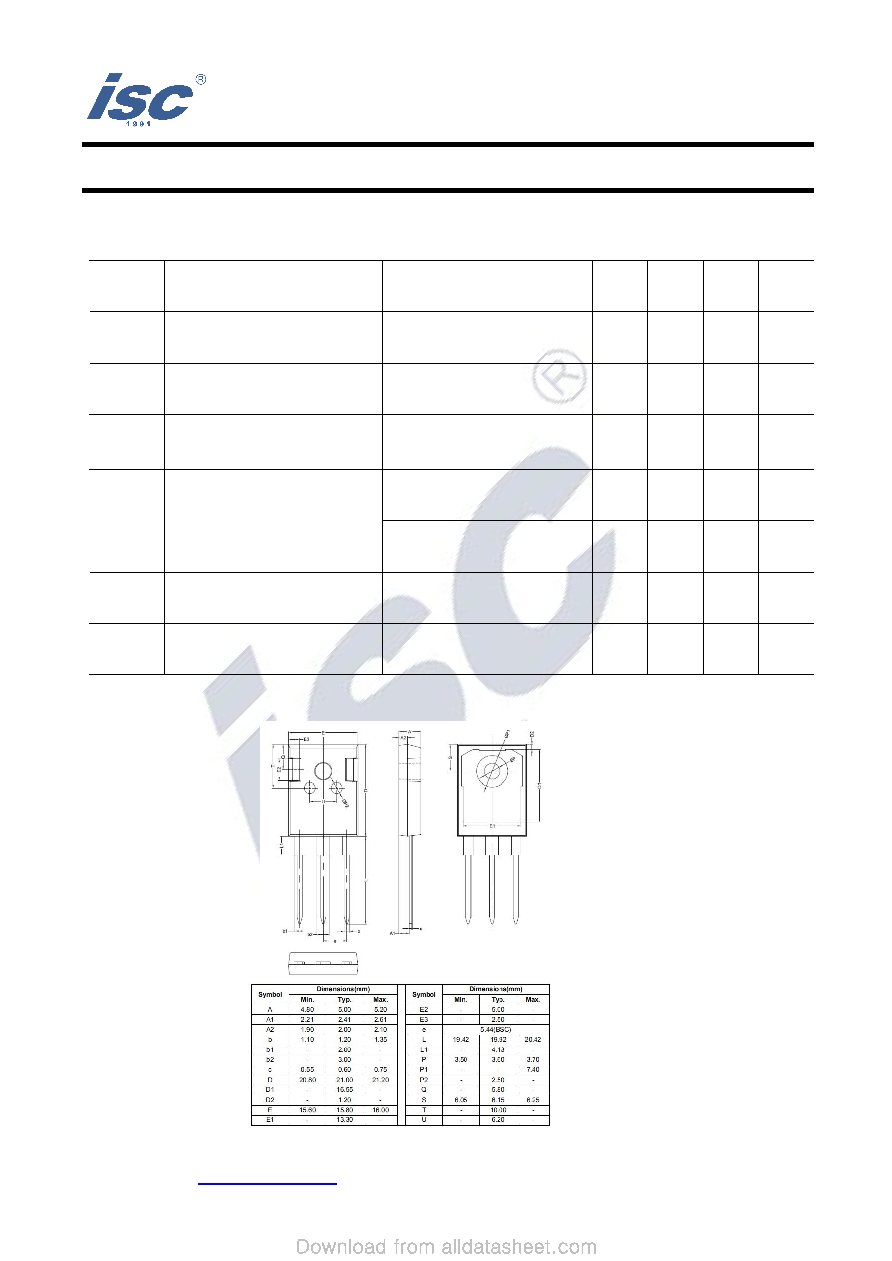

background image
INCHANGE Semiconductor
isc website：www.iscsemi.cn
isc & iscsemi is registered trademark
2
isc N-Channel MOSFET Transistor
ISCNH15W
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNIT
BVDSS
Drain-Source Breakdown Voltage VGS=0V; ID =250μA
600
V
VGS(th)
Gate Threshold Voltage
VDS=VGS; ID =250μA
2
4
V
RDS(on)
Drain-Source On-Resistance
VGS=10V; ID=25A
70
mΩ
IGSS
Gate-Source Leakage Current
VGS= 30V;VDS=0V
100
nA
VGS= -30V;VDS=0V
-1
μ
A
IDSS
Drain-Source Leakage Current
VDS=600V; VGS= 0V
10
μ
A
VSD
Diode forward voltage
Is=25A; VGS = 0V
1.1
V
PACKAGE DIMENSIONS (Unit:mm)
