FENG-JUI TECHNOLOGY CO., LTD

FERRITE CHIP INDUCTOR-RoHS

Your Perfect Inductor

Rev.1501

CFL201212SF TYPE

●FEATURE

1. Wire wound SMD inductors, signal line used

2. Highly accurate dimensions and reliable

●Applications

1. Hard Disk drives, and other electronic equipment

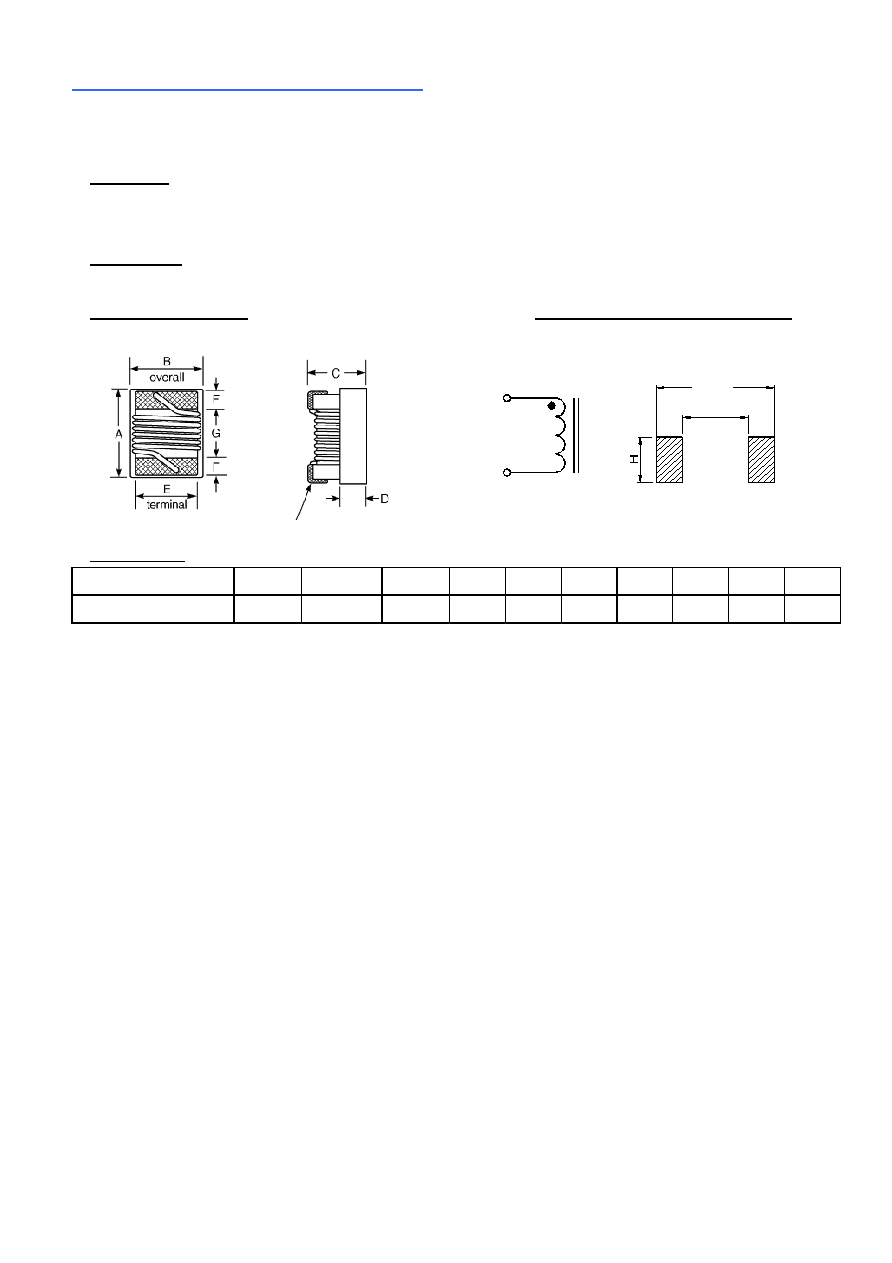

●Shape and Dimension

●Schematics and Land Patterns(mm)

●Specification

Dimension in m/m

TYPE

A

B

C

D

E

F

G

K

H

I

CFL201212SF(0805) 2.40Max 1.65Max 1.30Max

0.65

1.00

0.44

1.00

2.80

1.78

0.76

Note1. Measurement frequency of Inductance value : at electrical characteristics

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. IDC : This indicates the value of current when the inductances is 10% lower than its initial

value at D.C. superimposition or D.C. current when at ∆t=20℃,which is lower.(Ta=20℃)

Note4. Inductance tolerance: J: ±5% ;K: ±10% ; M: ±20%

Note5. Ordering Code (P/N)

1.TYPE NAME : CFL201212SF

2.INDUCTANCE VALUE : 100(10uH)

3.INDUCTANCE TOLERANCE : □(see Note4)

I

TERMINAL

K
