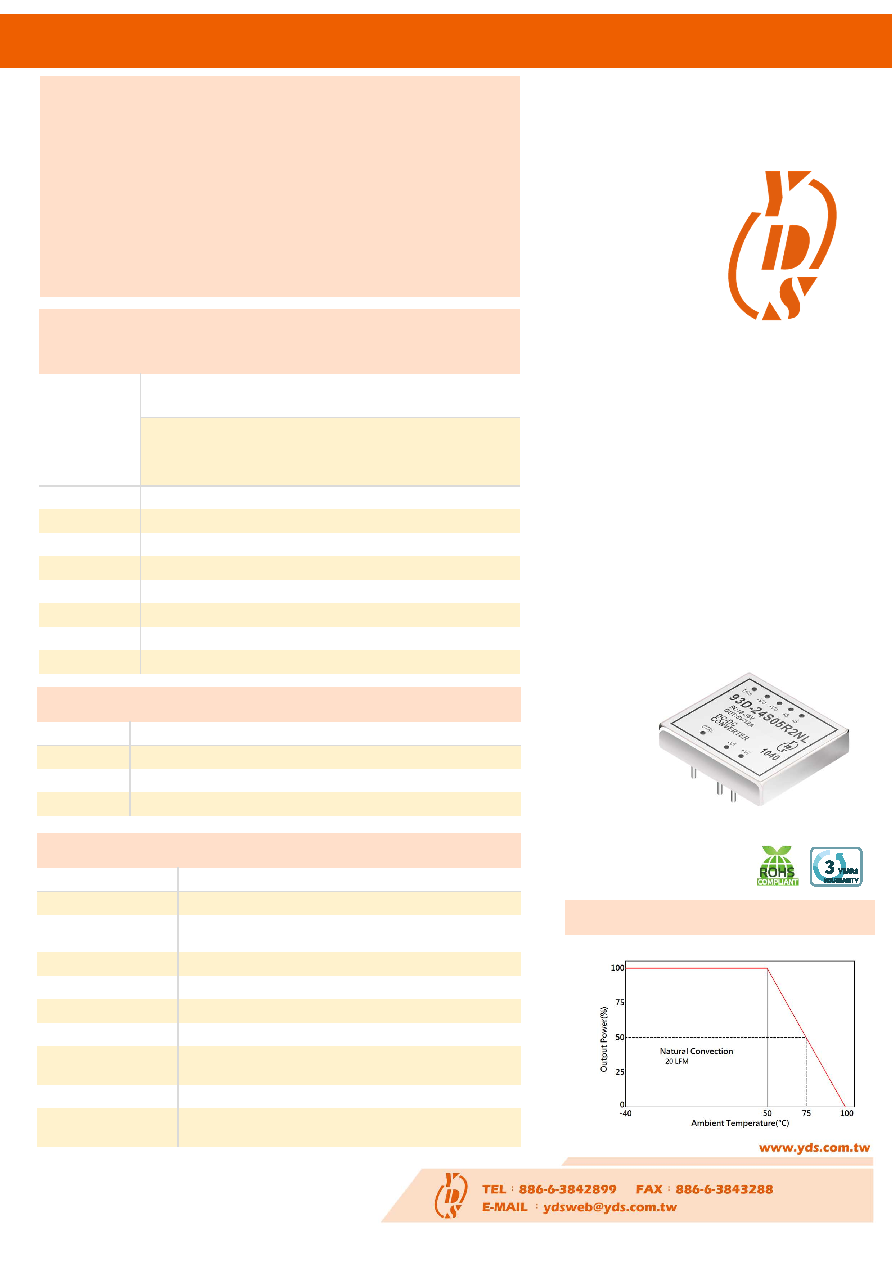

1 / 2 page  DC-DC Converter 93D-R2 SERIES 60Watt 1.5KV Isolated 2：1 Input Voltage Range Single Output 2” x 2” Specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified Part Number Input Voltage Input Current Output Voltage Output Current Efficiency Capacitor Load Vdc No- Load (mA TYP) Full Load (mA TYP) Vdc Full Load (mA) %TYP uF max. 93D-24S03R2NL 18-36 150 2163 3.3 14000 89 28800 93D-24S05R2NL 18-36 150 2778 5 12000 90 15000 93D-24S12R2NL 18-36 30 2778 12 5000 90 2800 93D-24S15R2NL 18-36 30 2778 15 4000 90 1800 93D-48S03R2NL 36-72 75 1081 3.3 14000 89 28800 93D-48S05R2NL 36-72 75 1389 5 12000 90 15000 93D-48S12R2NL 36-72 30 1389 12 5000 90 2800 93D-48S15R2NL 36-72 30 1389 15 4000 90 1800 YUAN DEAN SCIENTIFIC YUAN DEAN SCIENTIFIC CO.,LTD Rev:0 2018/10/31 93D-R2 SERIES Temperature Derating Graph Input Specifications Parameters Conditions Min Typ Max Units Voltage Types 2:1 Filter Pi Network Protection Fuse Recommended Output Specifications Parameters Conditions Min Typ Max Units Voltage Tolerance Full load @Vin(nom.) ±2 % Short Circuit/Restart Protection Hiccup, automatic recovery Over Load Protection 150 % Line Regulation ±0.5 % Load Regulation 10% to 100% load ±0.5 % Ripple & Noise BW=DC To 20MHz 100 mVp-p Transient response setting time 25% load step change 300 us Thermal Shutdown 110 ℃ External Trim Adj. Range ±10 % FEATURES： 60 Watt DIL Package 2:1 Wide Input Voltage 100% Burned In High Efficiency To 90% Customized Solutions Available Remote Control:On/Off UL94V-0 Package Material Operating Temperature:-40℃ TO +75℃ 3 Years Warranty Under Voltage Lockout |
