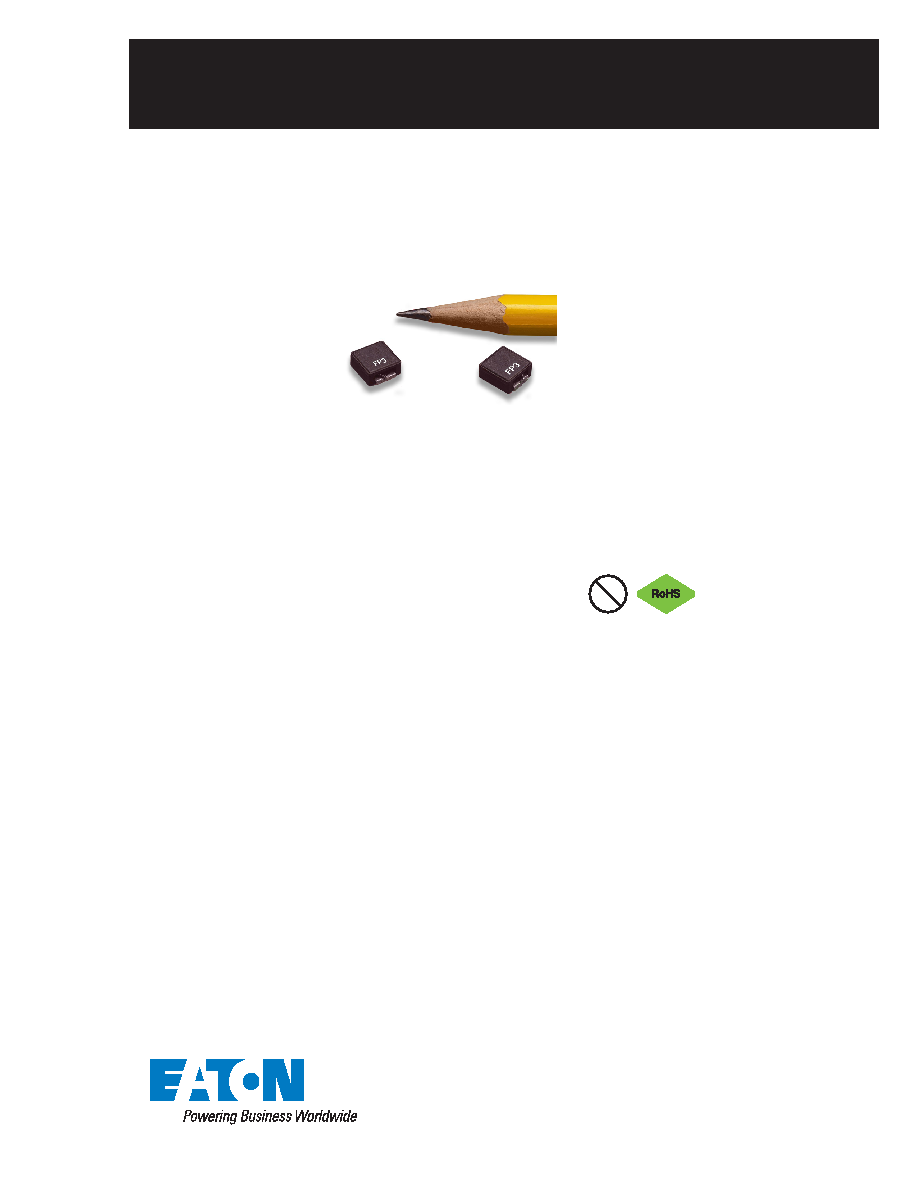

Technical Data 4118
Effective October 2015
Supersedes April 2013
Product description
•
Low profile high current inductors
•
Inductance range 0.1μh to 15μh
•
Design utilizes high temperature iron powder
alloy material with a non-organic binder to
eliminate thermal aging
•
7.25 x 6.7mm footprint surface mount package
in a 3.0mm height
•
Magnetically shielded, low EMI
•
Current rating up to 34.7Adc (Higher peak cur-
rents may be attained with a greater rolloff, see
rolloff curve)
•
Frequency range up to 2MHz
Applications
•
Voltage Regulator Modules (VRMs)
•
Multi-phase regulators
•
Desktop and server VRMs and EVRDs
•
Notebook and laptop regulators
•
Battery power systems
•
Graphics cards
•
Point-of-load modules
Environmental data
•
Storage temperature range (component):
-40°C to +155°C
•
Operating temperature range: -40°C to
+155°C (ambient plus self temperature rise)
•
Solder reflow temperature: J-STD-020D
FP3
High current, low profile inductors
Pb
