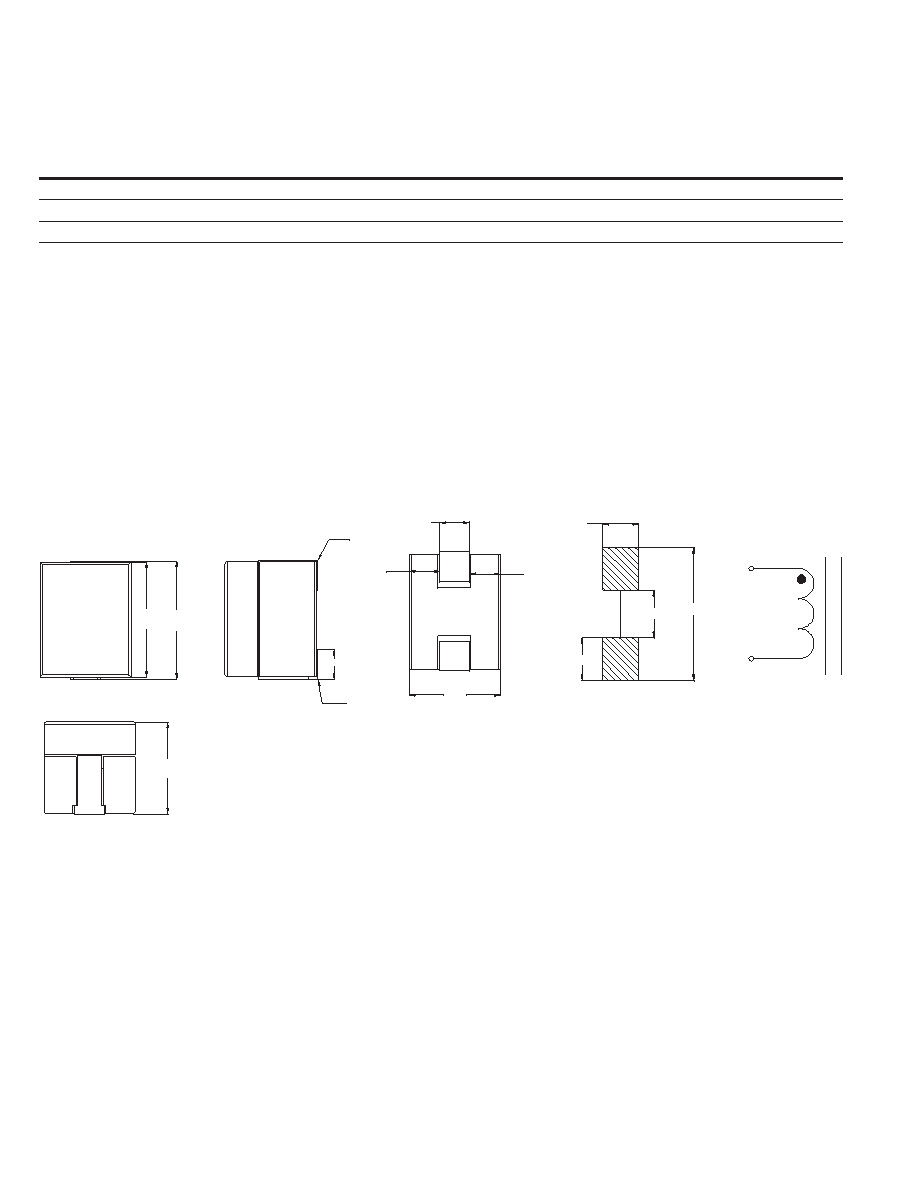

2 / 6 page ![]() 2 Technical Data 10155 Effective March 2015 FP1008 Family High frequency, high current power inductors www.eaton.com/elx Product specifications Part Number9 OCL1 (nH)±10% FLL2 (nH) minimum I rms 3 (amps) I sat1 4 (amps) I sat2 5 (amps) I sat3 6 (amps) I sat4 7 (amps) DCR (mΩ) @ 20°C ±5% K-factor8 FP1008-120-R 120 82 63 100 95.0 91.0 82 0.17 366 FP1008-150-R 150 104 63 82 78.0 75.0 68 0.17 366 FP1008-180-R 180 130 63 64 60.8 58.6 53 0.17 366 1. Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.1V rms, 0.0Adc @ 25°C 2. Full Load Inductance (FLL) Test Parameters: 100kHz, 0.1V rms, Isat1 3. I rms: DC current for an approximate temperature rise of 40°C without core loss. Derating is neces- sary for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the temperature rise. It is recommended that the temperature of the part not exceed 125°C under worst case operating conditions verified in the end application. 4. I sat1: Peak current for approximately 20% rolloff @ 25°C 5. I sat2: Peak current for approximately 20% rolloff @ 85°C 6. I sat3: Peak current for approximately 20% rolloff @ 100°C 7. I sat4: Peak current for approximately 20% rolloff @ 125°C 8. K-factor: Used to determine B p-p for core loss (see graph). B p-p = K * L * ∆I * 10 -3 . B p-p:(Gauss), K: (K-factor from table), L: (Inductance in nH), ∆I (Peak-to-peak ripple current in Amps). 9. Part Number Definition: FP1008-xxx-R - FP1008= Product code and size - xxx= Inductance value in nH - “-R” suffix = RoHS compliant Dimensions (mm) DCR measured from point “A” to point “B” Part marking: FP1008-xxx, xxx = inductance value in nH wwllyy = date code, R = revision level Tolerances are ±0.205 millimeters unless stated otherwise. All soldering surfaces to be coplanar within 0.1 millimeter Do not route traces or vias underneath the inductor Recommended Pad Layout Schematic 3.0 4.06 11.18 3.56 8.0 max. 8.0 max. B 2.5 2.6 2.6 2.5 ±0.1 A 10.8 max. 10.0 max. FP1008-XXX wwllyy R |
|
|
