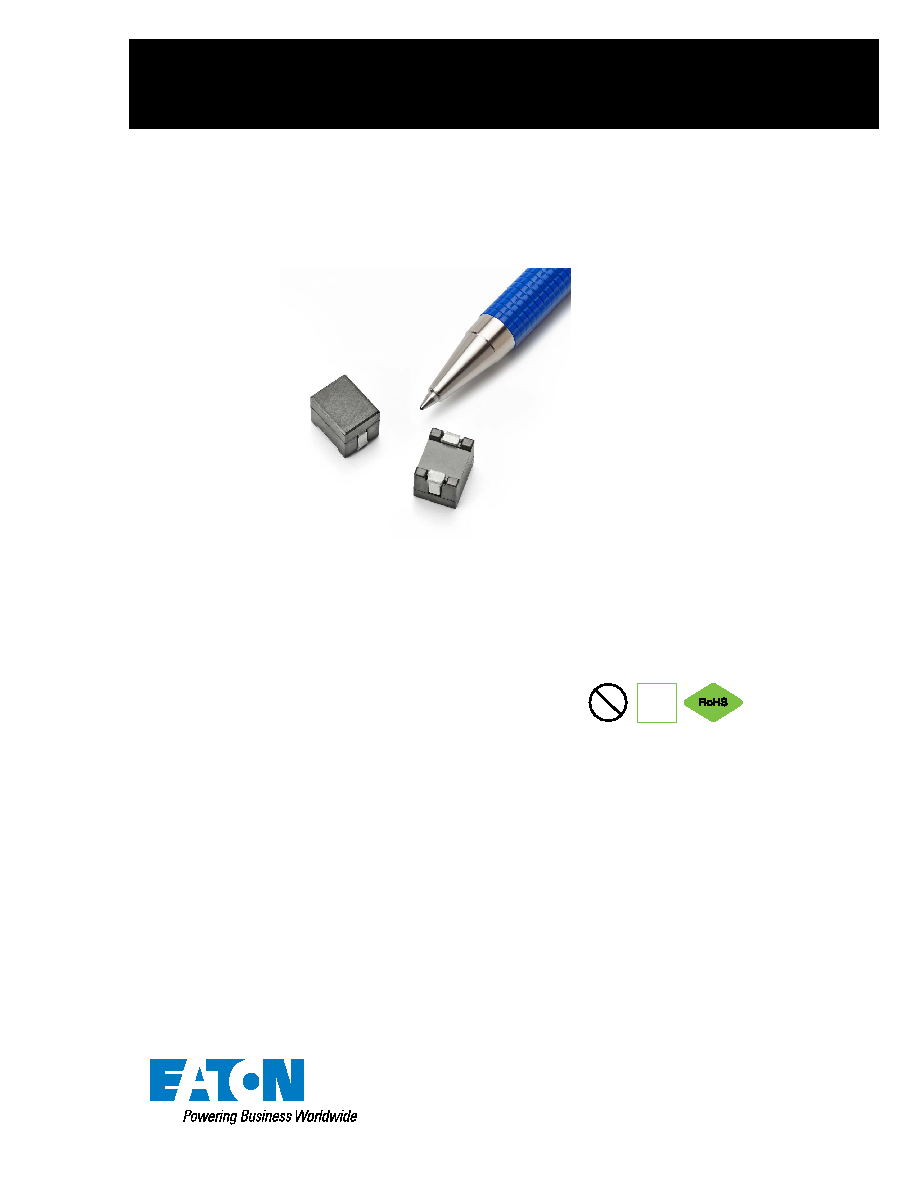

1 / 5 page  Technical Data 10465 Effective January 2018 Supersedes October 2015 FP1109B High frequency, high current power inductors Product features • High current carrying capacity • Low core loss • Tight toleranced DCR for sensing circuits • Inductance Range from 150 nH to 300 nH • Current range from 38 A to 80 A • 11.0 mm x 8.2 mm footprint surface mount package in 9.0 mm height • Ferrite core material Applications • Compatible with Infineon® DrBlade™ digital voltage regulator controller • Multi-phase and Vcore regulators • Voltage Regulator Modules (VRMs) • Server and desktop • Central processing unit (CPU) • Graphics processing unit (GPU) • Application specific integrated circuit (ASIC) • High power density • Data centers, networking and storage systems • Point-of-Load modules • DCR Sensing circuits Environmental data • Storage temperature range (Component): -40 °C to +125 °C • Operating temperature range: -40 °C to +125 °C (ambient plus self-temperature rise) • Solder reflow temperature: J-STD-020 (latest revision) compliant Infineon® and DrBlade™ are trademarks of Infineon Technologies AG Pb HALOGEN HF FREE |
