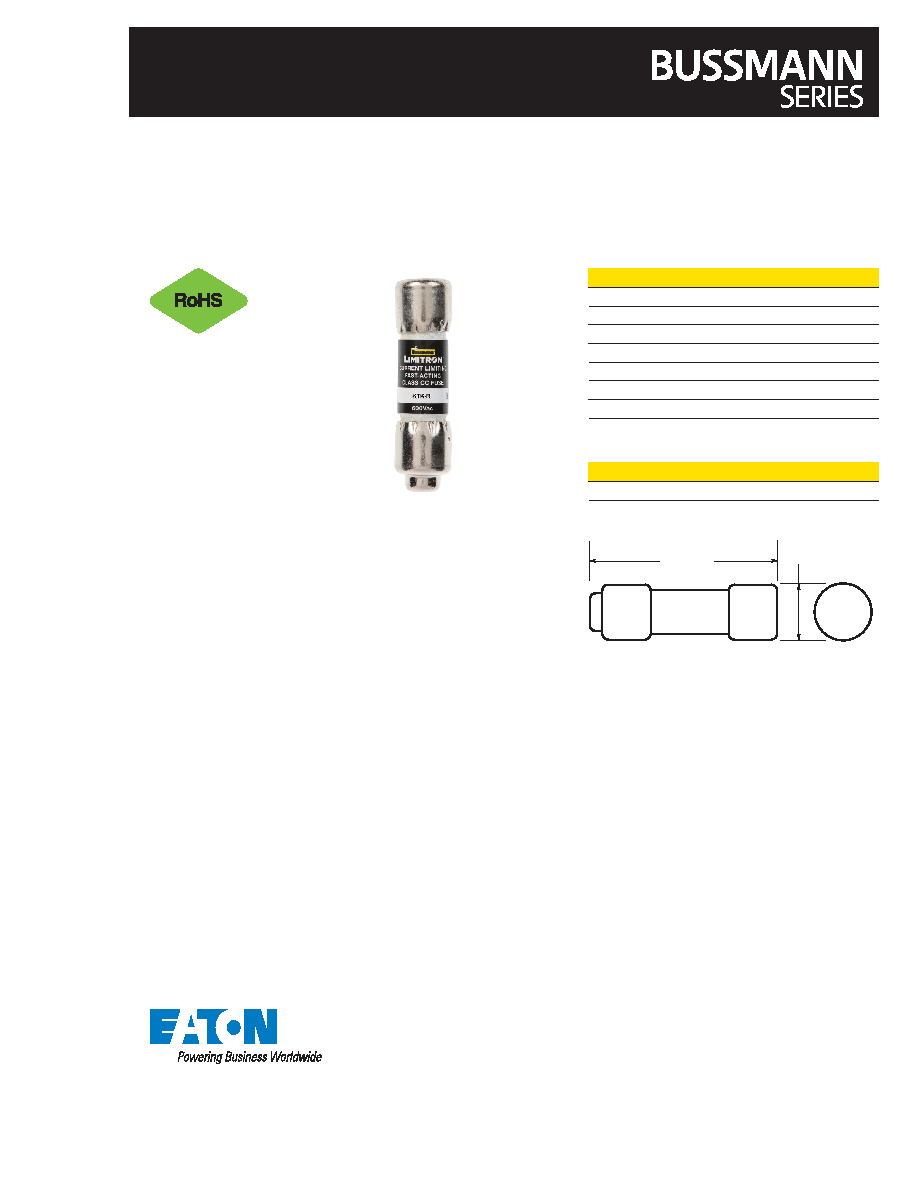

Technical Data 1015

Effective February 2016

Supersedes August 2015

LIMITRON™ KTK-R Class CC 600Vac,

1⁄10-30A, fast-acting fuses

Catalog symbol:

KTK-R-(amp)

Description:

Bussmann® series Advanced protection KTK-R

Class CC current-limiting, fast-acting fuses.

Specifications:

Ratings

• Volts 600Vac

• Amps 1⁄10-30A

• IR 200kA Vac RMS Sym.

Agency information:

• UL® Listed, Std. 248-4, Class CC,

Guide JDDZ, File E4273

• CSA® Certified, C22.2 NO. 248.4,

File 53787, Class 1422-02

• CE

• RoHS compliant

Catalog numbers (amps)

KTK-R-1⁄10

KTK-R-6⁄10 KTK-R-3-1⁄2

KTK-R-10

KTK-R-1⁄8

KTK-R-3⁄4

KTK-R-4

KTK-R-12

KTK-R-2⁄10

KTK-R-1

KTK-R-5

KTK-R-15

KTK-R-1⁄4 KTK-R-1-1⁄2

KTK-R-6

KTK-R-20

KTK-R-3⁄10

KTK-R-2

KTK-R-7

KTK-R-25

KTK-R-4⁄10 KTK-R-2-1⁄2

KTK-R-8

KTK-R-30

KTK-R-1⁄2

KTK-R-3

KTK-R-9

Carton quantity:

Amp rating

Carton qty.

1⁄10–30

10

Dimensions – in (mm):

Features:

• Provides 10X better current limitation to help

prevent equipment damage caused by short-

circuit events.

• 200kA interrupting rating complies with

NEC® Section 110.9 for today’s large capacity

systems.

• Fast-acting fuse helps prevent equipment

damage caused by short-circuit events.

• Rejection type fuse fits both standard and

rejection-style holders.

• Ideal for critical industrial or commercial

applications that have specific current limitation

requirements.

1.5" (± 0.031)

(38.1mm)

0.41" (± 0.005)

(10.3mm)

Similar Part No. - KTK-R-2/10
