SPEC NO: DSAJ9195

REV NO: V.7B

DATE: JUL/08/2016

PAGE: 1 OF 6

APPROVED: Wynec

CHECKED: Allen Liu

DRAWN: L.T.Zhang

ERP: 1203008119

2.0x1.25mm SMD CHIP LED LAMP

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Part Number: APT2012QWF/F

White

Features

2.0mm x1.25mm SMD LED,0.75mm thickness.

Low power consumption.

Wide viewing angle.

Ideal for backlight and indicator.

Package : 2000pcs / reel.

Moisture sensitivity level : level 3.

RoHS compliant.

Descriptions

The source color devices are made with InGaN

Light Emitting Diode.

Electrostatic discharge and power surge could damage

the LEDs.

It is recommended to use a wrist band or anti-

electrostatic glove when handling the LEDs.

All devices, equipments and machineries must be

electrically grounded.

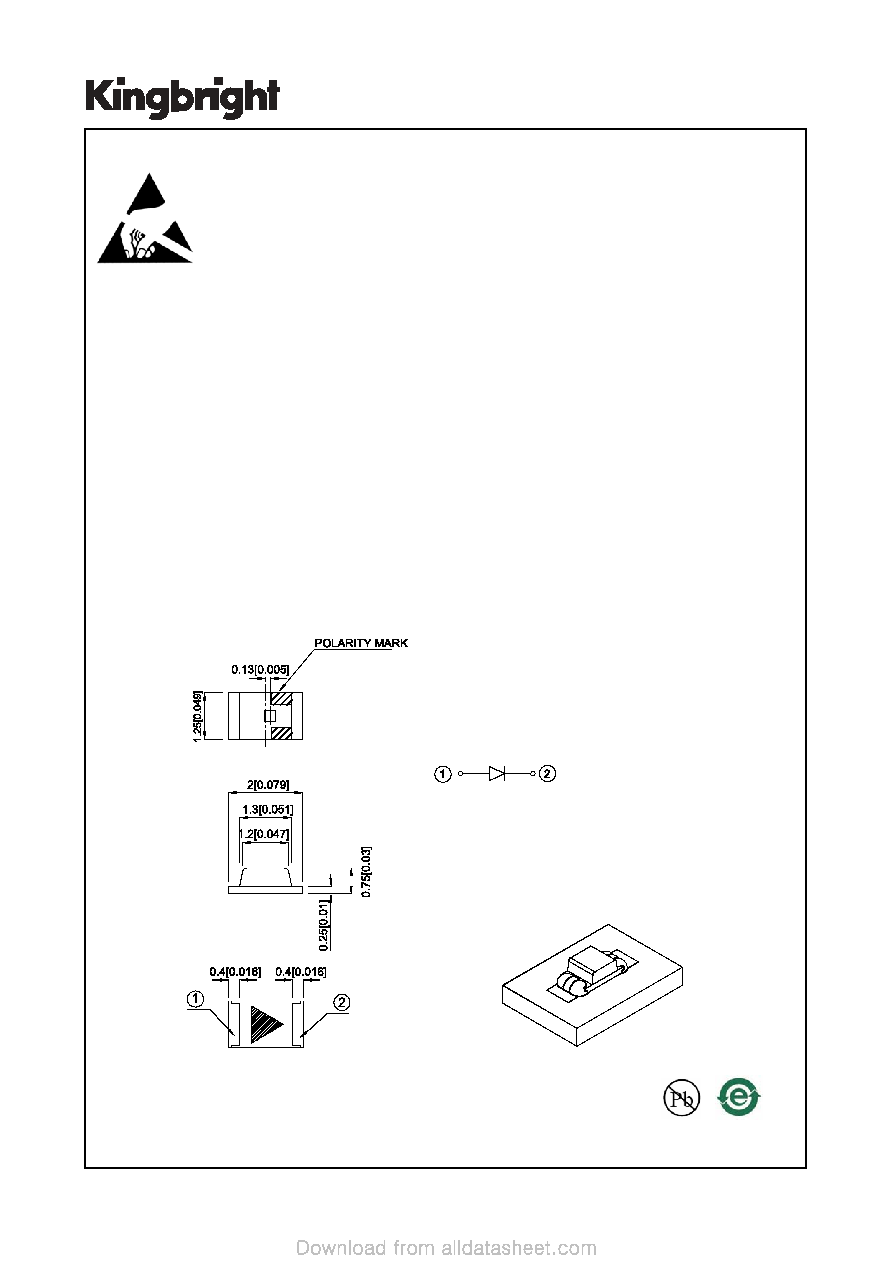

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.1(0.004") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.
