KA-4008ZGS Datasheet(PDF) 5 Page - HK TO-GRACE TECHNOLOGY CO.,LTD.

Part # KA-4008ZGS
Description  4.0x0.8mm RIGHT ANGLE SMD LED
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  TO-GRACE [HK TO-GRACE TECHNOLOGY CO.,LTD.]
Direct Link  http://www.to-grace.com/index.html
Logo TO-GRACE - HK TO-GRACE TECHNOLOGY CO.,LTD.

KA-4008ZGS Datasheet(HTML) 5 Page - HK TO-GRACE TECHNOLOGY CO.,LTD.

  KA-4008ZGS Datasheet HTML 1Page - HK TO-GRACE TECHNOLOGY CO.,LTD. KA-4008ZGS Datasheet HTML 2Page - HK TO-GRACE TECHNOLOGY CO.,LTD. KA-4008ZGS Datasheet HTML 3Page - HK TO-GRACE TECHNOLOGY CO.,LTD. KA-4008ZGS Datasheet HTML 4Page - HK TO-GRACE TECHNOLOGY CO.,LTD. KA-4008ZGS Datasheet HTML 5Page - HK TO-GRACE TECHNOLOGY CO.,LTD. KA-4008ZGS Datasheet HTML 6Page - HK TO-GRACE TECHNOLOGY CO.,LTD.
Zoom Inzoom in Zoom Outzoom out
 5 / 6 page
background image
SPEC NO: DSAI2368
REV NO: V.6B
ATE: JUN/21/2016
PAGE: 5 OF 6
APPROVED: Wynec
CHECKED: Allen Liu
DRAWN: L.T.Zhang
ERP: 1201002822
KA-4008ZGS

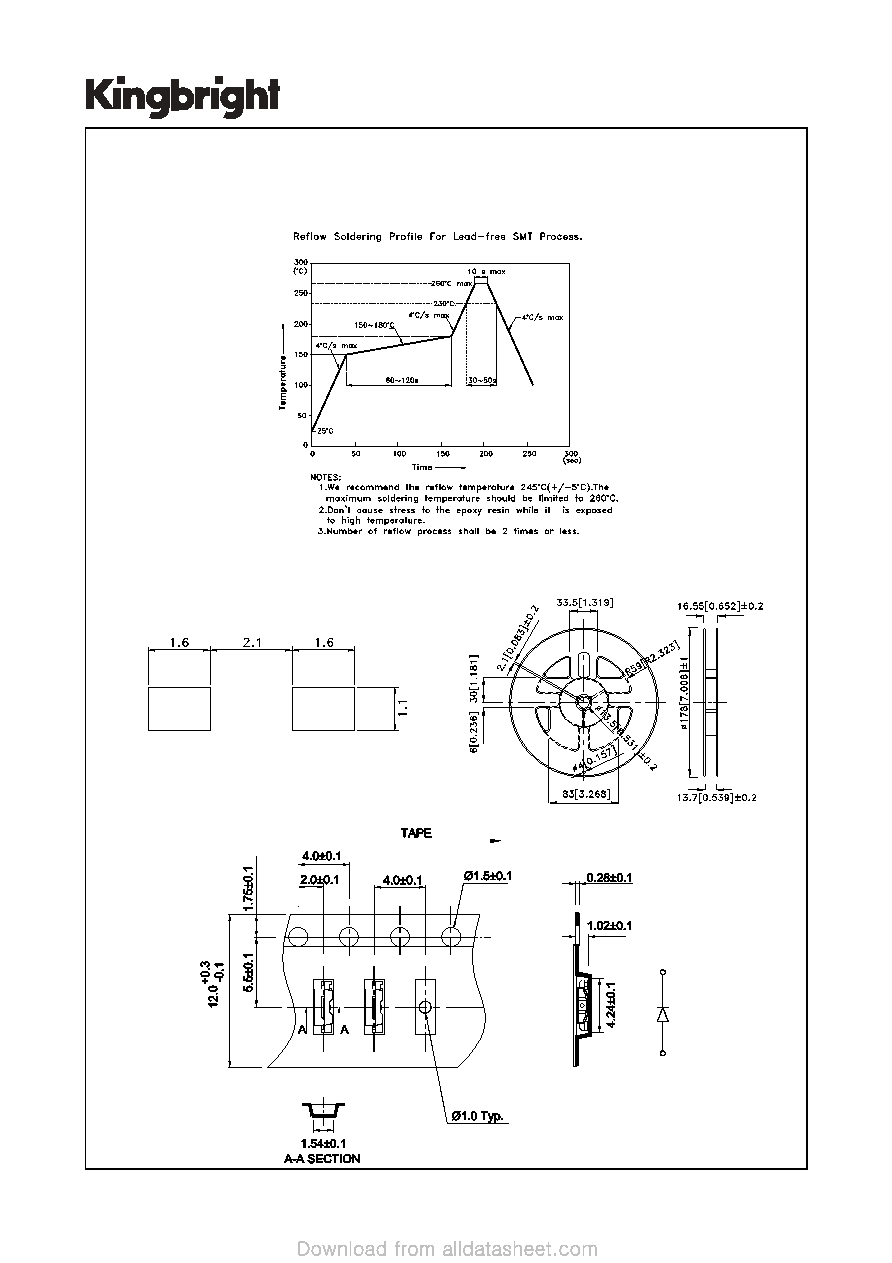

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
