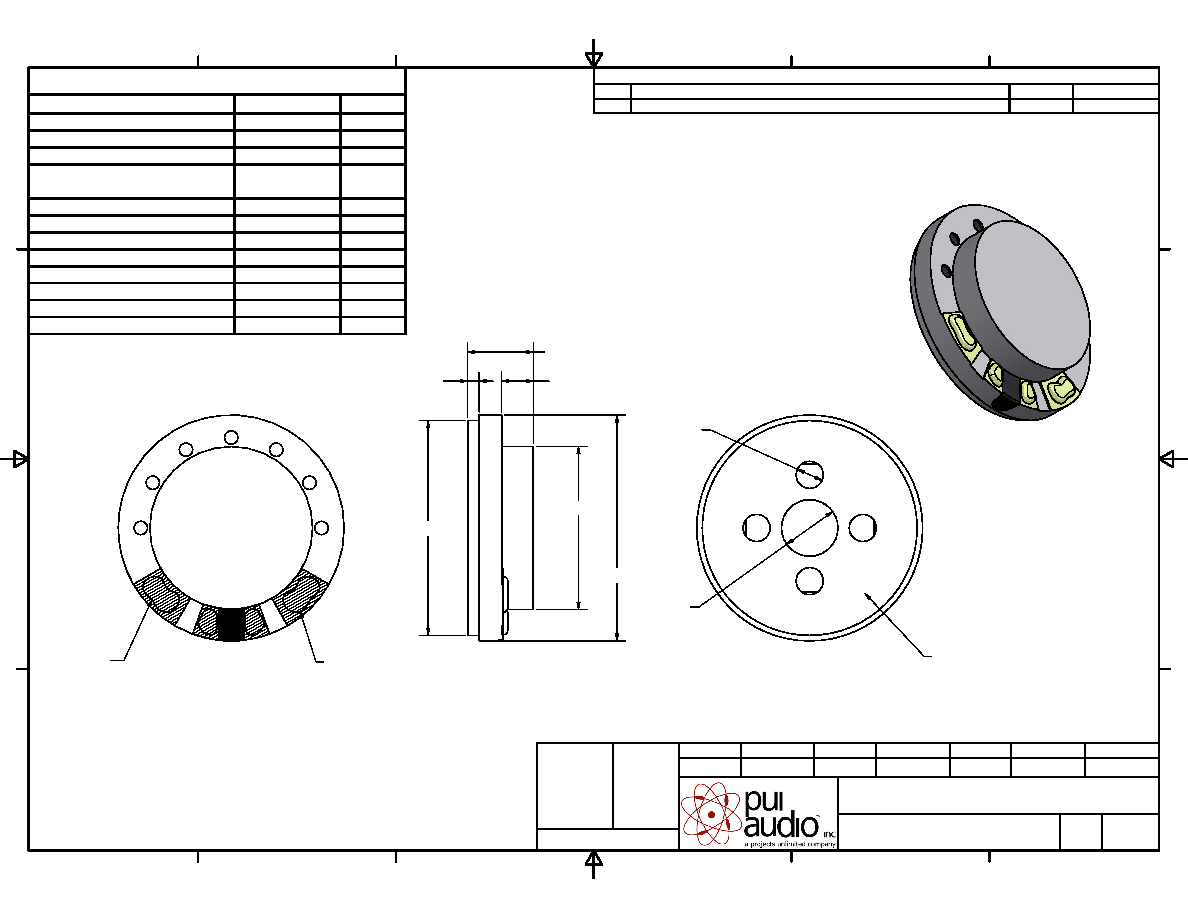

Speaker

AS01008MR-2-R

T.E.S.

M.L.

B.R.

10/31/2014

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

10/31/2014

Date

11/11/2014

Date

11/11/2014

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS01008MR-2-R.idw

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

RELEASED FROM ENGINEERING

11/11/2014

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.3

MAX INPUT POWER

0.5

IMPEDANCE

8 15%

OHM

OUTPUT SPL @ 0.3W/10cm

(AT 1.0, 1.2, 1.5, 2.0 kHz)

86 3

dBA

DISTORTION (MAX.)

10%

RESONANT FREQUENCY

1,200 20%

FREQUENCY RANGE

Fo ~ 20k

HOUSING MATERIAL

METAL

CONE MATERIAL

MYLAR

MAGNET MATERIAL

NdFeB

OPERATING TEMPERATURE

-20~ +55

WEIGHT

0.6

grams

ALL PURCHASES ARE SUBJECT TO THE PUI AUDIO

TERMS AND CONDITIONS SALE FOUND AT

http://www.puiaudio.com/pdf/terms_conditions.pdf

(paper copy available upon request).

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

0.5

0.2

1.4

0.2

2.9

0.2

9.5

0.1

7.2

0.2

2.5

0.2

1.2

CAP
