AS01508AO-SC-R datasheet(4/4 Pages) PUIAUDIO

4 / 4 page

Speaker

AS01508AO-SC-R

J.D.

M.L.

B.R.

4/10/2015

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

3/23/2015

Date

3/23/2015

Date

3/23/2015

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS01508AO-SC-R.idw

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

RELEASED FROM ENGINEERING

03/23/2015

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

4/10/2015

M.L.

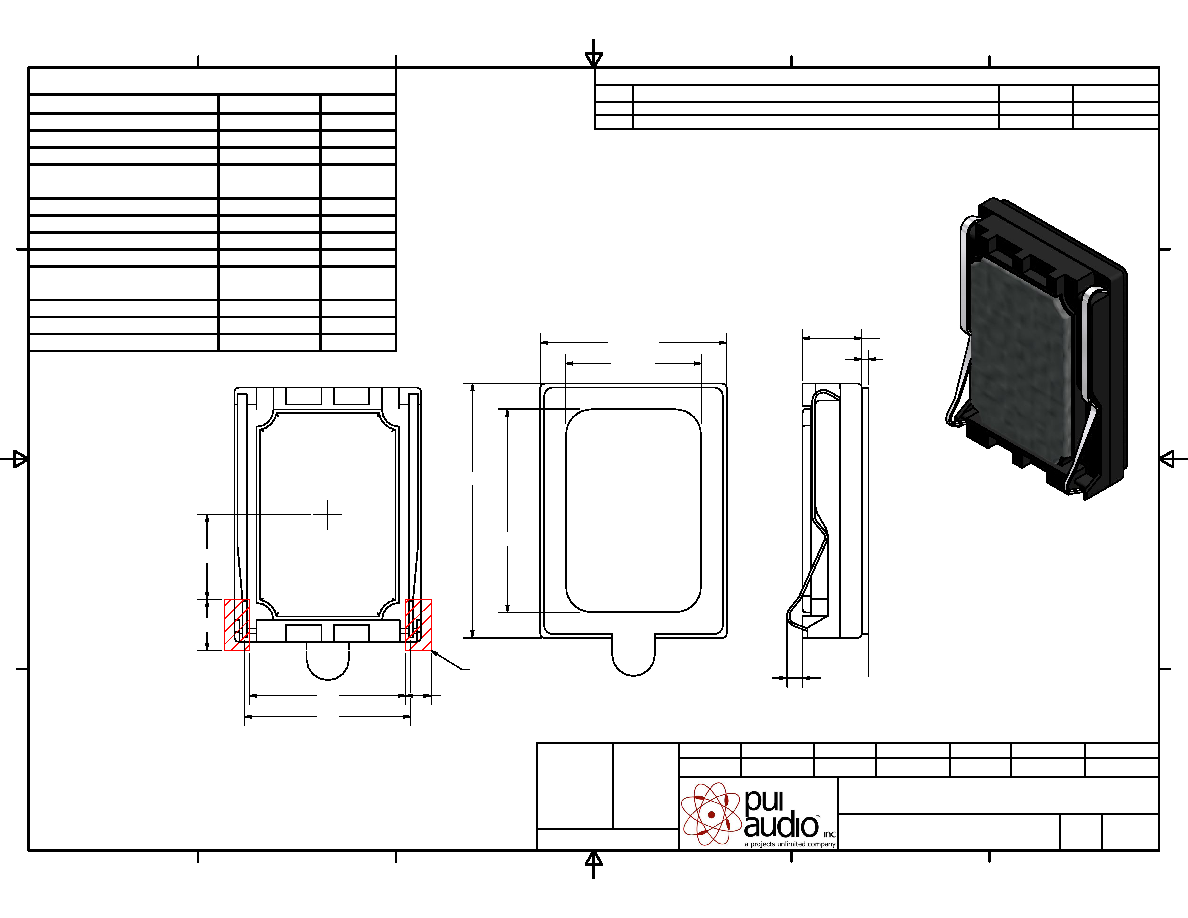

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.7

MAX INPUT POWER

1.0

IMPEDANCE

15%

OHM

OUTPUT SPL @ 0.1W/0.1M

(AT 650-20kHz AVG.)

dBA

DISTORTION (MAX.)

10%

RESONANT FREQUENCY

550

20%

FREQUENCY RANGE

Fo ~ 20,000

HOUSING MATERIAL

ABS

CONE MATERIAL

ALUMINUM

CAP MYLAR

MAGNET MATERIAL

NdFeB

OPERATING TEMPERATURE

-40 ~ +80

WEIGHT

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

9.8

9.2

0.2

1.5

0.2

3.5

0.2

0.4

0.92

0.2

Positive (+) polarity
