AS01508MR-6-R datasheet(3/3 Pages) PUIAUDIO

3 / 3 page

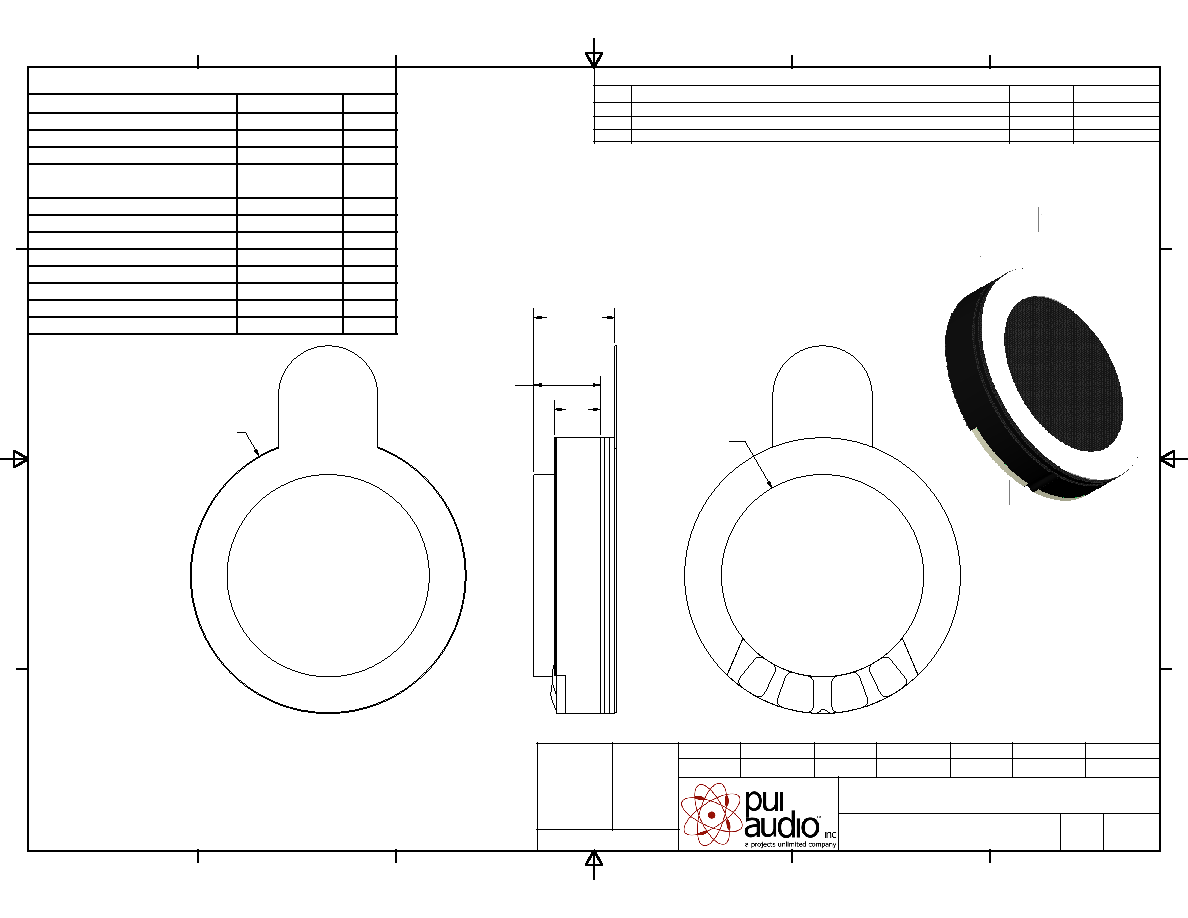

Speaker

AS01508M - R

J.D.

B.R.

R.W.

2/6/2009

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

9/5/2006

Date

9/5/2006

Date

9/5/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS01508MR-R.idw

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

RELEASED FROM ENGINEERING

12/31/2007

REVISED HEIGHT DIMENSIONS

2/05/2009

B.R.

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

2/06/2009

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

1.2

MAX INPUT POWER

1.8

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 0.1W/0.1M

(AT

0.8, 1.0, 1.2, 1.5, 2.0 kHz)

88 ± 3

dBA

DISTORTION (MAX.)

10%

RESONANT FREQUENCY

900 ± 20%

FREQUENCY RANGE

900 ~ 12,000

HOUSING MATERIAL

ABS

CONE MATERIAL

MYLAR

MAGNET MATERIAL

Nd-Fe-B

OPERATING TEMPERATURE

-30 ~ +70

°C

WEIGHT

1.5

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

n`0.1

n11

3.6

`0.15

2.5

4.4

`0.2
