AS02808MR-R Datasheet(PDF) 3 Page - PUI audio inc.

Part # AS02808MR-R
Description  28mm diameter speaker with Neodymium magnet for 80 dB sensitivity
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  PUIAUDIO [PUI audio inc.]
Direct Link  http://www.puiaudio.com/
Logo PUIAUDIO - PUI audio inc.

AS02808MR-R Datasheet(HTML) 3 Page - PUI audio inc.

  AS02808MR-R Datasheet HTML 1Page - PUI audio inc. AS02808MR-R Datasheet HTML 2Page - PUI audio inc. AS02808MR-R Datasheet HTML 3Page - PUI audio inc.
Zoom Inzoom in Zoom Outzoom out
 3 / 3 page
background image

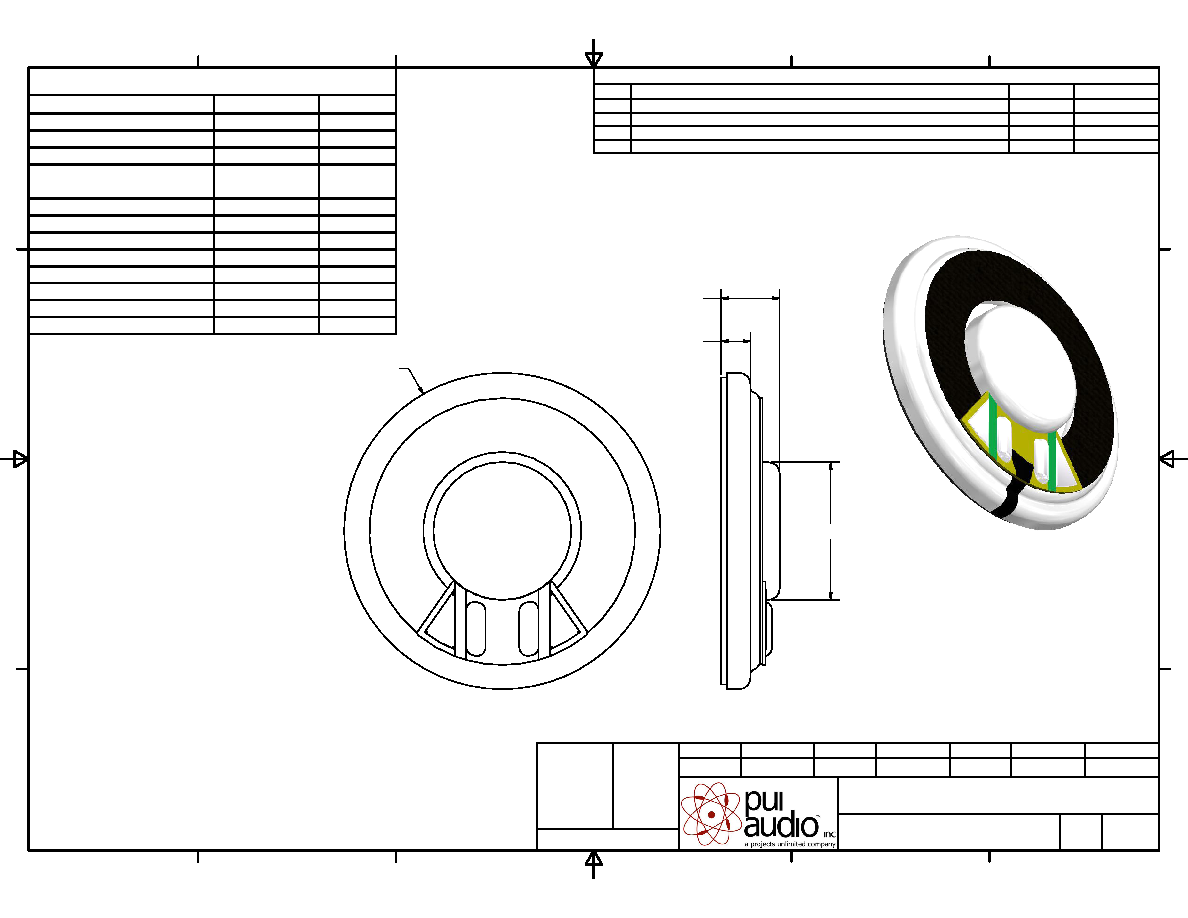

Speaker
AS02808MR-R
J.A.F.
E.P.
B.R.
11/13/2007
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
2/16/2006
Date
2/16/2006
Date
2/16/2006
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE 0.5 AND
ANGLES ARE 3 .
AS02808MR-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
2/16/2006
A
REVISED PART DIMENSION
4/3/2007
B.R.
B
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
11/13/2007
B.R.
C
REVISED POWER RATING AND DIMENSIONS
11/1/2013
M.L.
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
1
W
MAX INPUT POWER
1.5
W
IMPEDANCE
8
15%
OHM
OUTPUT SPL @ 1W/1M
(AT 0.6, 0.8, 1.0, 1.2 kHz)
80
3
dBA
DISTORTION (MAX.)
5%
-
RESONANT FREQUENCY
500
100
Hz
FREQUENCY RANGE
500 ~ 20,000
Hz
HOUSING MATERIAL
METAL
-
CONE MATERIAL
MYLAR
-
MAGNET MATERIAL
N35
-
OPERATING TEMPERATURE
-20 ~ +60
C
WEIGHT
6.5
grams
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2011/65/EU COMPLIANT.
28
0.2
2.4
0.2
12.2
0.2
5.2
0.3
+
_
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
