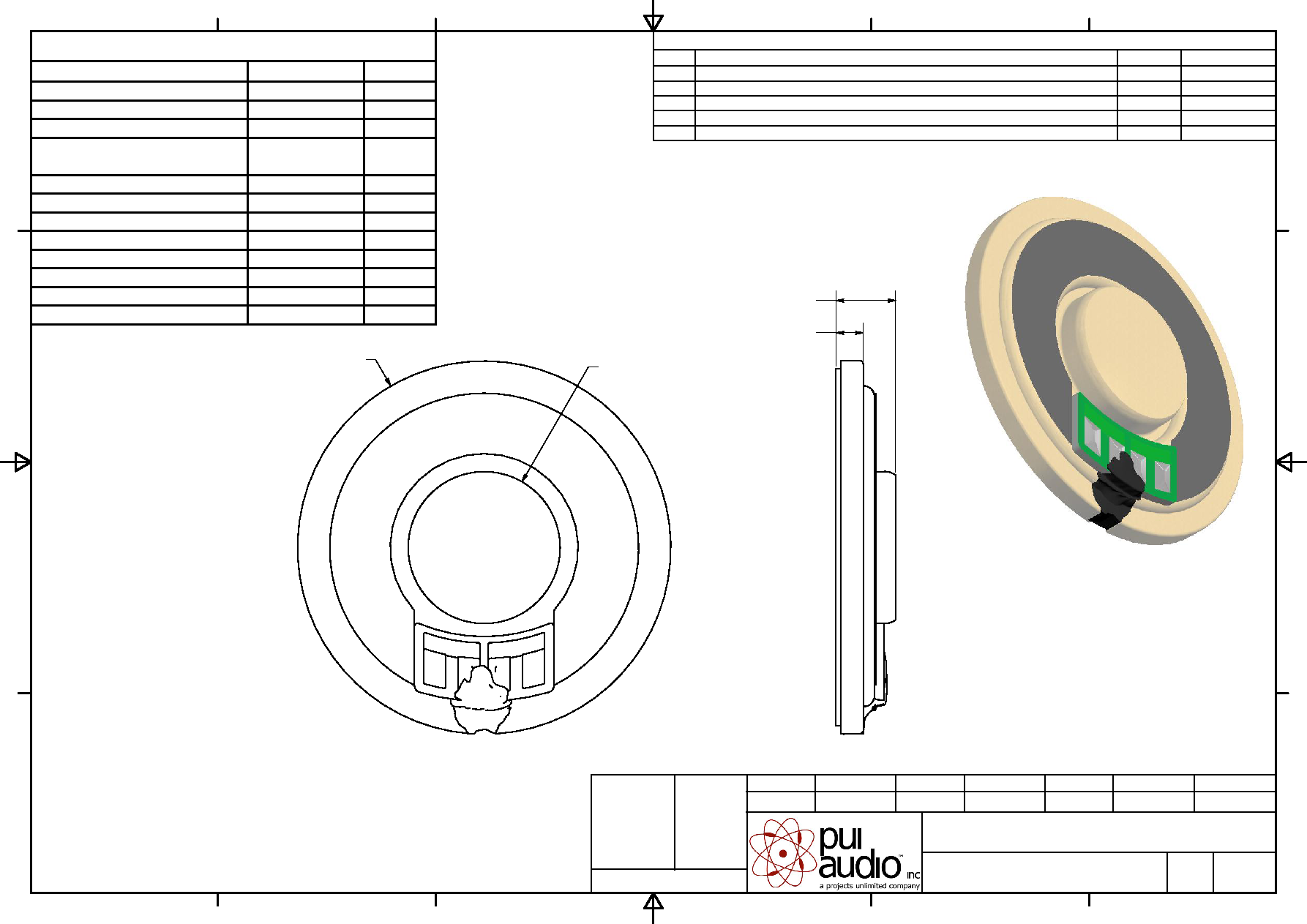

Speaker
AS03008MR-R
J.A.F.
B.R.
E.P.
11/6/2008
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
11/8/2005
Date
11/8/2005
Date
11/8/2005
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE 0.5 AND
ANGLES ARE 3 .
AS03008MR-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
11/8/2005
A
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
11/6/2008
B.R.
B
REVISED OPERATING TEMP AND DIMENSIONS
11/1/2013
M.L.
C
REVISED MAGNET DIAMETER TO 12.9mm
5/24/2016
M.L.
D
REVISED SPL RATING DISTANCE FROM 1M TO 50CM
8/18/2017
M.V.
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
0.5
W
MAX INPUT POWER
1
W
IMPEDANCE
8
15%
OHM
OUTPUT SPL @ 1W/50CM
(AT 0.8, 1.0, 1.2, 1.5 kHz)
82
3
dBA
DISTORTION (MAX.)
5%
-
RESONANT FREQUENCY
650
20%
Hz
FREQUENCY RANGE
650 ~ 15,000
Hz
HOUSING MATERIAL
METAL
-
CONE MATERIAL
MYLR
-
MAGNET MATERIAL
Nd-Fe-B
-
OPERATING TEMPERATURE
-20 ~ +60
C
WEIGHT
5.2
grams
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 20011/65/EU COMPLIANT.
30
0.2
12.9
0.2
2.2
0.2
4.8
0.3
_
+
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
2003, Projects Unlimited Inc.
