Rocker Switch

Single and Double Pole

WR Series

Features

•

Lighted and non-lighted

•

Rugged design for 2-pole high current applications

•

RoHS compliant

•

Minimum 10,000 operations mechanical life

Standard Parts

1

North America and Europe

Europe

WRG32F2FBBRLN

WRG32F2FBGLN

WRG32F5FBBNN

WRG32F2BBBNN

WRG32F2FBGEN

WRG32F7BWWKN

WRG32F2FBBBNN

WRG32F2FBRLN

WRG32F2BBGEN

WRG32F2FBREN

WRG32F7BWWNN

WRG32F2BBGLN

WRG32F7BBBKN

WRG33F2BBBNN

WRG32F2BBREN

WRG32F7BBBNN

WRG34F2BBBNN

For configurable part numbers that are not listed above, not listed in your region, or for custom part numbers, contact the factory or

your distributor.

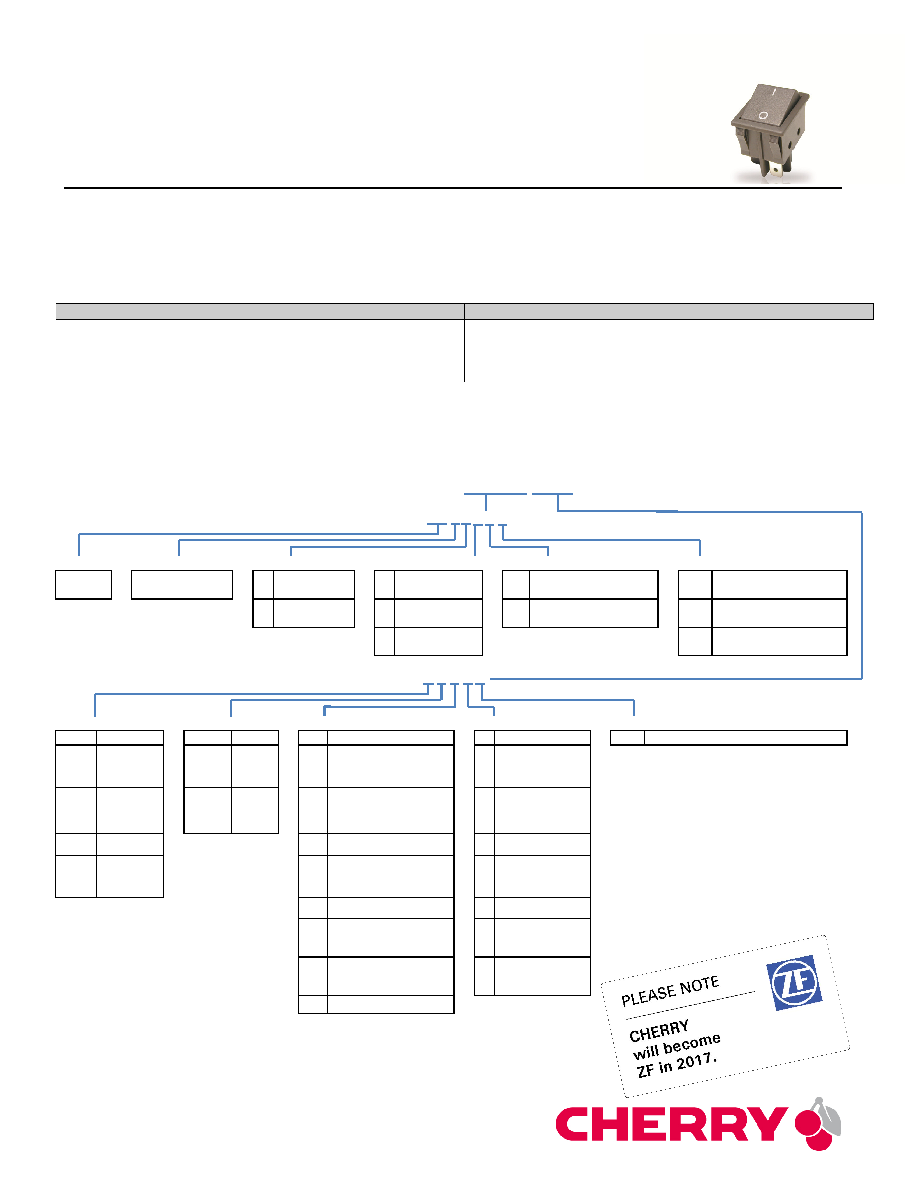

Part Number Breakdown

WRG32F2FBBNN

WR G 3 2 F 2

Series

Contact Rating

2

Circuitry

Switch Function

Terminal Type

Actuator Type

WR

G

2

Single pole

2

ON-OFF

A

4.8 mm (0.187”)

quick connect

2

Curved

3

Double pole

3

ON-ON

F

6.4 mm (0.250”)

quick connect

5

Flat

6

(ON)-ON

7

Curved – Dual

actuators

Actuator Marking

Housing Color

Actuator Color

Lighted

Body Type

B

Blank

B

Black

A

Amber

N

Non-lighted

N

No rocker boot

C

HI

LO

W

White

B

Black

E

250 VAC bulb

D

ON

OFF

Y

Grey

C

Brown

L

125 VAC bulb

E

O

I

G

Green

H

12 VDC LED

3

F

I

O

M

Yellow

G

6 VDC LED

3

R

Red

F

5 VDC LED

3

U

Blue

K

250 VAC bulb,

small round red

lens on rocker

W

White

J

125 VAC bulb,

small round red

lens on rocker

Y

Grey
