AWP252010AF-R68M Datasheet(PDF) 1 Page - TAI-TECH Advanced Electronics Co., Ltd.

Part # AWP252010AF-R68M
Description  Power Inductors
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  TAI-TECH [TAI-TECH Advanced Electronics Co., Ltd.]
Direct Link  https://www.tai-tech.com.tw/en/
Logo TAI-TECH - TAI-TECH Advanced Electronics Co., Ltd.

AWP252010AF-R68M Datasheet(HTML) 1 Page - TAI-TECH Advanced Electronics Co., Ltd.

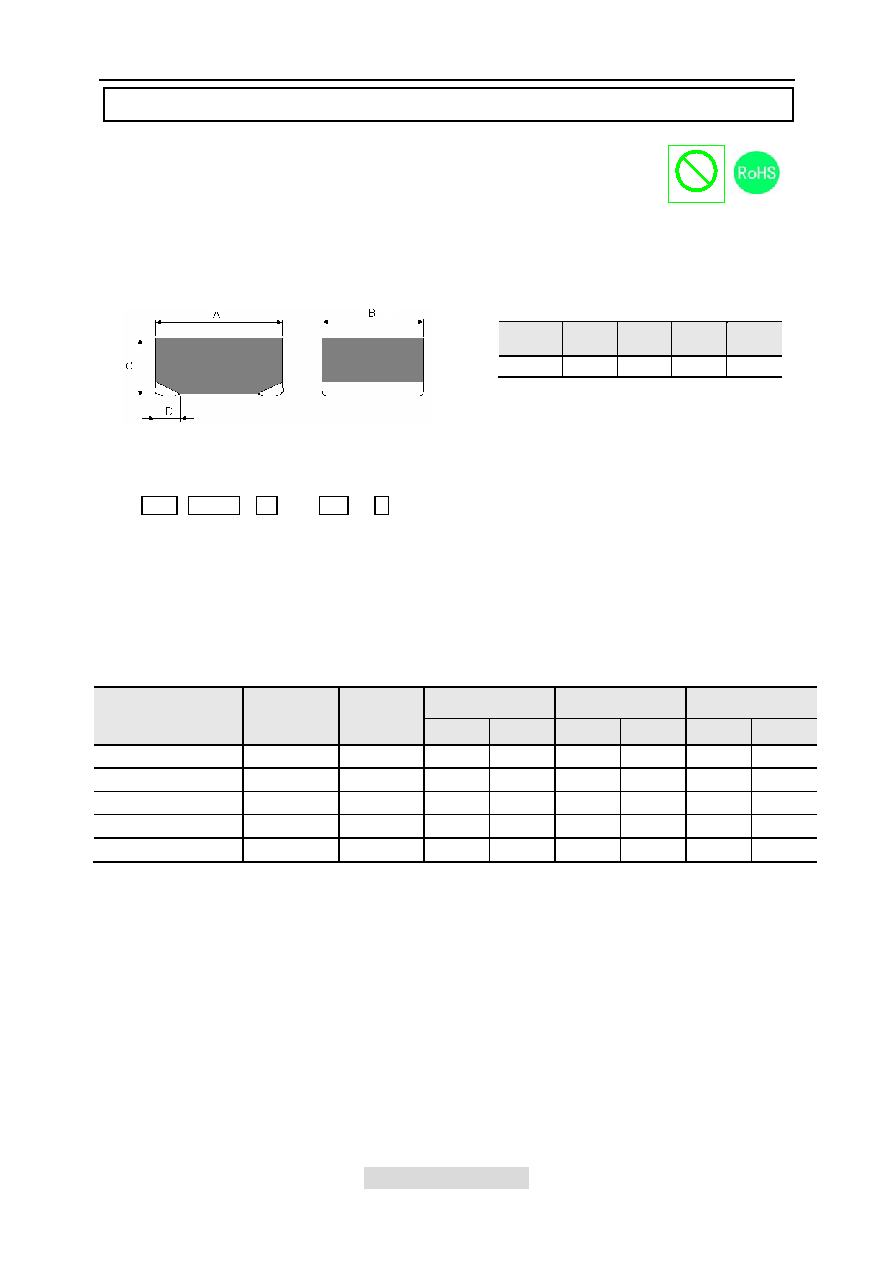

  AWP252010AF-R68M Datasheet HTML 1Page - TAI-TECH Advanced Electronics Co., Ltd. AWP252010AF-R68M Datasheet HTML 2Page - TAI-TECH Advanced Electronics Co., Ltd.
Zoom Inzoom in Zoom Outzoom out
 1 / 2 page
background image
TAI-TECH
www.tai-tech.com.tw
AWP 252010
AF
-
R47
M
A
B
C
D
E
A: Series
B: Dimension
C: Material
D: Inductance
R47=0.47uH
E: Inductance Tolerance
M=±20%
1. Features
2. Dimensions
3. Part Numbering
4. Specification
Power Inductors
AWP252010AF-Series
1. This specification applies Low Profile Power Inductors.
2. 100% Lead(Pb) & Halogen-Free and RoHS compliant.
3. Operating Temperature:-40~+105℃(Including self-temperature rise)
Size
A(mm)
B(mm)
C(mm)
D(mm)
252010
2.5±0.2
2.0±0.2
1.0 max.
0.5±0.3
TAI-TECH
Part Number
Inductance
(uH)
Test
Frequency
(Hz)
DCR (Ω)
I sat (A)
I rms (A)
max.
typ.
max.
typ.
max.
typ.
AWP252010AF-R47M
0.47±20%
1V/1M
0.048
0.040
4.00
4.50
3.20
3.60
AWP252010AF-R68M
0.68±20%
1V/1M
0.070
0.058
3.70
4.00
2.90
3.20
AWP252010AF-1R0M
1.00±20%
1V/1M
0.079
0.066
2.70
3.00
2.50
2.70
AWP252010AF-2R2M
2.20±20%
1V/1M
0.168
0.140
1.90
2.10
1.50
1.80
AWP252010AF-4R7M
4.70±20%
1V/1M
0.324
0.270
1.30
1.50
1.10
1.30
Note:
Isat：Based on inductance change （△L/L0：≦-30%）@ ambient temp. 25℃
Irms：Based on temperature rise （△T：40℃.）Max
Halogen-free
Halogen
