Page 5

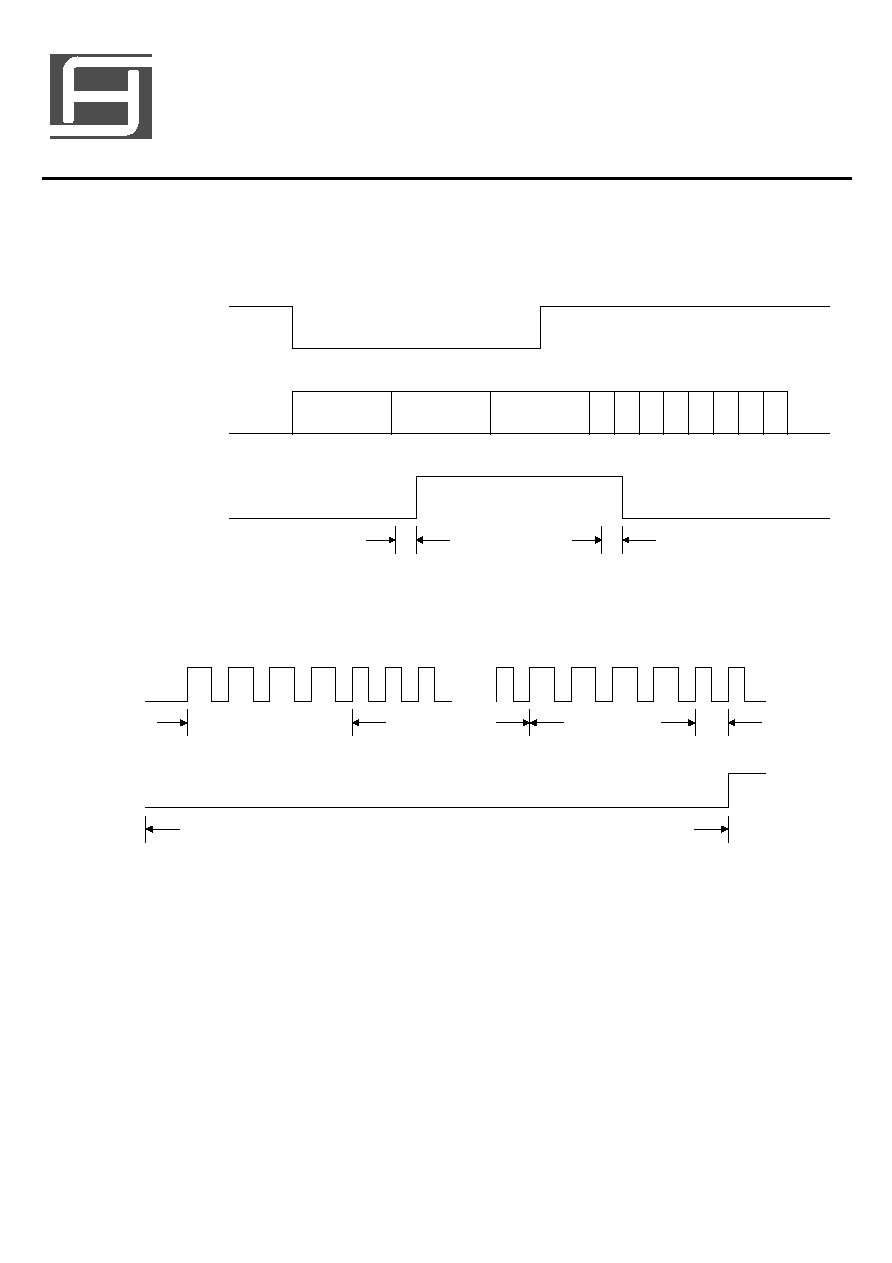

3. Encode/Decode Timing
(A)
Any function key
1st word
3rd word
2nd word
1
4
3
2
8
7
6
5
Decode output
Encode output
end code
9ms
9ms
(B)
SI
Decode output
••••••
8 msec
8 msec
1ms
(n) W1
T
T=17ms+(nW1)x1ms
V2.0 Mar 8,2002
SM-T2/SM-R2
REMOTE CONTROLLER
WITH FIVE FUNCTION
