8 / 14 page

PDS-002760 Rev 01

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

175 New Boston Street • Woburn, MA 01801

SST-90-R Product Datasheet

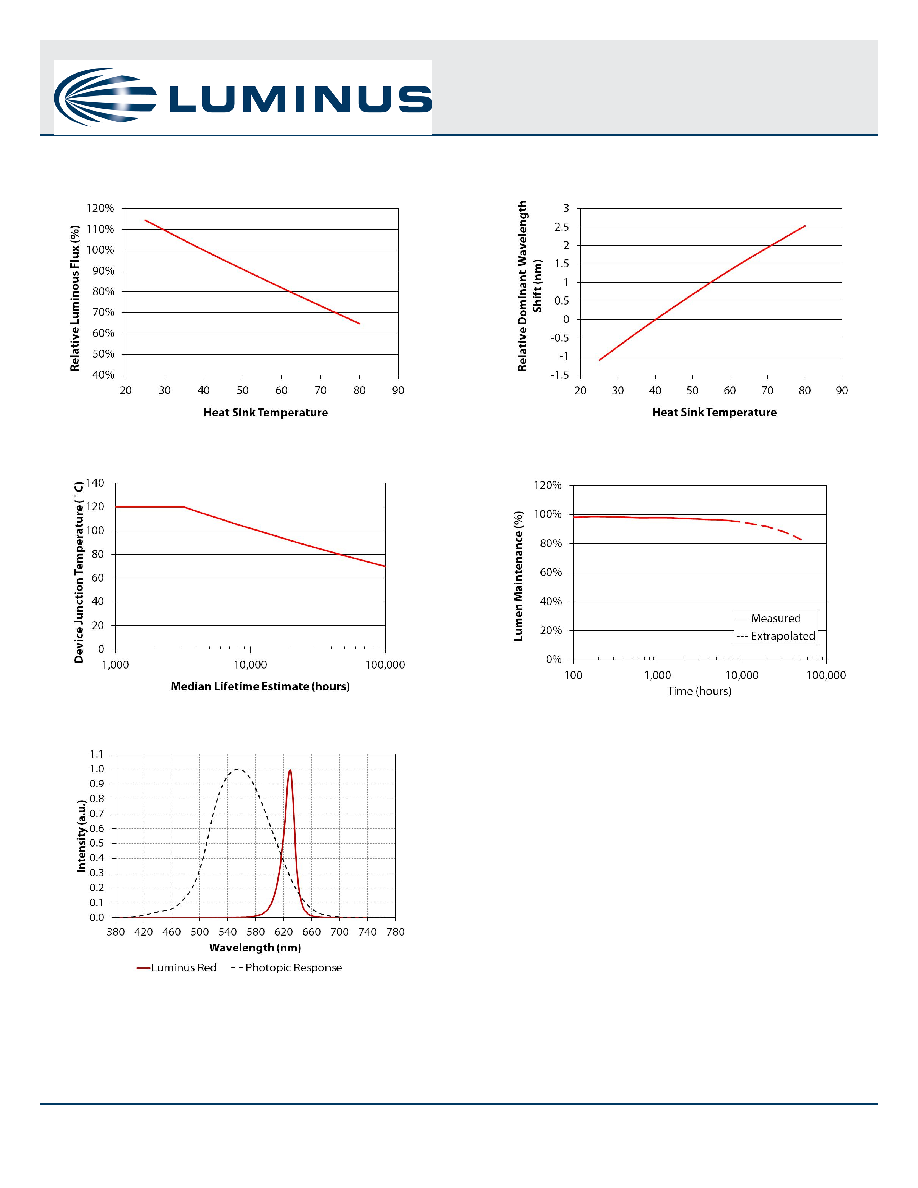

Light Output and Spectral Characteristics Over Heat SinkTemperature

Note 13: Median lifetime estimate as a function of junction temperature at 0.35A/mm2 in continuous operation. Lifetime defined as time to

70% of initial intensity. Based on preliminary lifetime test data. Data can be used to model failure rate over typical product lifetime.

Note 14: Lumen maintenance vs. time at 0.35A/mm2in continuous operation and junction temperature of 70ºC.

Note 15: Typical spectrum at current density of 0.35 A/mm2 in continuous operation.

Median Lifetime Estimate vs.T

Lumen Maintenance14

Typical Spectrum15
