BUL804 Datasheet(PDF) 4 Page - STMicroelectronics

Part # BUL804
Description  HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

BUL804 Datasheet(HTML) 4 Page - STMicroelectronics

  BUL804 Datasheet HTML 1Page - STMicroelectronics BUL804 Datasheet HTML 2Page - STMicroelectronics BUL804 Datasheet HTML 3Page - STMicroelectronics BUL804 Datasheet HTML 4Page - STMicroelectronics BUL804 Datasheet HTML 5Page - STMicroelectronics BUL804 Datasheet HTML 6Page - STMicroelectronics BUL804 Datasheet HTML 7Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 4 / 7 page
background image
BUL804
4/7

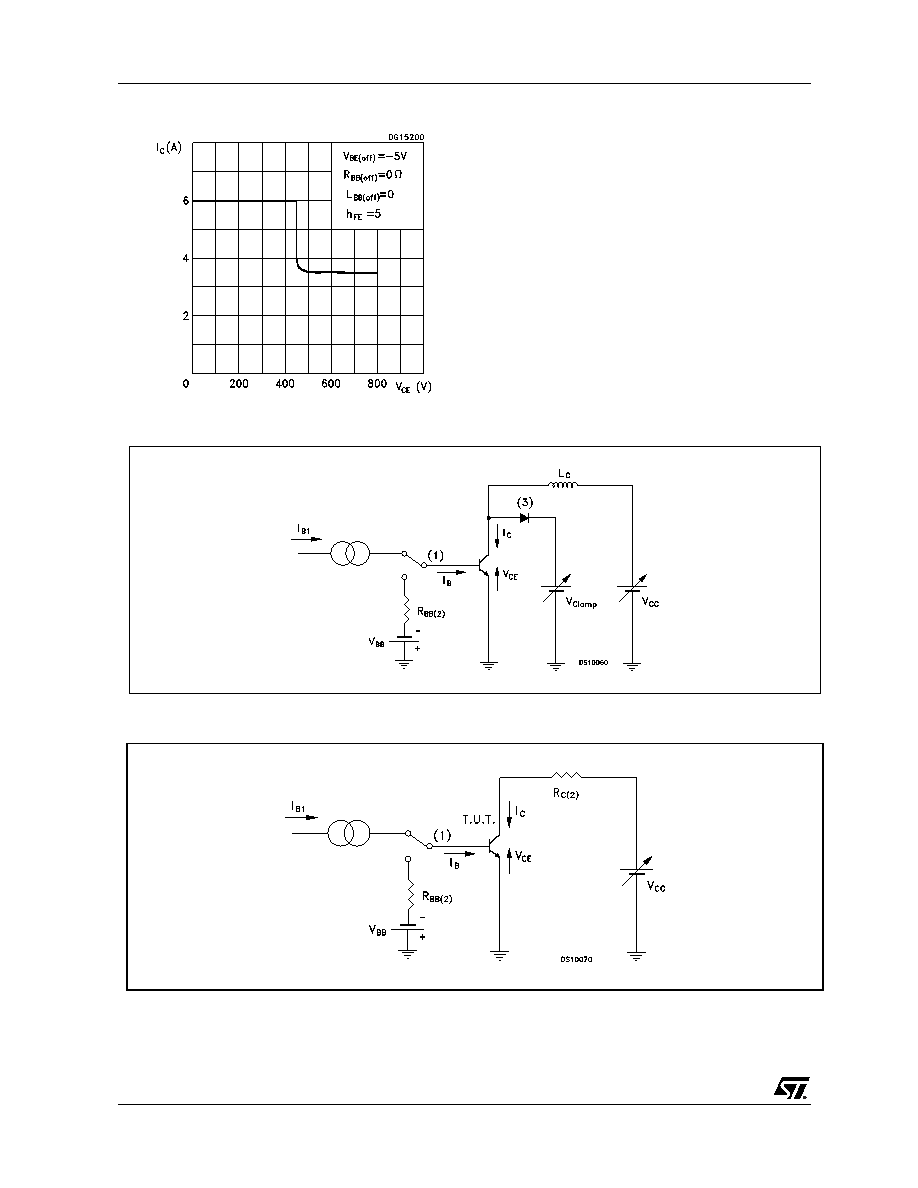

Figure 9: Reverse Biased Operating Area
Figure 10: Inductive Load Switching Test Circuit
Figure 11: Restistive Load Switching Test Circuit
1) Fast electronic switch
3) Fast recovery rectifier
2) Non-inductive Resistor
2) Non-inductive Resistor
1) Fast electronic switch
