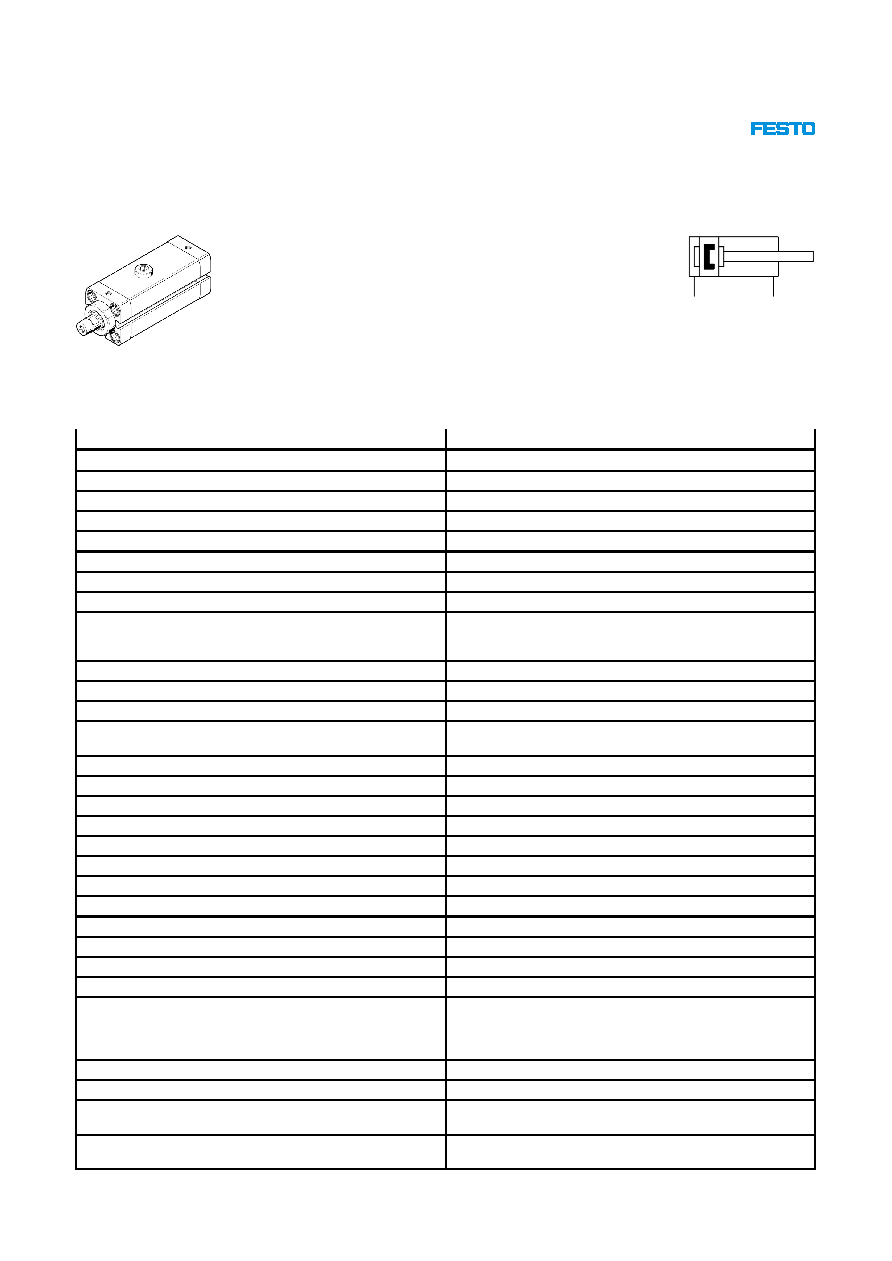

Swing clamp cylinder

CLR-25-10-R-P-A-K11-R8

Part number: 535483

Data sheet

Feature

Value

Complete stroke

23 mm

Piston diameter

25 mm

Piston rod thread

M6

Swivel angle

90 deg +/- 3 deg

Clamping stroke

10 mm

Type code

CLR

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Design

Piston rod

Piston

Cylinder barrel

Position sensing

For proximity sensor

Swivel direction

Right

Symbol

00991217

Variants

Welding splatter protection

Dust protection

Operating pressure

2 bar ... 10 bar

Mode of operation

Double-acting

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Ambient temperature

-10 °C ... 80 °C

Effective clamping force at 2 bar

63 N

Effective clamping force at 4 bar

127 N

Effective clamping force at 6 bar

188 N

Max. clamping finger screw tightening torque

12 Nm

Theoretical clamping force at 6 bar

227 N

Product weight

410 g

Type of mounting

With through-hole

Optionally:

With accessories

With internal thread

Pneumatic connection

M5

Scraper material

PPS

Flange screws material

Steel

Galvanized

Cover material

Coated

Wrought aluminum alloy

11/20/20 - Subject to change - Festo AG & Co. KG

1/2
