Pinouts and pin description
STM32L412xx
52/192
DS12469 Rev 8

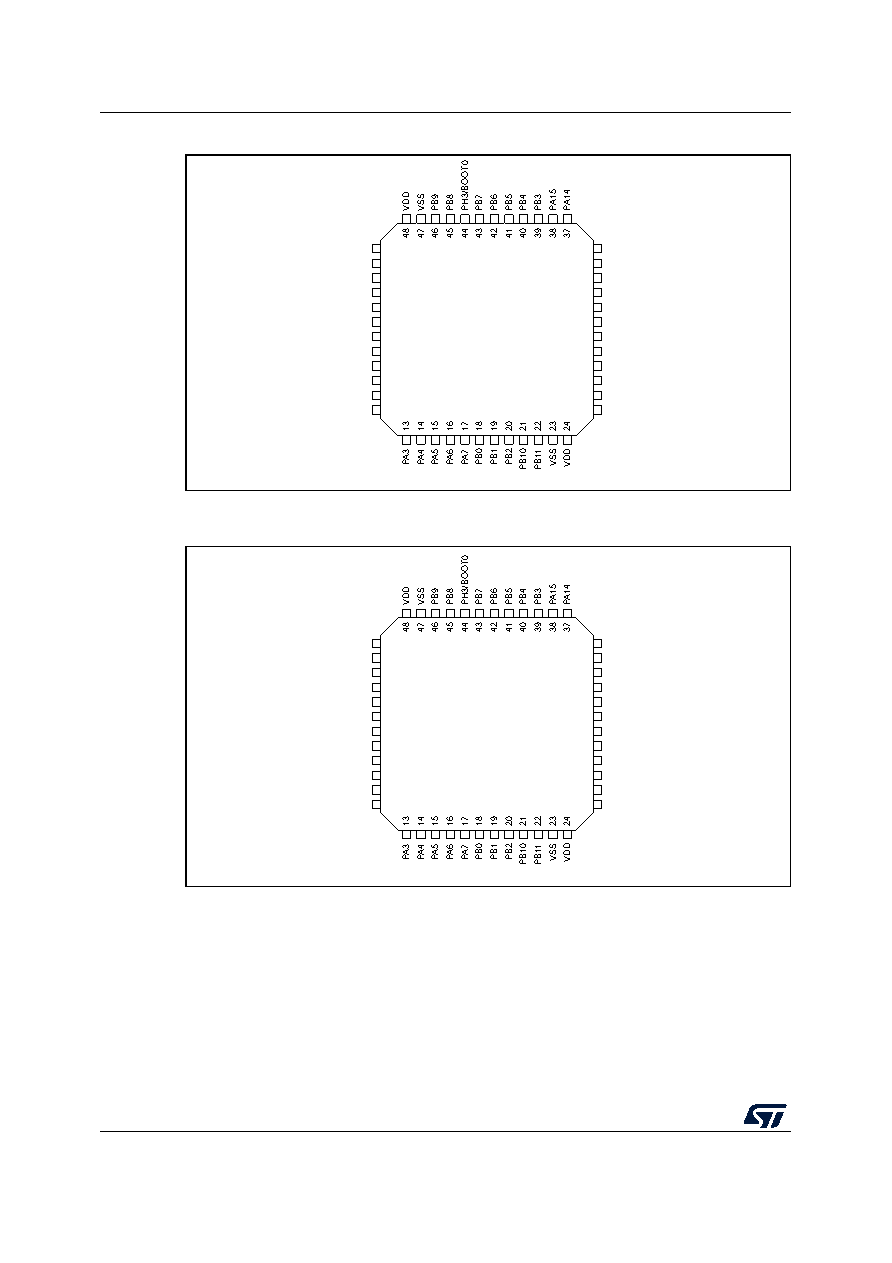

Figure 9. STM32L412Cx LQFP48 pinout(1)
1. The above figure shows the package top view.
Figure 10. STM32L412Cx UFQFPN48 pinout(1)
1. The above figure shows the package top view.
MSv46916V1
LQFP48
1
2
3
4
5
6
7
8
9
10
11
12
VBAT
PC13
PC14/OSC32_IN
PC15/OSC32_OUT
PH0/OSC_IN
PH1/OSC_OUT
NRST
VSSA
VDDA
PA0/CK_IN
PA1
PA2
36
35
34
33
32
31
30
29
28
27
26
25
VDDUSB
VSS
PA13
PA12
PA11
PA10
PA9
PA8
PB15
PB14
PB13
PB12
MSv46917V1
UFQFPN48
1
2
3
4
5
6
7
8
9
10
11
12
VBAT
PC13
PC14/OSC32_IN
PC15/OSC32_OUT
PH0/OSC_IN
PH1/OSC_OUT
NRST
VSSA
VDDA
PA0/CK_IN
PA1
PA2
36
35
34
33
32
31
30
29
28
27
26
25
VDDUSB
VSS
PA13
PA12
PA11
PA10
PA9
PA8
PB15
PB14
PB13
PB12
