Pinouts and pin description
STM32L412xx
54/192
DS12469 Rev 8

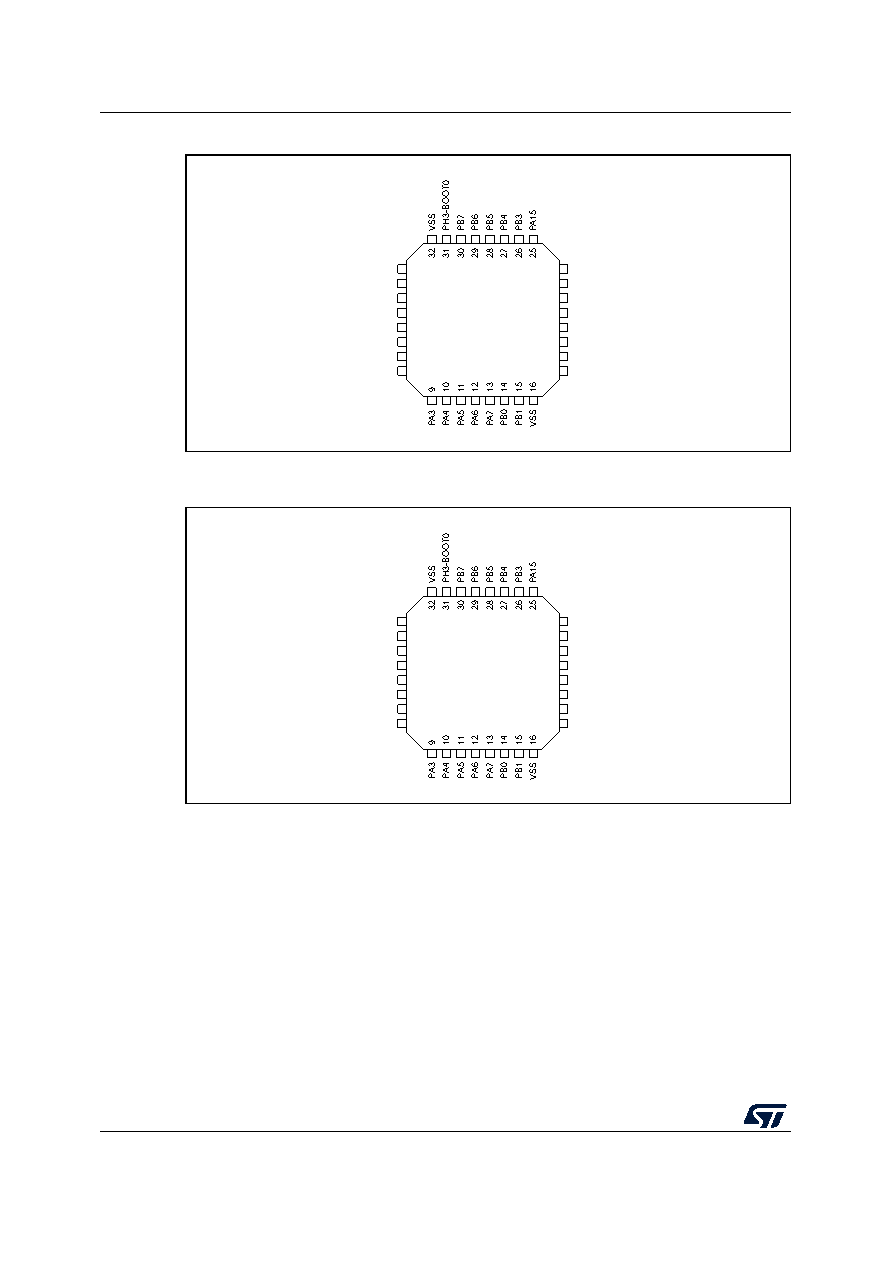

Figure 13. STM32L412Kx LQFP32 pinout(1)
1. The above figure shows the package top view.
Figure 14. STM32L412Kx UFQFPN32 pinout(1)
1. The above figure shows the package top view.
MSv46914V1
LQFP32
1
2
3
4
5
6
7
8
VDD
PC14-OSC32_IN
PC15-OSC32_OUT
NRST
VDDA/VREF+
PA0-CK_IN
PA1
PA2
24
23
22
21
20
19
18
17
PA14
PA13
PA12
PA11
PA10
PA9
PA8
VDD
MSv46915V1
UFQFPN32
1
2
3
4
5
6
7
8
VDD
PC14-OSC32_IN
PC15-OSC32_OUT
NRST
VDDA/VREF+
PA0-CK_IN
PA1
PA2
24
23
22
21
20
19
18
17
PA14
PA13
PA12
PA11
PA10
PA9
PA8
VDD
