Electrical characteristics

STM32L412xx

118/192

DS12469 Rev 8

Note:

For information on selecting the crystal, refer to the application note AN2867 “Oscillator

design guide for ST microcontrollers” available from the ST website www.st.com.

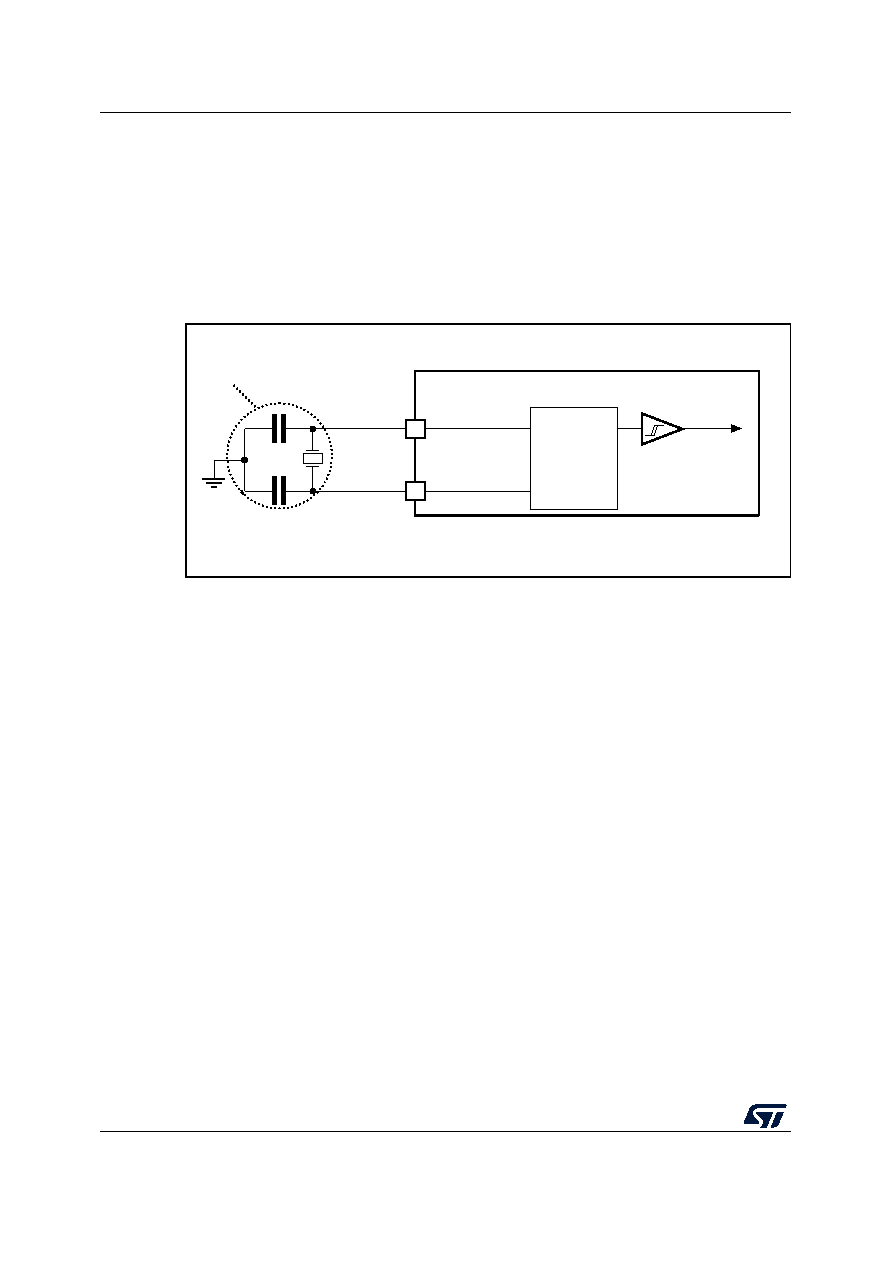

Figure 24. Typical application with a 32.768 kHz crystal

Note:

An external resistor is not required between OSC32_IN and OSC32_OUT and it is forbidden

to add one.

1. Guaranteed by design.

2. Refer to the note and caution paragraphs below the table, and to the application note AN2867 “Oscillator design guide for

ST microcontrollers”.

tSU(LSE) is the startup time measured from the moment it is enabled (by software) to a stabilized 32.768 kHz oscillation is

reached. This value is measured for a standard crystal and it can vary significantly with the crystal manufacturer

MS30253V2

OSC32_IN

OSC32_OUT

Drive

programmable

amplifier

fLSE

32.768 kHz

resonator

Resonator with integrated

capacitors

CL1

CL2
