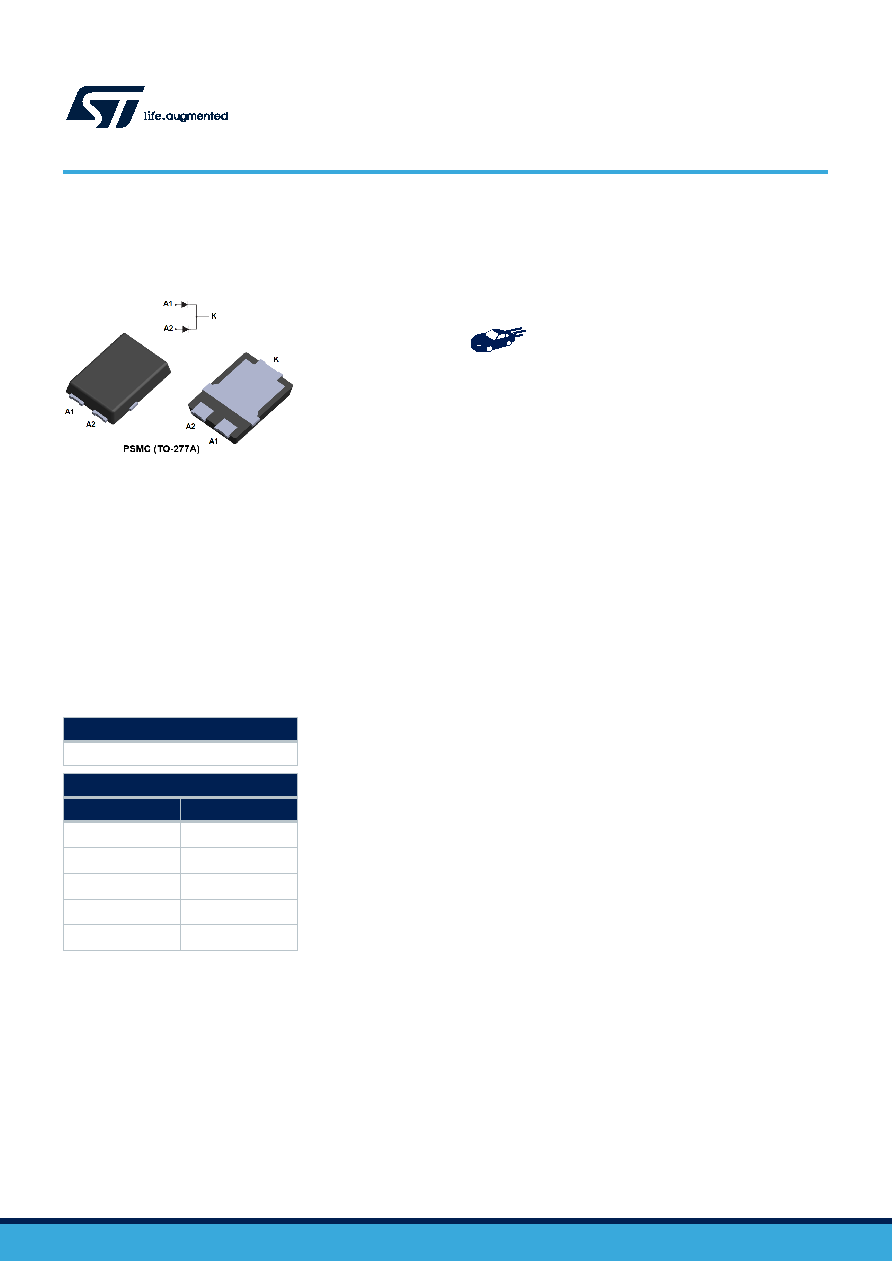

STTH602CSFY datasheet(1/10 Pages) STMICROELECTRONICS

Part #	STTH602CSFY

Description	Automotive 200 V, dual 3 A ultrafast rectifier

PDF	10 Pages

Scroll/Zoom	100%

Manufacturer	STMICROELECTRONICS [STMicroelectronics]

Direct Link	http://www.st.com

Logo

1 / 10 page

Features

•

AEC-Q101 qualified

•

PPAP capable

•

175 °C maximum operation junction temperature

•

VRRM guaranteed from -40 °C to 175 °C

•

High surge current capability

•

ECOPACK2 compliant component

Application

•

Reverse polarity protection in E.C.U

•

DC/DC converters

•

Freewheeling diodes

•

LED Lighting

Description

The STTH602CSFY has been developed for applications requiring an optimized VF

and reverse recovery characteristics.

These characteristics make it ideal for use in secondary rectification functions, such

as DC/DC converters or lighting applications.

Product status link

STTH602CSFY

Product summary

Symbol

Value

IF(AV)

2 X 3 A

VRRM

200 V

trr(max)

24 ns

Tj (max.)

175 °C

VF (typ.)

0.80 V

Automotive 200 V, dual 3 A ultrafast rectifier

STTH602CSFY

Datasheet

DS13549 - Rev 1 - November 2020

For further information contact your local STMicroelectronics sales office.

www.st.com
