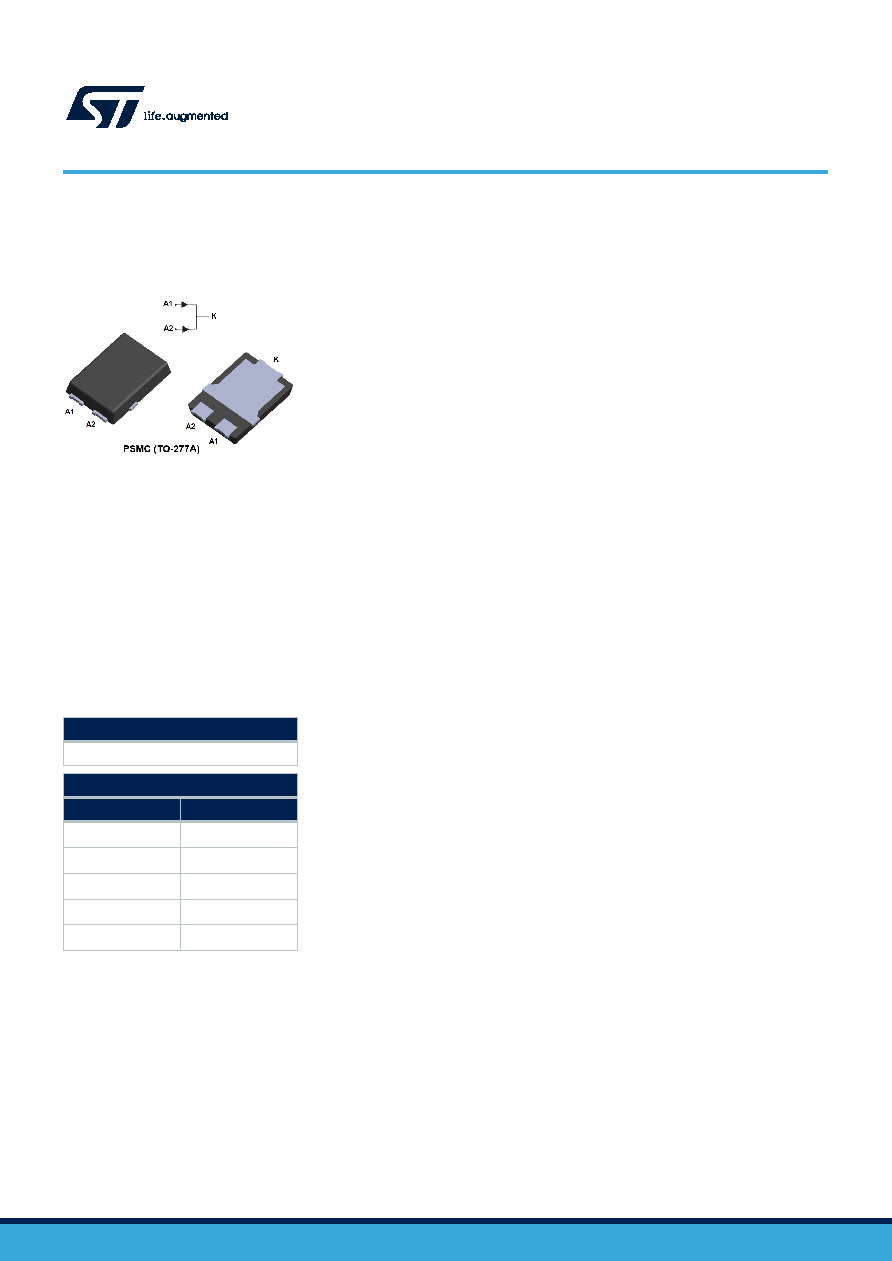

1 / 10 page

Features

•

175 °C maximum operation junction temperature

•

High surge current capability

•

ECOPACK2 compliant component

Application

•

DC/DC converters

•

Freewheeling diodes

•

LED Lighting

Description

The STTH1002CSF has been developed for applications requiring an optimized VF

and reverse recovery characteristics.

These characteristics make it ideal for use in secondary rectification functions, such

as DC/DC converters or lighting applications.

Product status link

STTH1002CSF

Product summary

Symbol

Value

IF(AV)

2 X 5 A

VRRM

200 V

trr(max)

27 ns

Tj (max.)

175 °C

VF (typ.)

0.79 V

200 V, dual 5 A ultrafast rectifier

STTH1002CSF

Datasheet

DS13535 - Rev 1 - October 2020

For further information contact your local STMicroelectronics sales office.

www.st.com
