MODEL: 10PP

10PP SPECIFICATIONS

ES-0861 Rev.9 Page 1/4

http://www.m-system.co.jp/

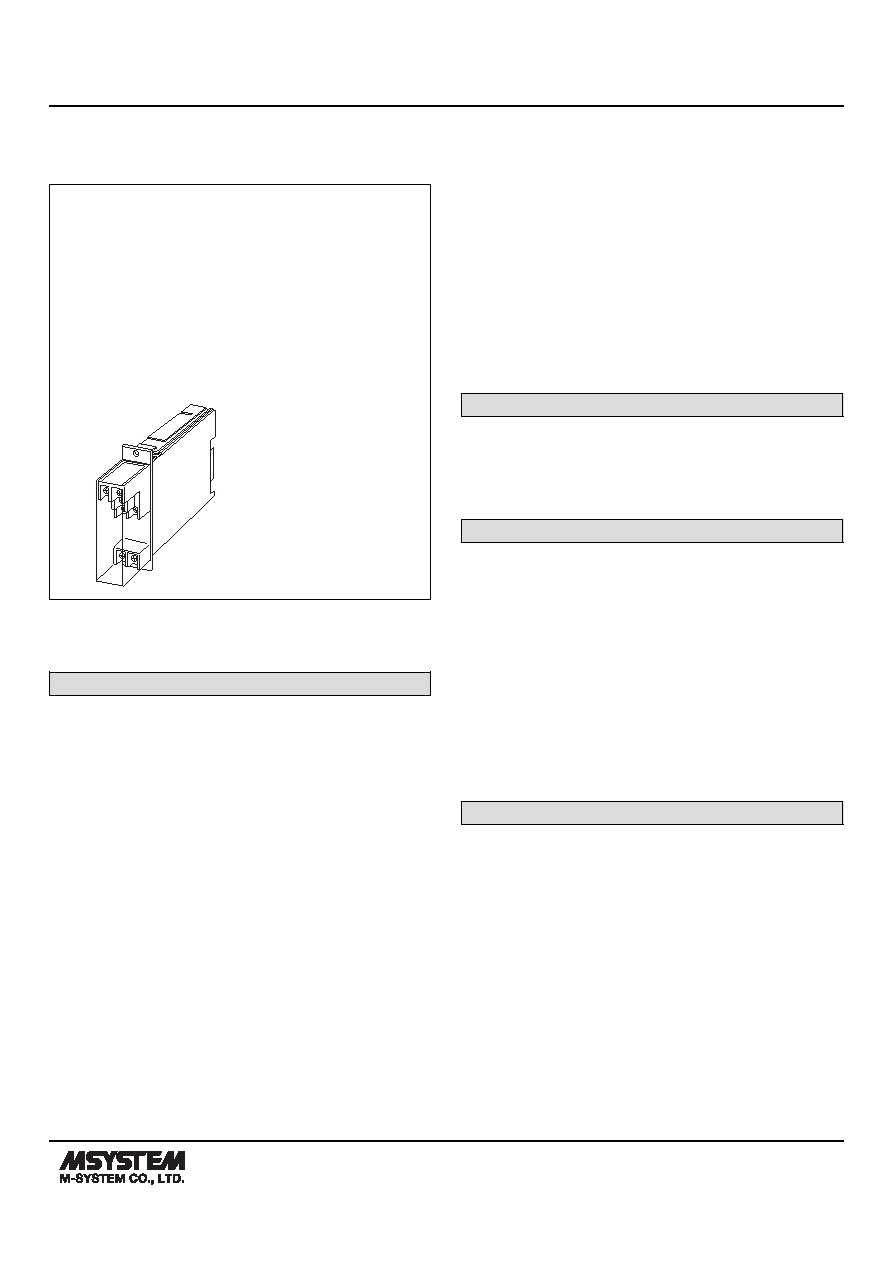

High-density Signal Conditioners 10-RACK

PULSE ISOLATOR

Functions & Features

• Galvanically isolating pulse rate signals

• Input frequency = output frequency

• Various outputs (relay, open collector and voltage pulses)

• Optional second channel output available at the front

terminals and at the Standard Rack connector

Typical Applications

• Isolating field pulse signals in order to reduce noises

• Changing e.g. dry contact signal to e.g. 5 V signals

MODEL: 10PP–[1][2][3]–R[4]

ORDERING INFORMATION

• Code number: 10PP-[1][2][3]-R[4]

Specify a code from below for each of [1] through [4].

(e.g. 10PP-332-R/Q)

• Frequency range (e.g. 0 – 1000 Hz)

• Specify the specification for option code /Q

(e.g. /C01)

Note: Output 1 and 2 frequency is equal.

[1] INPUT

1: Mechanical contact (max. 30 Hz)

2: Open collector (max. 10 kHz)

3: Voltage pulse (max. 10 kHz)

[2] OUTPUT 1

1: Low frequency open collector (max. 30 Hz)

2: High frequency open collector (max. 10 kHz)

3: 5 V pulse (max. 10 kHz)

4: 12 V pulse (max. 10 kHz)

5: 24 V pulse (max. 10 kHz)

8: Photo MOSFET relay pulse (max. 30 Hz)

[3] OUTPUT 2

0: None

2: Open collector (max. 10 kHz)

POWER INPUT

DC Power

R: 24 V DC

(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[4] OPTIONS

blank: none

/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to M-System's web site.)

/C01: Silicone coating

/C02: Polyurethane coating

/C03: Rubber coating

GENERAL SPECIFICATIONS

Construction: Rack-mounted; terminal access via screw

terminals at the front and via card-edge connector at the

rear; terminal cover provided

Connection: M3.5 screw terminals (torque 0.8 N·m) and

card-edge connector

Power input: Supplied from card-edge connector

Screw terminal: Nickel-plated steel

Housing material: Flame-resistant resin (black)

Isolation: Input to output 1 to output 2 to power

Frequency range: Input and output are the same.

Chattering protection: Filter provided for mechanical

contact input

INPUT SPECIFICATIONS

Excitation: 12V DC ±2 V @ 30 mA; shortcircuit protection

■ Open Collector

Maximum frequency: 10 kHz

Pulse width time requirement: 10 μsec. min. for ON and OFF

Sensing: Approx. 12 V DC @ 3 mA

ON/OFF level: ≤ 200 Ω / 3.5 V for ON, ≥ 100 kΩ / 7 V for OFF

■ Mechanical Contact

Maximum frequency: 30 Hz

Pulse width time requirement: 10 msec. min. for ON and

OFF

Sensing: Approx. 12 V DC @ 3 mA

ON/OFF level: ≤ 200 Ω / 3.5 V for ON, ≥ 100 kΩ / 7 V for OFF

■ Voltage Pulse

Maximum frequency: 10 kHz

Pulse width time requirement: 10 μsec. min. for high and

low levels
