MODEL: 10MK

http://www.m-system.co.jp/

10MK SPECIFICATIONS

ES-0849 Rev.2 Page 2/3

Operating temperature: -5 to +55°C (23 to 131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Mounting: Standard Rack 10BXx

Weight: 200 g (0.44 lb)

PERFORMANCE in percentage of span

Accuracy: ±0.1 %

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

Response time: Approx. 25 msec. (0 – 90 %)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 500 V AC @ 1 minute

(input to output 1 to output 2 to power)

1500 V AC @ 1 minute (input or output or power to ground)

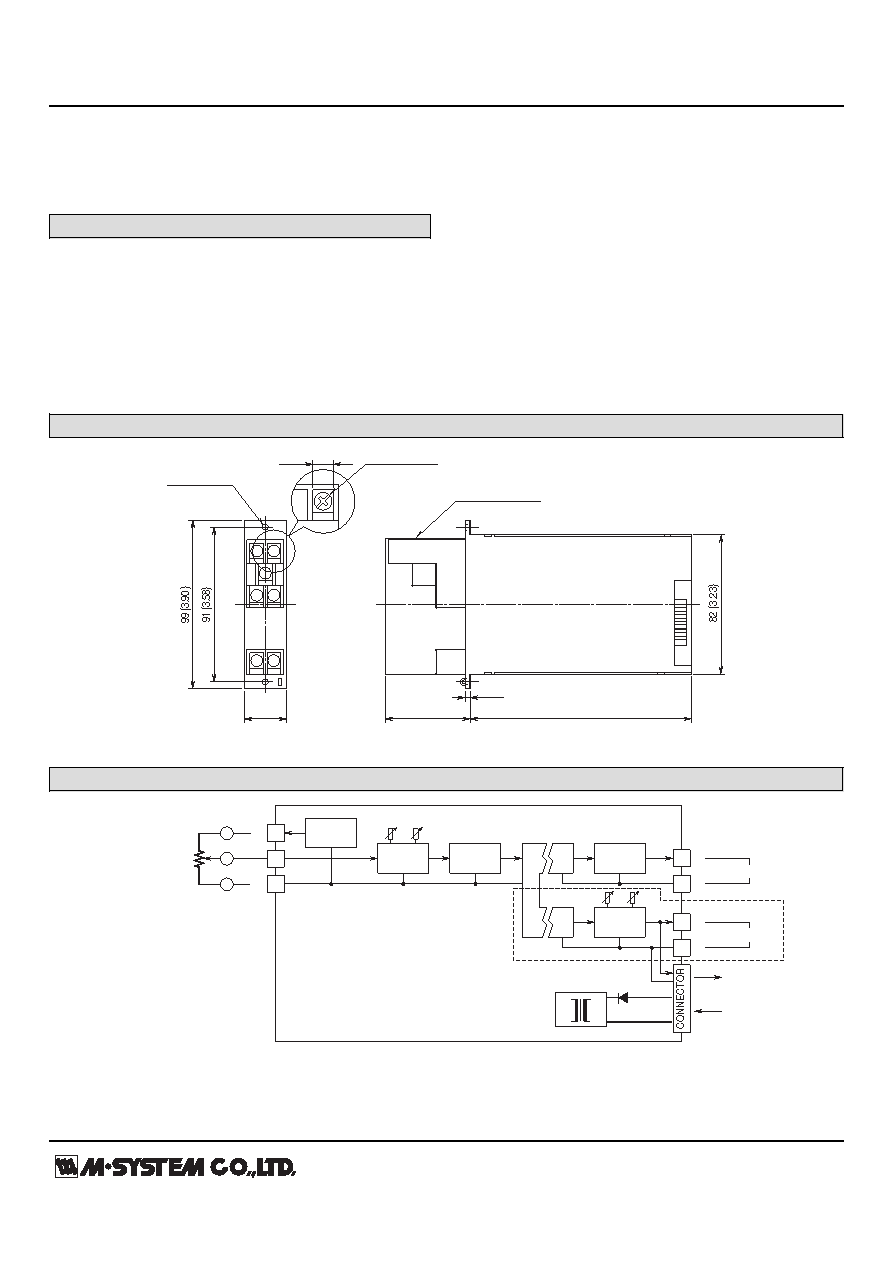

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

130 (5.12)

3 (.12)

51 (2.01)

2–4.3 (.17) dia.

MTG HOLE

TERMINAL COVER

7–M3.5 SCREW

8 (.31)

25 (.98)

1

2

3

5

6

7

8

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

+

–

+

–

Isolation

Output

Driver

OUTPUT 1

7

8

+

–

S

Z

Output

Driver

OUTPUT 2

5

6

*1 output type has the output 1 connected to the card-edge connector in parallel.

Remark 1) The section enclosed by broken line is only for 2nd output channel.

OUTPUT 2*

POWER

S

Z

Voltage/

Duty Cycle

Low Drift

Amplifier

1

2

3

2

1

POTENTIOMETER

max.

min.

3

Excitation

Circuit
