STCFSK Series

Metal Full Size Dip Clipped Sinewave (VC)TCXO

18.3mm x 11.7mm

Call: +1-949-783-7300 | Fax: +1-949-783-7301

Specifications are subject

to change without notice.

www.suntsu.com

Suntsu Electronics, Inc.

142 TECHNOLOGY DR., SUITE 150

IRVINE, CA 92618

All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.

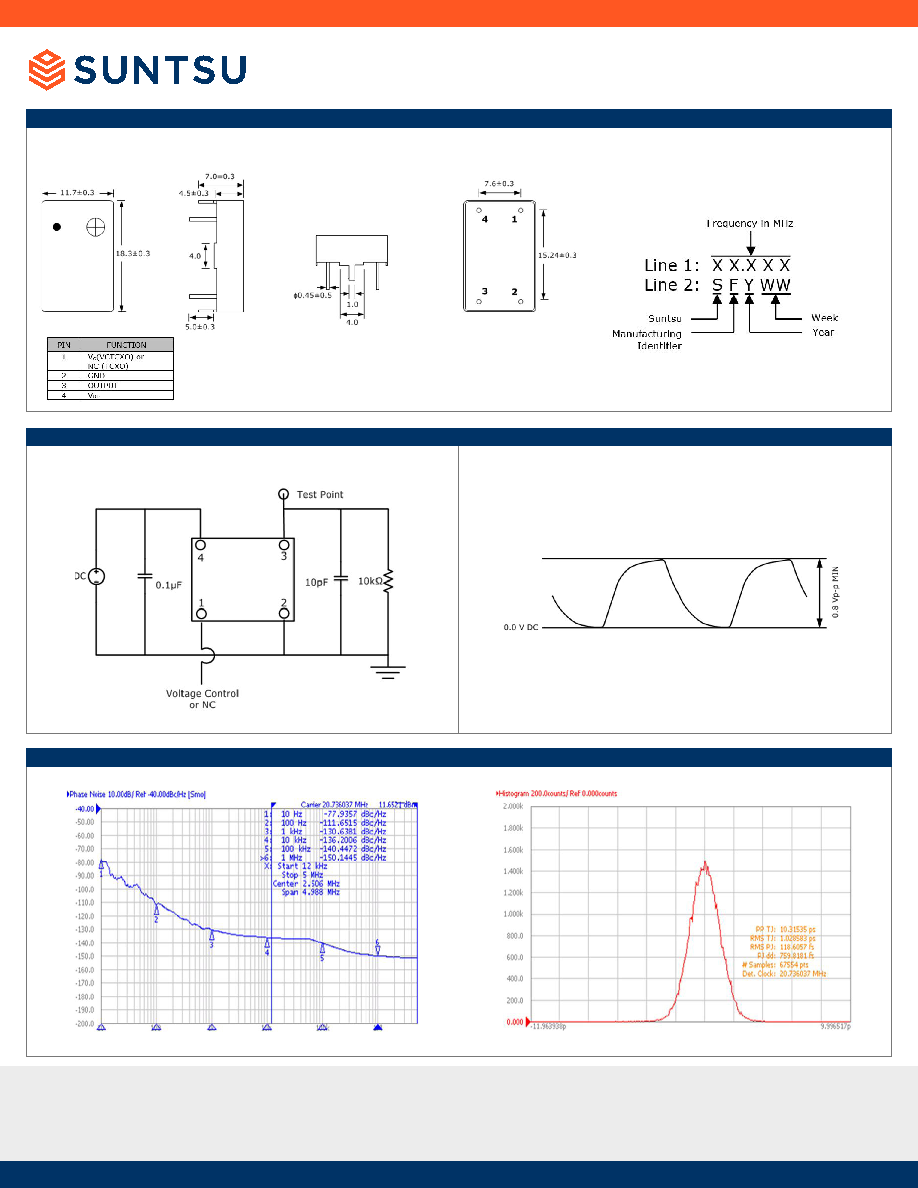

Outline Drawing & Part Marking

Test Circuit (Clipped Sinewave)

Typical Phase Noise And Jitter Performance (Measured By Agilent E5052A)

Waveform (Clipped Sinewave)

Frequency - 20.736MHz

Frequency - 20.736MHz
