MODEL: M60SWVS

M60SWVS SPECIFICATIONS

ES-8023 Rev.1 Page 2/4

http://www.m-system.co.jp/

interconnected signal conditioners must be 3 A or less.)

Operating temperature: -20 to +55°C (-4 to +131°F)

Operating humidity: 30 to 90 %RH (non-condensing)

Atmosphere: No corrosive gas or heavy dust

Mounting: DIN rail

Weight: 65 g (2.3 oz)

PERFORMANCE in percentage of span

Accuracy: ±0.1 %

I/O setting accuracy: ±0.2 %

Temp. coefficient: ±0.01 %/°C (±0.006 %/°F)

Response time (0 – 90 %): selectable with DIP SW

Standard: ≤ 500 msec.

Fast: ≤ 5 msec.

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500 V AC @1 minute

(input to output 1 to output 2 to power to ground)

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

EN 50581

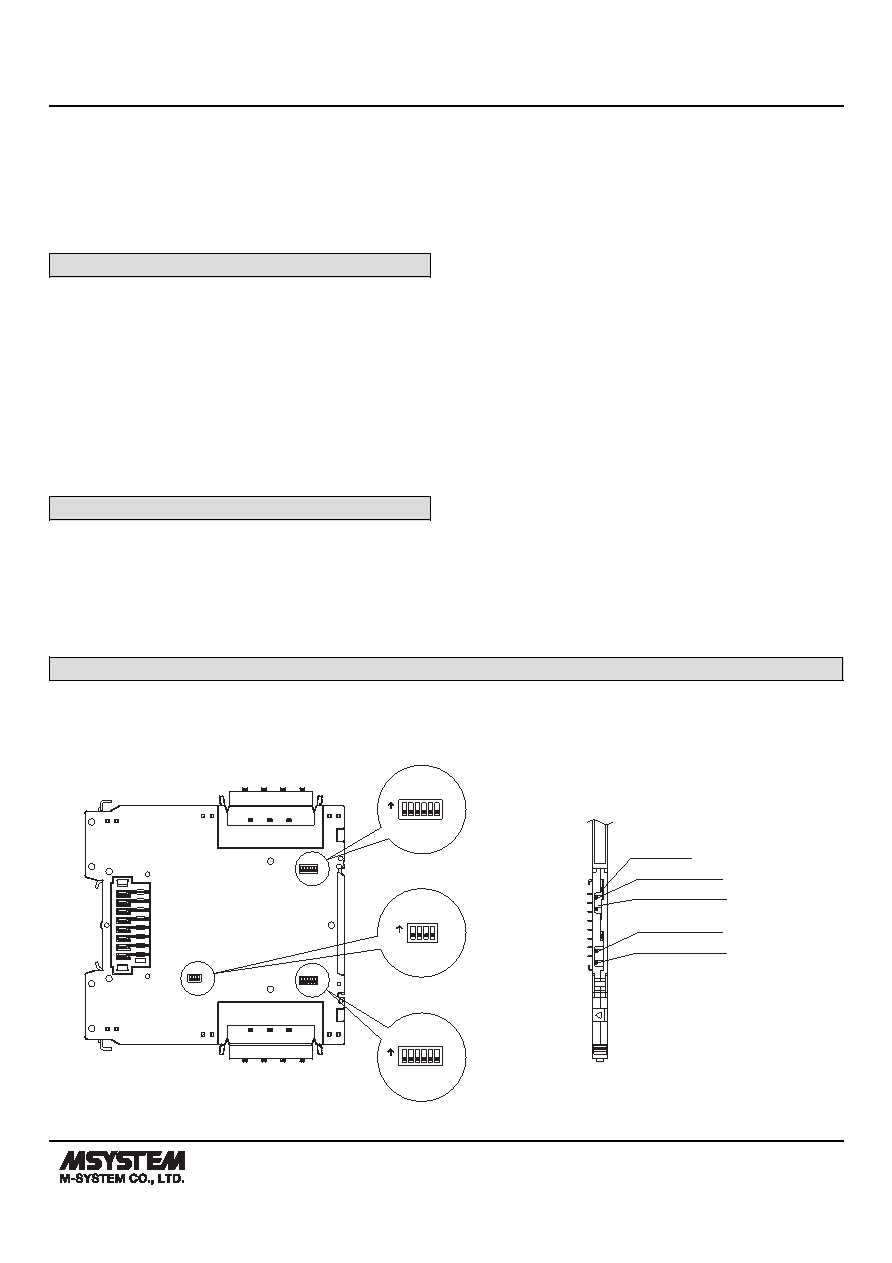

EXTERNAL VIEW

Refer to the instruction manual for the setting procedure.

Output 1 Zero adj.

Power LED

Output 1 Span adj.

Output 2 Zero adj.

Output 2 Span adj.

DIP SW for setting

output 1 range

1 2 3 4 5 6

SW1

SW1

On

DIP SW for setting

various functions

1 2 3 4

SW3

On

DIP SW for setting

output 2 range

1 2 3 4 5 6

SW2

On

SW2

SW3

■ FRONT VIEW (with the front cover removed)

■ LEFT SIDE VIEW
