MODEL: 18JDN

18JDN SPECIFICATIONS

ES-1825 Rev.7 Page 2/3

http://www.m-system.co.jp/

Operating humidity: 30 to 90 %RH (non-condensing)

Mounting: Standard Rack 18BXx or 18KBXx

Weight: 150 g (0.33 lb)

PERFORMANCE in percentage of span

Accuracy: ±0.25 % (input 1 – 100 %)

Temp. coefficient: ±0.03 %/°C (±0.02 %/°F)

Response time: ≤ 0.5 sec. (0 – 90 %)

Line voltage effect

Output signal: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1500 V AC @ 1 minute

(input to output 1 or output 2 or power)

500 V AC @ 1 minute

(output 1 to output 2 to power)

1500 V AC @ 1 minute

(input or output or power to ground)

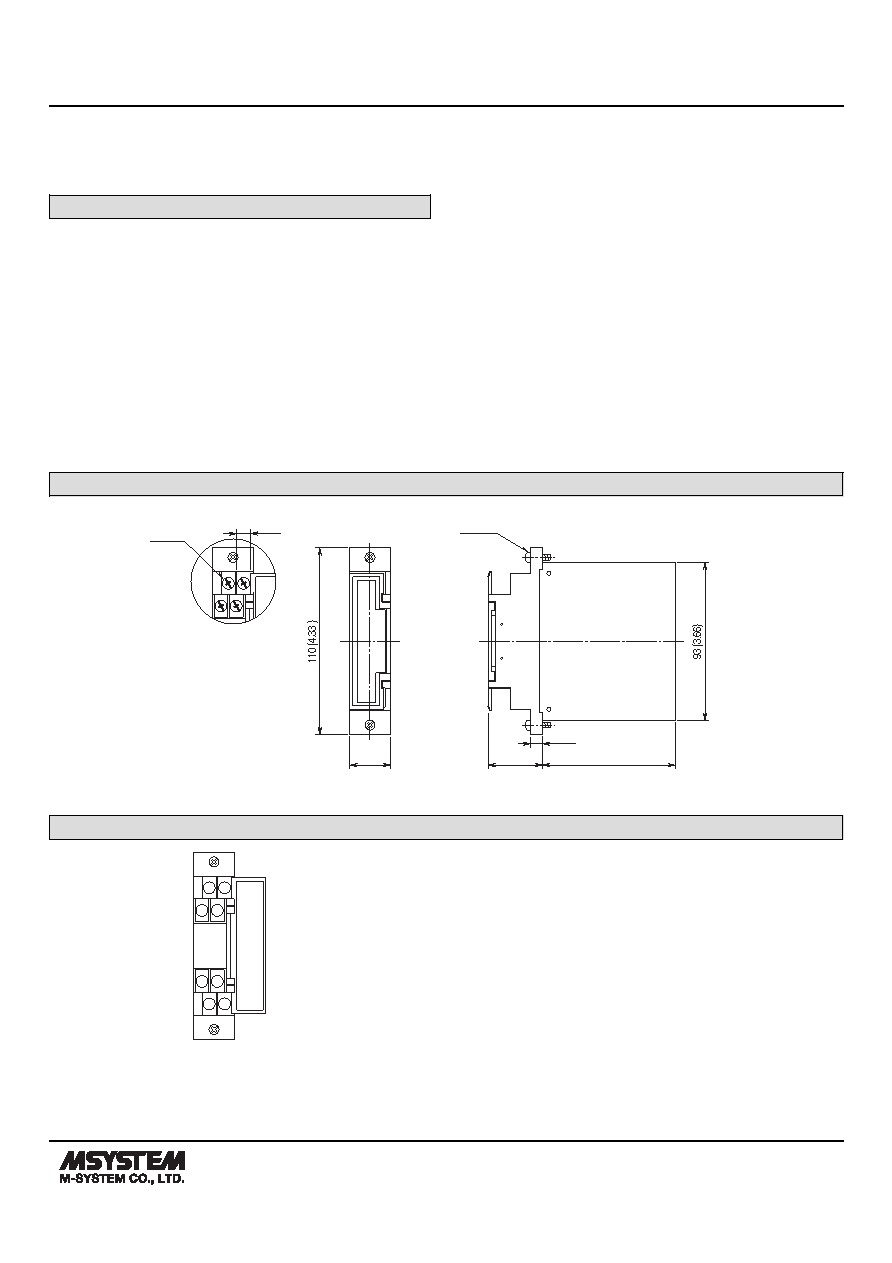

EXTERNAL DIMENSIONS unit: mm (inch)

24 (.94)

7 (.28)

78 (3.07)

32 (1.26)

8–M3.5

SCREW

7 (.28)

2–M3

SCREW

TERMINAL ASSIGNMENTS
