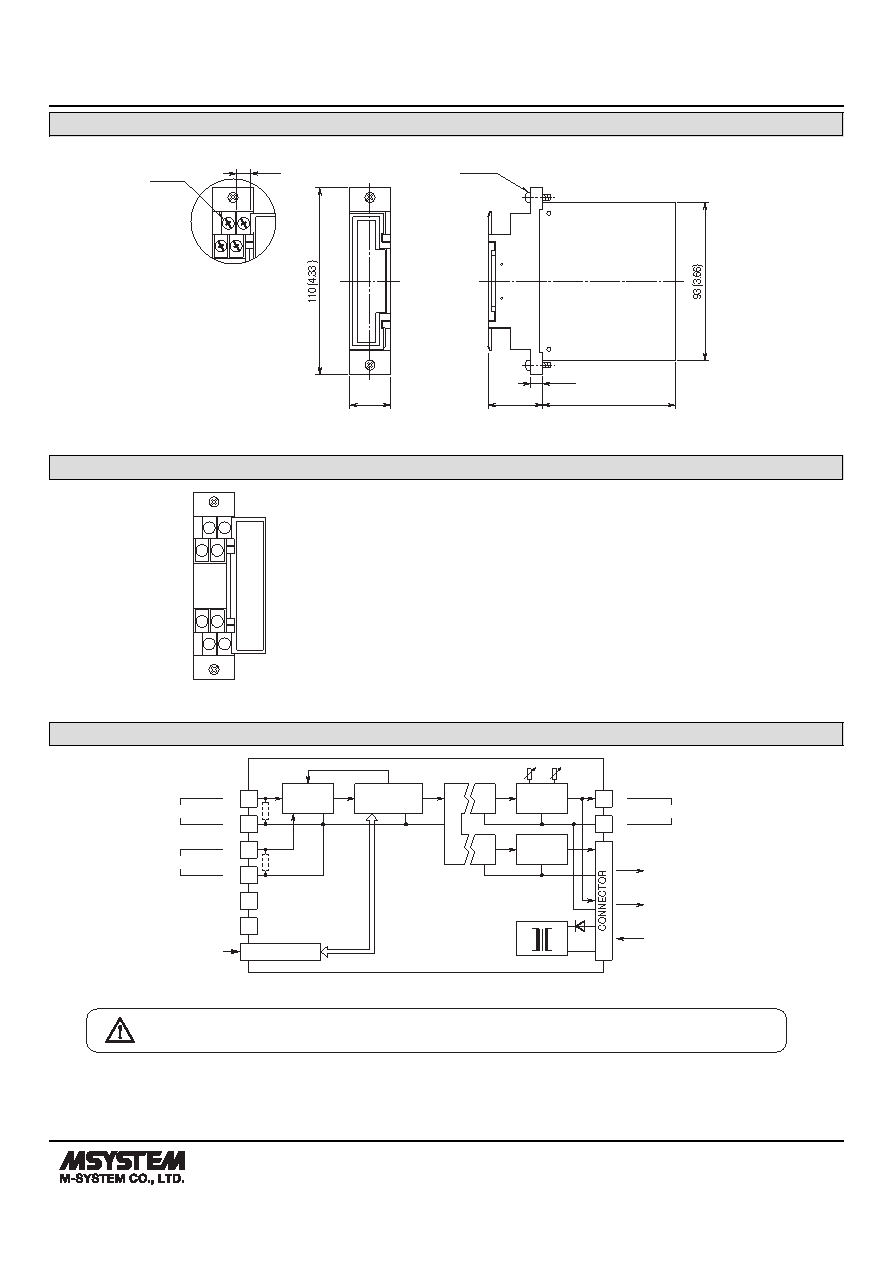

MODEL: 18JF
18JF SPECIFICATIONS
ES-1880 Rev.11 Page 3/3
http://www.m-system.co.jp/
EXTERNAL DIMENSIONS unit: mm (inch)
24 (.94)
7 (.28)
78 (3.07)
32 (1.26)
8–M3.5
SCREW
7 (.28)
2–M3
SCREW
TERMINAL ASSIGNMENTS
1
2
3
4
7
8
5
6
SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
+
–
+
–
Isolation
INPUT 1
1
Multiplexer
Output
Driver
OUTPUT 2
2
3
5
6
Digital
Computation
SERIAL TRANSMISSION LINE
S
Z
Output
Driver
OUTPUT 2
OUTPUT 1
POWER
4
7
8
+
–
INPUT 2
PU-2
x
MODULAR JACK
*Input shunt resistor incorporated for current input.
*
*
Specifications are subject to change without notice.
