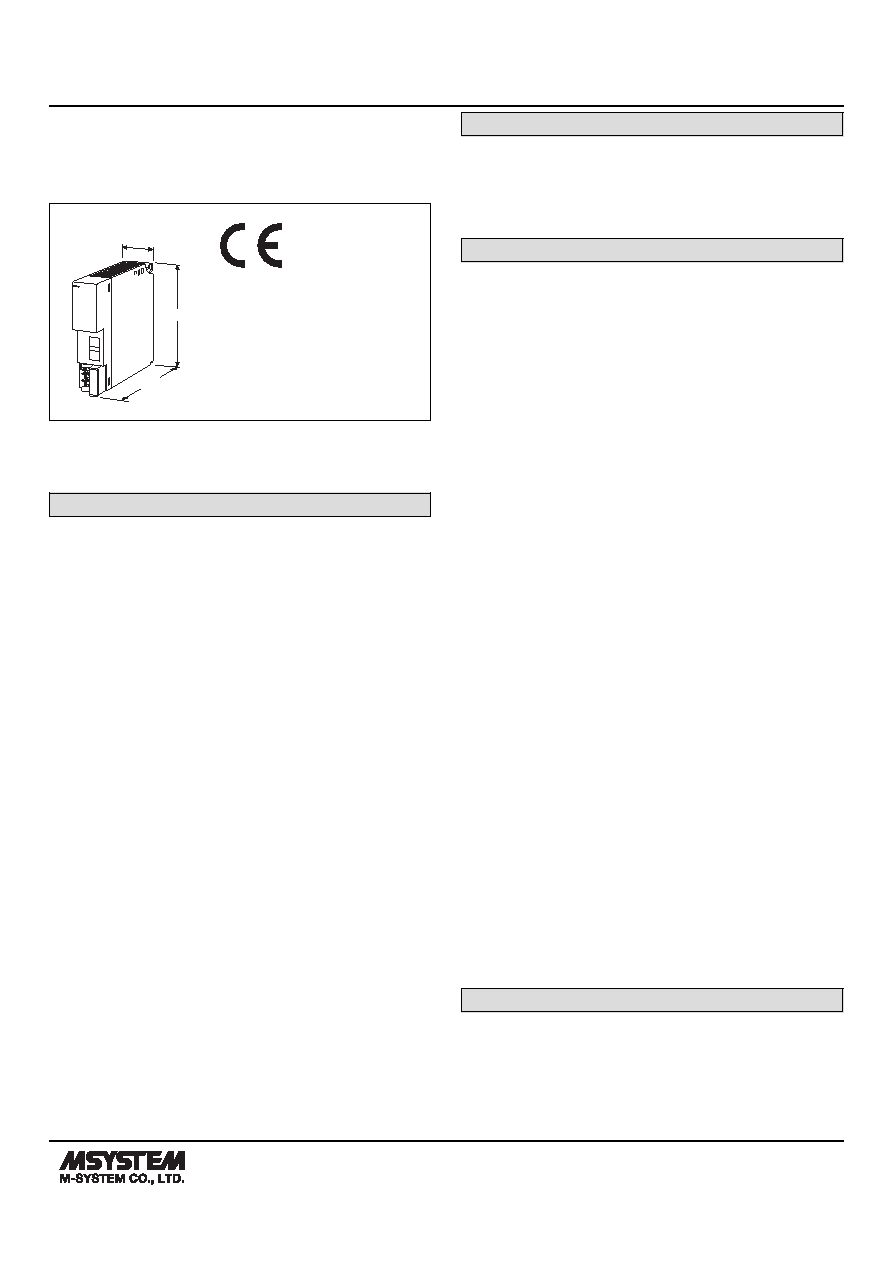

1 / 5 page ![]() MODEL: R3-NML3 R3-NML3 SPECIFICATIONS ES-8336 Rev.6 Page 1/5 https://www.m-system.co.jp/ Remote I/O R3 Series MECHATROLINK INTERFACE MODULE (MECHATROLINK-III) 27.5 [1.08] 130 [5.12] 109 [4.29] mm [inch] MODEL: R3–NML3-[1][2] ORDERING INFORMATION • Code number: R3-NML3-[1][2] Specify a code from below for each of [1] and [2]. (e.g. R3-NML3-N/CE/Q) • Specify the specification for option code /Q (e.g. /C01) [1] POWER INPUT N: No power supply AC Power K3: 100 – 120 V AC (Operational voltage range 85 - 132 V, 47 - 66 Hz) * (CE not available) L3: 200 – 240 V AC (Operational voltage range 170 - 264 V, 47 - 66 Hz) * (CE not available) DC Power R: 24 V DC (Operational voltage range 24 V ±10 %, ripple 10 %p-p max.) * * Not selectable for use with independent power modules or network modules with the internal power input options. [2] OPTIONS (multiple selections) Standards & Approvals blank: Without CE /CE: CE marking Other Options blank: none /Q: Option other than the above (specify the specification) SPECIFICATIONS OF OPTION: Q COATING (For the detail, refer to M-System's web site.) /C01: Silicone coating /C02: Polyurethane coating /C03: Rubber coating GENERAL SPECIFICATIONS Connection MECHATROLINK: MECHATROLINK connector Internal bus: Via the Installation Base (model: R3-BSx) Internal power: Via the Installation Base (model: R3- BSx) Power input, RUN contact output: M3 separable screw terminal (torque 0.5 N·m) Screw terminal: Nickel-plated steel Isolation: MECHATROLINK to internal bus or internal power to power supply to RUN contact output to FG Dual communication setting: Set with the side DIP switch Data allocation setting: Set with the side DIP switch RUN indicator: Bi-color (green/red) LED Green ON after correctly receiving CONNECT command; OFF after wire breakdown or correctly receiving DISCONNECT command; Red ON when receiving data (Function selected with DIP SW) ERR indicator: Bi-color (green/red) LED Green ON when receiving abnormal command; Green ON when communication cable broken; OFF when receiving normal command; Red ON when transmitting data; OFF at cable breakdown (Function selected with DIP SW) ■ RUN CONTACT OUTPUT RUN contact: Turns ON when the ERR INDICATOR is OFF (MECHATROLINK in normal communication). Rated load: 250 V AC @ 0.5 A (cos ø = 1) 30 V DC @ 0.5 A (resistive load) (Less than 50 V AC to conform with EU Directive) Maximum switching voltage: 250 V AC or 30 V DC Maximum switching power: 250 VA or 150 W Minimum load: 1 V DC @ 1 mA Mechanical life: 2 × 107 cycles (rate 300 cycles/min.) When driving an inductive load, external contact protection and noise quenching recommended. MECHATROLINK COMMUNICATION MECHATROLINK-III Baud rate: 100 Mbps Transmission distance: 6300 m max. Distance between stations: 100 m max. Transmission media: CAT5e STP Connector: TYCO AMP Industrial mini I/O connector |
