R7F4DH-1DAC32D-R Datasheet(PDF) 10 Page - M-System Co.,Ltd. |
|
|
|||||||||||||||||||||||||||||
R7F4DH-1DAC32D-R Datasheet(HTML) 10 Page - M-System Co.,Ltd. |
|
|

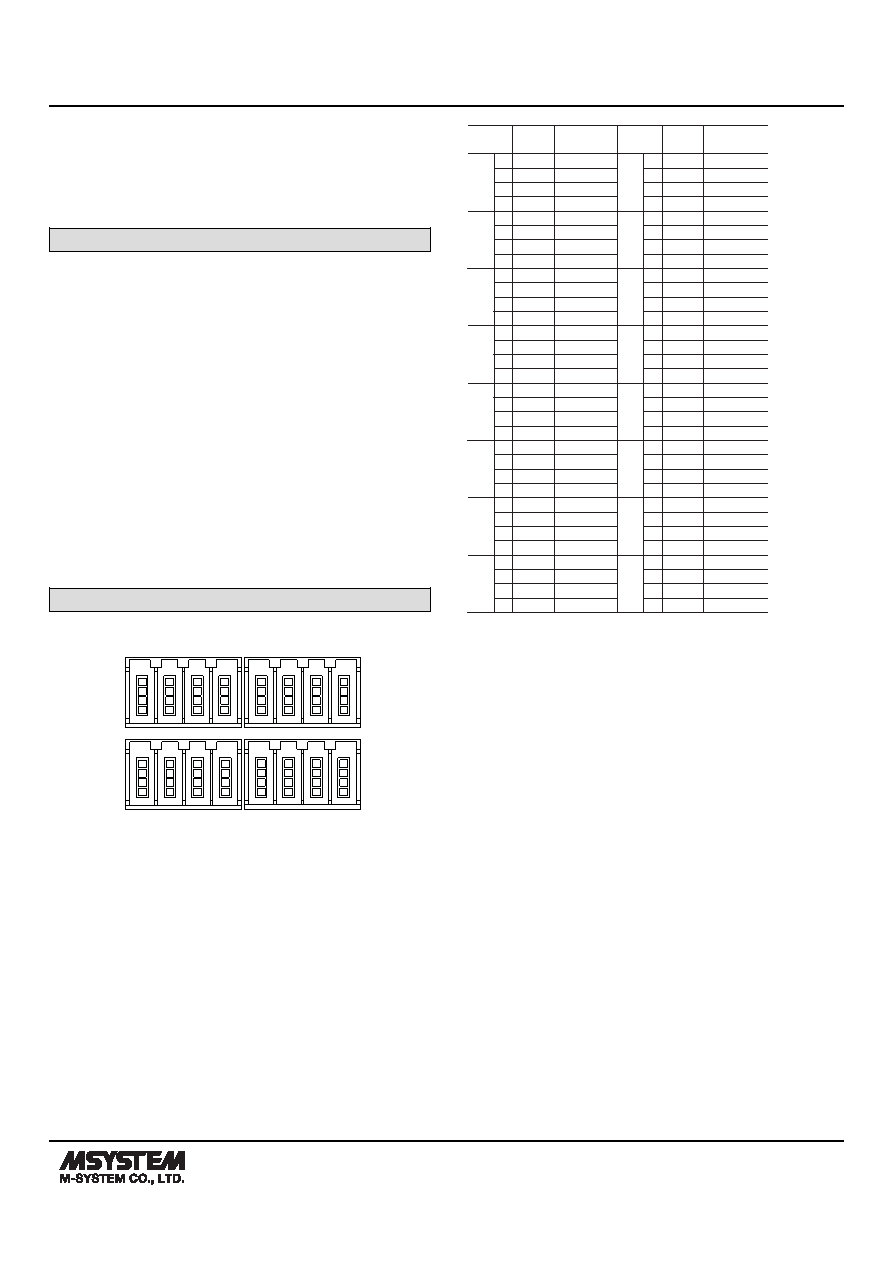

10 / 77 page  MODEL: R7F4DH R7F4DH SPECIFICATIONS ES-7799 Rev.7 Page 10/77 http://www.m-system.co.jp/ NPN DISCRETE INPUT MODULE, 16 points (e-CON connector) MODEL: R7F4DH–1–DA16A SPECIFICATIONS Common: Positive common (NPN) per 16 points Number of I/O: Input, 16 points Maximum inputs applicable at once: No limit (at 24 V DC) Input status indicator: LED turns ON with contact ON Isolation: Input or sensor excitation to HLS to power input to FE Data allocation: 1 Rated input voltage: 24 V DC ±10 %; ripple 5 %p-p max. ON voltage / current: ≥ 15 V DC (X0 through XF to +24 V) / ≥ 3.5 mA OFF voltage / current: ≤ 5 V DC (X0 through XF to +24 V) / ≤ 1 mA Input current: ≤ 5.5 mA per point at 24 V DC Input resistance: Approx. 4.4 kΩ ON delay: ≤ 0.5 msec. OFF delay: ≤ 0.5 msec. TERMINAL ASSIGNMENTS ■ Input Terminal 1 2 3 4 2 3 4 1 2 3 4 X0 X1 X2 X3 X4 X5 X6 X7 X8 X9 XA XB XC XD XE XF ID FUNCTION ID FUNCTION X0 1 +24V 24V DC X8 1 +24V 24V DC 2 NC Unused 2 NC Unused 3 GND 0V 3 GND 0V 4 X0 0 4 X8 8 X1 1 +24V 24V DC X9 1 +24V 24V DC 2 NC Unused 2 NC Unused 3 GND 0V 3 GND 0V 4 X1 1 4 X9 9 X2 1 +24V 24V DC XA 1 +24V 24V DC 2 NC Unused 2 NC Unused 3 GND 0V 3 GND 0V 4 X2 2 4 XA 10 X3 1 +24V 24V DC XB 1 +24V 24V DC 2 NC Unused 2 NC Unused 3 GND 0V 3 GND 0V 4 X3 3 4 XB 11 X4 1 +24V 24V DC XC 1 +24V 24V DC 2 NC Unused 2 NC Unused 3 GND 0V 3 GND 0V 4 X4 4 4 XC 12 X5 1 +24V 24V DC XD 1 +24V 24V DC 2 NC Unused 2 NC Unused 3 GND 0V 3 GND 0V 4 X5 5 4 XD 13 X6 1 +24V 24V DC XE 1 +24V 24V DC 2 NC Unused 2 NC Unused 3 GND 0V 3 GND 0V 4 X6 6 4 XE 14 X7 1 +24V 24V DC XF 1 +24V 24V DC 2 NC Unused 2 NC Unused 3 GND 0V 3 GND 0V 4 X7 7 4 XF 15 PIN No. PIN No. Input Input Input Input Input Input Input Input Input Input Input Input Input Input Input Input |
|
