MODEL: R7FN-YS2

R7FN-YS2 SPECIFICATIONS

ES-7808-E Rev.0 Page 5/5

http://www.m-system.co.jp/

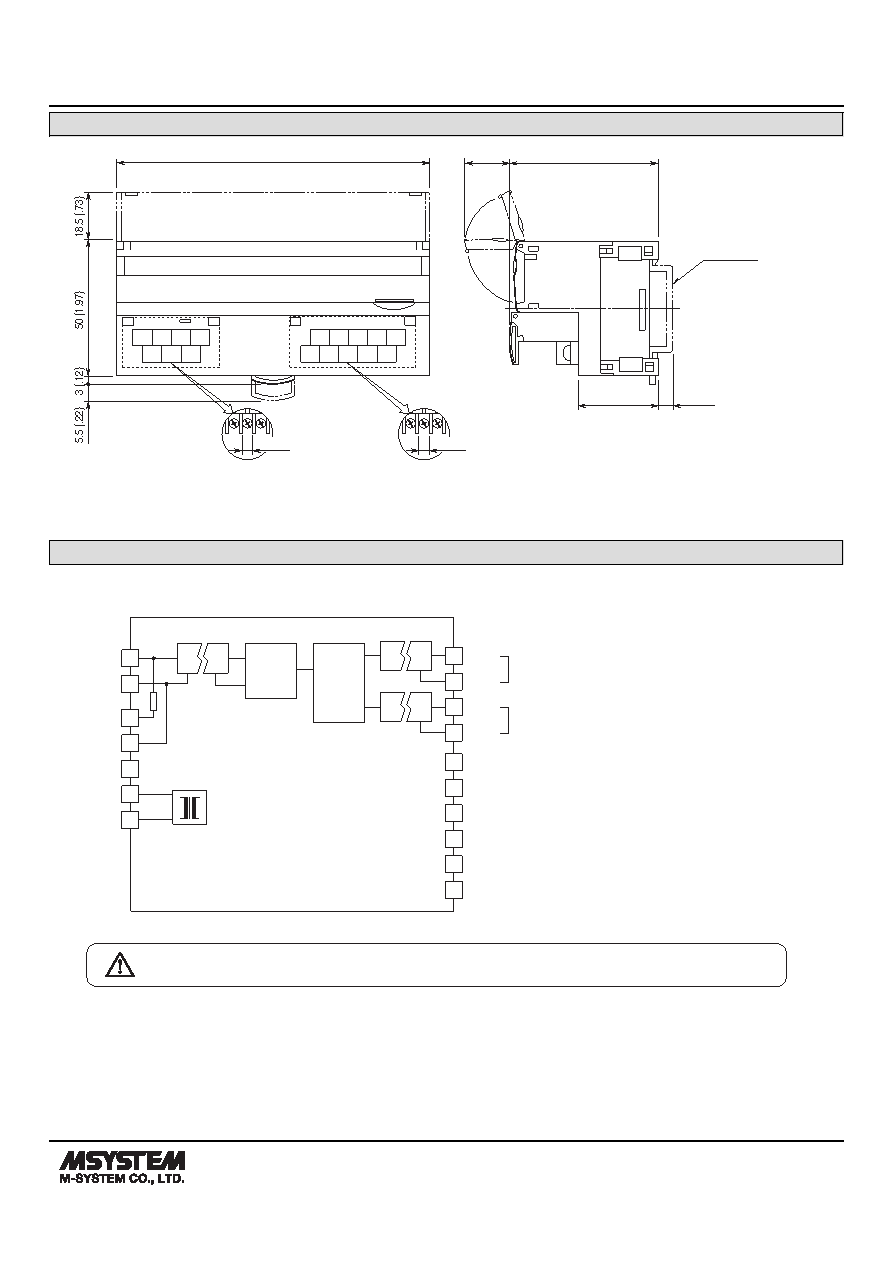

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

2

3

4

1

5

10

7

8

9

6

4

5

6

7

1

2

3

DIN RAIL

35mm wide

[5 (.20)]

30 (1.18)

54 (2.13)

17 (.66)

7–M3 SCREW

TERMINALS

for FLEX NETWORK, POWER

10–M3 SCREW

TERMINALS

for OUTPUT

115 (4.53)

6 (.24)

6 (.24)

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Note: In order to improve EMC performance, bond the FG terminal to ground.

Caution: FG terminal is NOT a protective conductor terminal.

Isolation

4

7

2

9

8

10

6

1

3

5

I0

COM0

I1

COM1

OUTPUT 0

OUTPUT 1

4

5

2

1

3

6

7

FG

24V DC

0V

JP–

JP+

TR–

TR+

Comm.

Circuit

Control

Circuit

Output Circuit

Specifications are subject to change without notice.
