Wire-wound Chip Inductors - Open

www.ctparts.com

CTLQ1206CF

Series

From 0.12µH to 100µH

SPECIFICATIONS

Please specify tolerance code when ordering.

CTLQ1206CF-4R7_

J = ±5%, K = ±10%, M = ±20%

*K or M only

L Test

SRF

DCR

Allowable

Part

Inductance

Freq.

Min.

Max.

Current

Number

(µH)

(MHz)

(MHz)

(W)

(mA)

CTLQ1206CF-R12M

0.12

1.0

250

0.112

970

CTLQ1206CF-R22M

0.22

1.0

250

0.140

850

CTLQ1206CF-R47M

0.47

1.0

180

0.210

700

CTLQ1206CF-1R0M

1.0

1.0

100

0.364

510

CTLQ1206CF-2R2M

2.2

1.0

50

0.533

430

CTLQ1206CF-4R7_*

4.7

1.0

31

0.845

340

CTLQ1206CF-100_

10

1.0

20

1.69

230

CTLQ1206CF-220_

22

1.0

14

3.90

160

CTLQ1206CF-470_

47

1.0

10

10.4

100

CTLQ1206CF-101_

100

1.0

7

15.6

80

Not Shown at Actual Size

CHARACTERISTICS

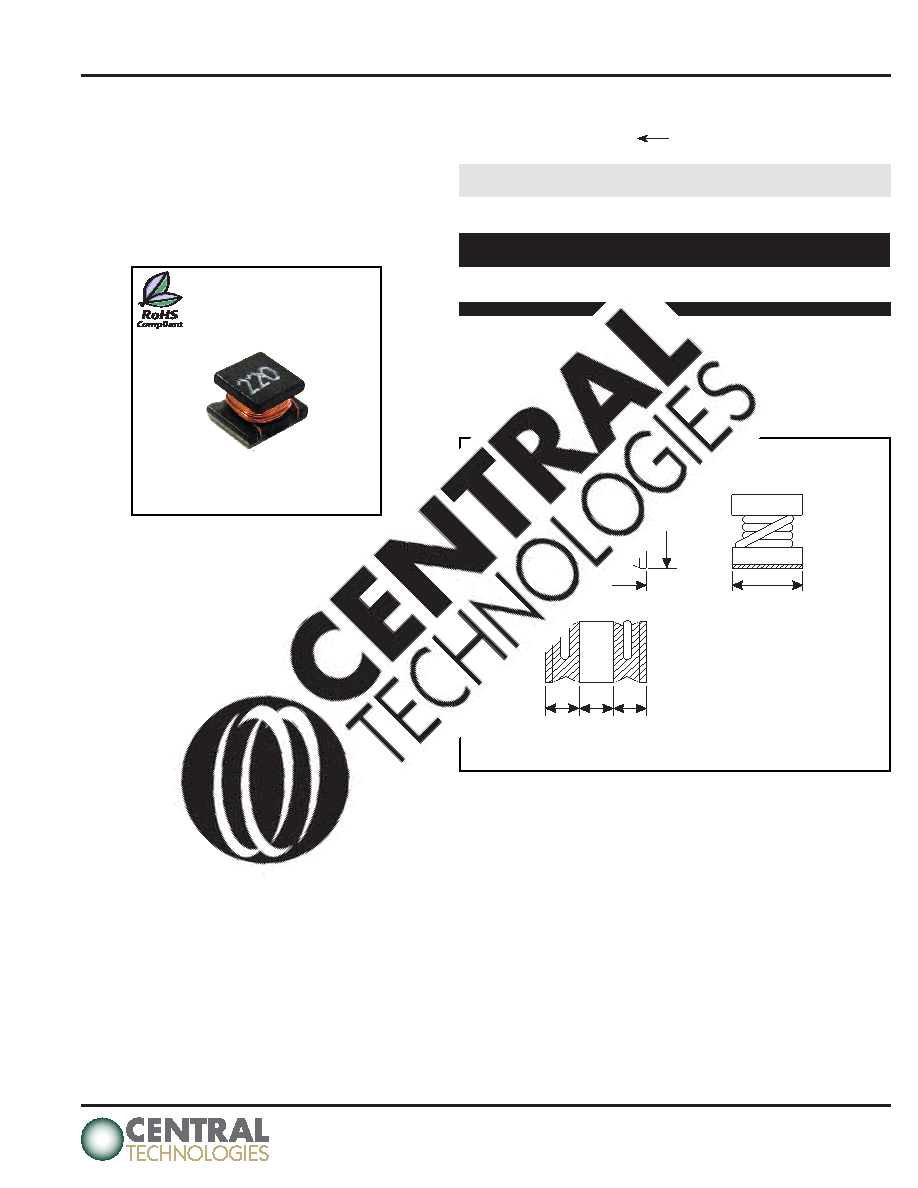

PHYSICAL DIMENSIONS

Description: SMD wire-wound chip inductors

Applications: Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature: -25°C to +85°C

Inductance Tolerance: J = ±5%, K = ±10% & M = ±20%

Packaging: Tape & Reel

Testing: Tested on a HP4285A @ specified frequency

Allowable Current: Self temperature rise shall be limited 35°C

max. Inductance drop 10% typ. at this rated current

Additional Information: Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

A

D

D

D

B

C

A

B

C

D

Min.

3.20±0.30

1.80±0.30

1.60±0.30

0.7

0.126±0.012

0.071±0.012

0.063±0.012

0.028

Size

mm

inches
