Power Inductors - Shielded

www.ctparts.com

CTLVC6045F

Series

From 1.0µH to 1000µH

SPECIFICATIONS

Please specify inductance tolerance code when ordering.

CTLVC6045F-1R0_

M = ±20%, N = ±30%

*Isat: DC current (A) that will cause L to drop approximately 30%.

**Irms: DC current (A) that will cause an approximate

ΔT of 40°C.

L Test

DCR

*Isat

**Irms

Part

Inductance

Freq.

±30%

Typ.(Max.)

Typ.(Max.)

Number

(µH)

(kHz)

(m

Ω)

(A)

(A)

CTLVC6045F-1R0_

1.0

100

12

12.2(10.98)

6.5(5.85)

CTLVC6045F-1R5_

1.5

100

15

10.4(9.36)

5.9(5.31)

CTLVC6045F-1R8_

1.8

100

17

9.6(8.64)

5.6(5.04)

CTLVC6045F-2R2_

2.2

100

18.4

8.8(7.92)

5.1(4.59)

CTLVC6045F-2R3_

2.3

100

19

8.8(7.92)

5.0(4.50)

CTLVC6045F-3R0_

3.0

100

22

7.8(7.02)

4.4(3.96)

CTLVC6045F-3R3_

3.3

100

24

7.5(6.75)

4.3(3.87)

CTLVC6045F-3R6_

3.6

100

24

7.5(6.75)

4.3(3.87)

CTLVC6045F-3R9_

3.9

100

26

7.0(6.30)

4.0(3.60)

CTLVC6045F-4R5_

4.5

100

31

6.7(6.03)

3.9(3.51)

CTLVC6045F-4R7_

4.7

100

31

6.7(6.03)

3.9(3.51)

CTLVC6045F-5R1_

5.1

100

33

6.0(5.40)

3.5(3.15)

CTLVC6045F-6R3_

6.3

100

40

5.5(4.95)

3.3(2.97)

CTLVC6045F-6R8_

6.8

100

43

5.3(4.77)

3.2(2.88)

CTLVC6045F-8R2_

8.2

100

53

4.6(4.10)

2.9(2.60)

CTLVC6045F-100_

10

100

57

4.5(4.05)

2.7(2.43)

CTLVC6045F-150_

15

100

80

3.4(3.06)

2.2(1.98)

CTLVC6045F-180_

18

100

100

3.1(2.79)

1.8(1.62)

CTLVC6045F-220_

22

100

125

3.0(2.70)

1.9(1.71)

CTLVC6045F-270_

27

100

160

2.5(2.25)

1.3(1.17)

CTLVC6045F-330_

33

100

165

2.3(2.07)

1.4(1.26)

CTLVC6045F-470_

47

100

245

1.9(1.71)

1.2(1.08)

CTLVC6045F-680_

68

100

330

1.6(1.44)

1.0(0.90)

CTLVC6045F-101_

100

100

500

1.3(1.17)

0.8(0.72)

CTLVC6045F-221_

220

100

1300

0.82(0.73)

0.38(0.34)

CTLVC6045F-331_

330

100

1800

0.7(0.63)

0.35(0.31)

CTLVC6045F-102_

1000

100

6000

0.4(0.36)

0.22(0.19)

Not Shown at Actual Size

CHARACTERISTICS

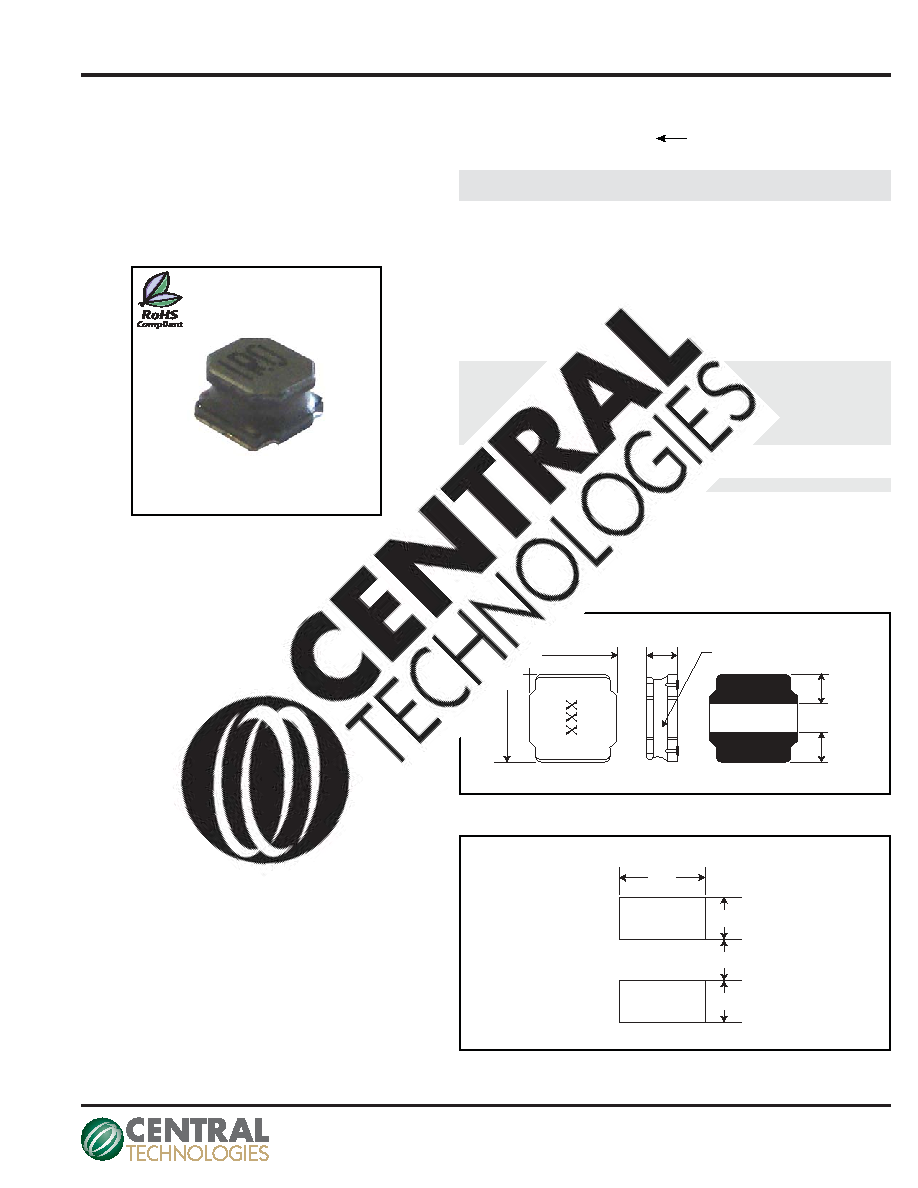

PHYSICAL DIMENSIONS

PAD LAYOUT

Description: SMD power inductors sealed with magnetic resin.

Applications: Smart phones, DSC, Tablet PC’s, DC/DC convert-

ers, etc.

Operating Temperature: -55°C to 125°C (including

self - temperature rise)

Inductance Tolerance: ±20%, ±30%

Testing: Inductance is tested on an HP4284A at 100kHz, 1V

Packaging: Tape & Reel.

Marking: Parts are marked with inductance code.

Additional Information: Additional electrical & physical

information available upon request.

Samples available. See website for ordering information.

A

BC

D

D

Magnetic Shielding

5.7

2.0

2.4

2.0

Size

mm

inches

CTLVC6045F-100_

10

100

57

4.5(4.05)

2.7(2.43)

CTLVC6045F-150_

15

100

80

3.4(3.06)

2.2(1.98)

CTLVC6045F-180_

18

100

100

3.1(2.79)

1.8(1.62)

CTLVC6045F-220_

22

100

125

3.0(2.70)

1.9(1.71)

CTLVC6045F-270_

27

100

160

2.5(2.25)

1.3(1.17)

CTLVC6045F-330_

33

100

165

2.3(2.07)

1.4(1.26)

CTLVC6045F-470_

47

100

245

1.9(1.71)

1.2(1.08)

CTLVC6045F-680_

68

100

330

1.6(1.44)

1.0(0.90)

Unit: mm

A

B

C

D

6.0±0.2

6.0±0.2

1.8±0.3

0.236±0.008

0.236±0.008

0.071±0.012

CTLVC6045F-102_

1000

100

6000

0.4(0.36)

0.22(0.19)
